Installing the QuickServer

3
3.1 RS-485
3.1.1

RS-485 Connection R2 Port

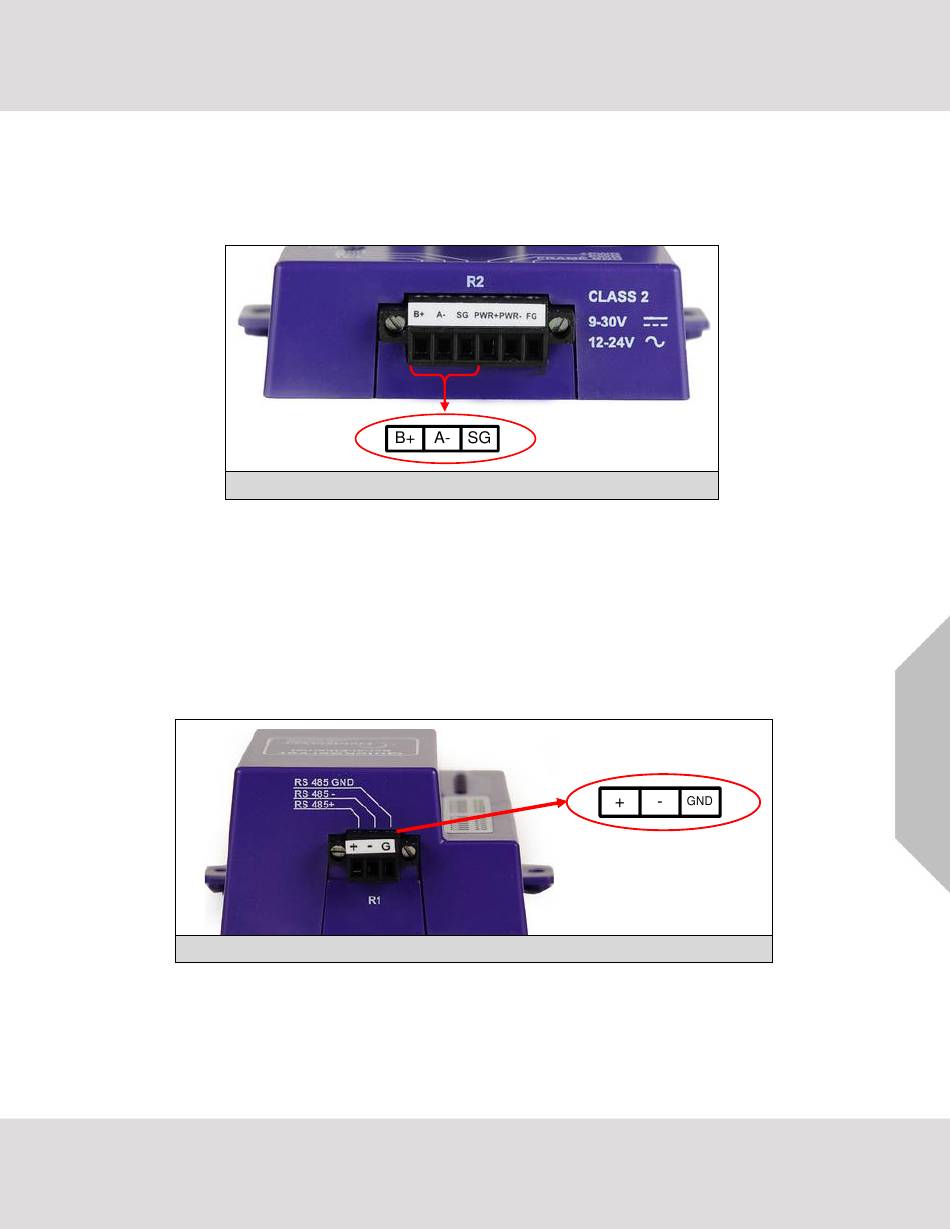

Connect to the 3 pins on the left-hand-side of the 6-pin connector as shown.
The following Baud Rates are supported on the R2 Port:
4800, 9600, 19200, 38400, 57600, 115200
For connection details to RS-232 or RS-422, refer to Section 8.1.
3.1.2

RS-485 Connection R1 Port

NOTE: The following only applies to non-LonWorks QuickServers with an RS-435 R1 port.
Connect to the 3-pin connector as shown.
The following Baud Rates are supported on the R1 Port:
110, 300, 600, 1200, 2400, 4800, 9600, 19200, 20833, 28800, 38400, 57600, 76800, 115200

Figure 10: RS-485 R2 Connection Port

Figure 11: RS-485 R1 Connection Port
