6.5

Test and Commission the QuickServer

•
Connect the QuickServer to the third party device(s), and test the application.
•
From the landing page of the FS-GUI click on "View" in the navigation tree, then "Connections" to
see the number of messages on each protocol.
NOTE: For troubleshooting assistance refer to Section 9, or any of the troubleshooting
appendices in the related driver supplements and configuration manual. MSA Safety also
offers a technical support on the MSA Safety website, which contains a significant number
of resources and documentation that may be of assistance.
6.5.1

Accessing the Grid

NOTE: The FieldServer Manager tab
the Grid, MSA Safety's device cloud solution for IIoT. The Grid enables secure remote
connection to field devices through a FieldServer and its local applications for
configuration, management, maintenance. For more information about the Grid, refer to
the MSA Grid Start-up

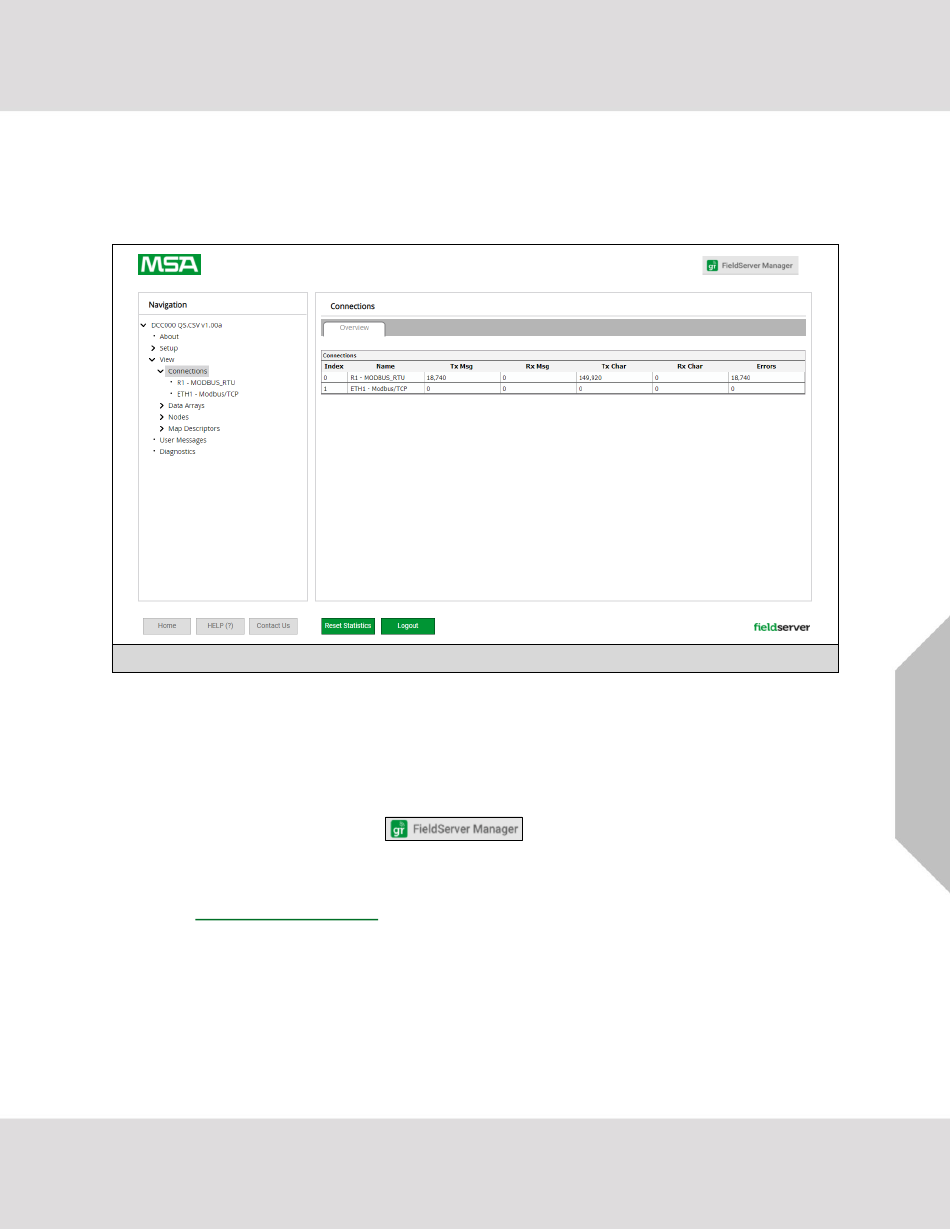

Figure 31: FS-GUI Connections Screen

Guide.
QuickServer Start-up Guide
Configuring the Gateway
(see Figure 31) allows users to connect to
