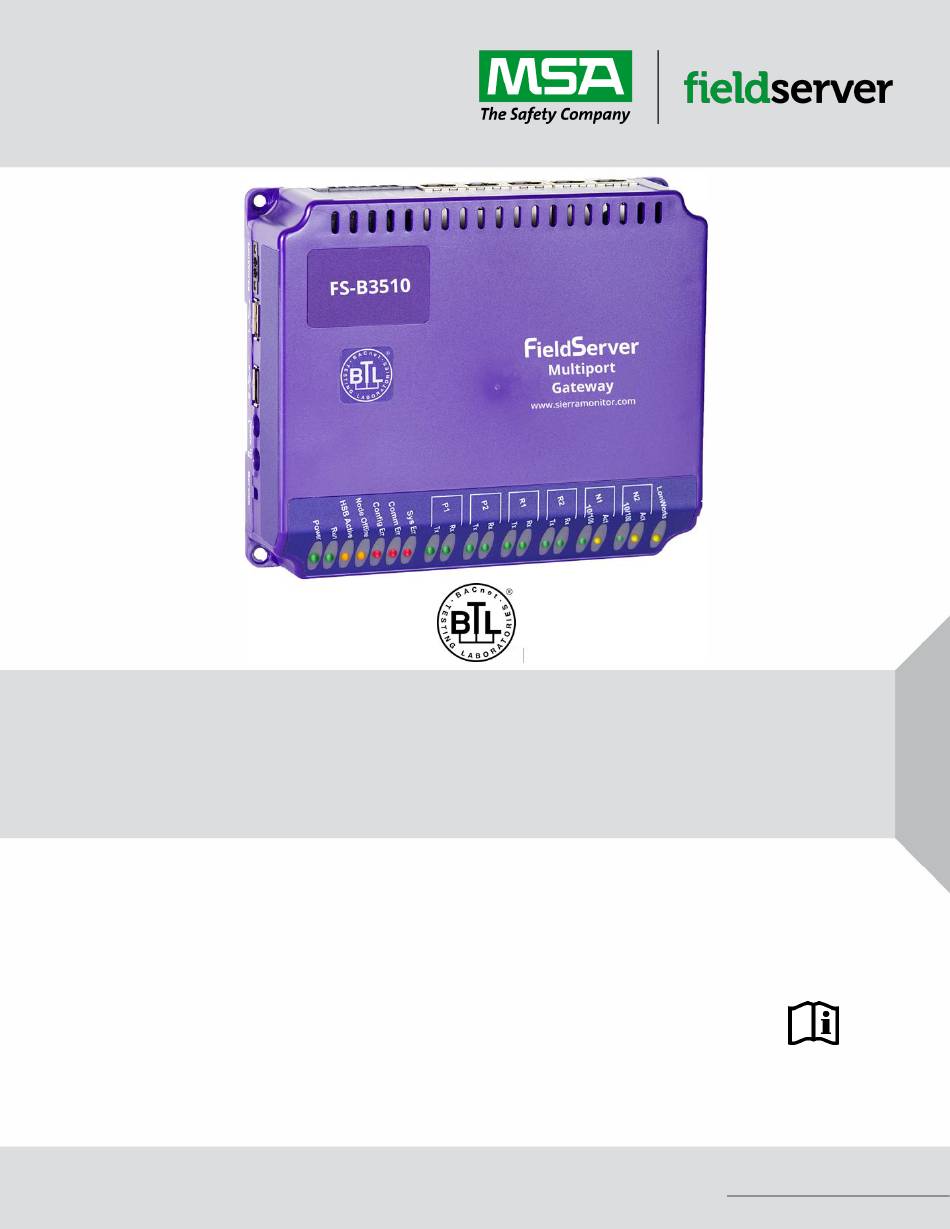

- Page 1 Start-up Guide FieldServer FS-B35XX Series APPLICABILITY & EFFECTIVITY Effective for all systems manufactured after January 2021. Document Revision: 3.A T18602 FS-B35XX Series Start-up Guide MSAsafety.com...
- Page 2 MSA Safety 1991 Tarob Court Milpitas, CA 95035 Website: www.MSAsafety.com U.S. Support Information: +1 408 964-4443 +1 800 727-4377 Email: smc-support@msasafety.com EMEA Support Information: +31 33 808 0590 Email: smc-support.emea@msasafety.com FS-B35XX Series Start-up Guide...
-
Page 3: Table Of Contents
Table of Contents FieldServer FS-B35 Series Description ..................5 Certifications ..........................5 BTL Mark – BACnet Testing Laboratory .................. 5 1.1.1 1.1.2 LonMark Certification ....................... 5 Equipment Setup ..........................6 Supplied Equipment ......................... 6 Mounting ........................... 7 Physical Dimensions ........................ 8 Wiring ............................ - Page 4 List of Figures Figure 1: FieldServer FS-B35XX Series Showing Din Mounting Option ............7 Figure 2: FieldServer FS-B35XX Series Showing Dimensions ..............8 Figure 3: RS-232 Connection Ports ......................9 Figure 4: RS-435 Connection Ports ......................9 Figure 5: Ethernet Connection Ports ......................9 Figure 6: FieldServer Toolbox ........................
-
Page 5: Fieldserver Fs-B35 Series Description
Description FieldServer FS-B35 Series Description The FieldServer FS-B35 Series is a high performance, cost effective Building and Industrial Automation multi-protocol gateway providing protocol translation between serial, Ethernet, and LonWorks devices and networks. NOTE: For troubleshooting assistance refer to Section 6, or any of the troubleshooting appendices in the related driver supplements. -
Page 6: Equipment Setup
FieldServer. • All instruction manuals, driver manuals, configuration manuals and support utilities are available on the USB drive provided in the optional accessory kit, or on the MSA Safety website. USB Flash Drive loaded with: FS-B35XX Series Start-up Guide... -
Page 7: Mounting
Equipment Setup Mounting The following mounting options are available: • Wall or panel. • Free standing or table. • DIN rail (Part # FS-8915-30) - not included. Figure 1: FieldServer FS-B35XX Series Showing Din Mounting Option NOTE: Install only as instructed, failure to follow the installation guidelines or using screws without the DIN rail mounting bracket could result in permanent damage to the product. -
Page 8: Physical Dimensions
Equipment Setup Physical Dimensions Figure 2: FieldServer FS-B35XX Series Showing Dimensions Wiring The power socket is a “screw terminal” type. It is recommended to use of the power supply sent with the unit. If an alternative power supply is desired, select an external power supply that has been certified for safety for the correct destination country and an output rating that is considered acceptable. -
Page 9: Connecting To The Device
Installation Connecting to the Device RS-232 Connection Connect a RJ-45 cable (A) directly between Port P1/Port P2 and the remote RS-232 device. If using a custom-built cable, make sure that the pinout on the FieldServer side of the cable is limited to the use of pins 2(TX), 3(RX) and 5(GND). -
Page 10: Ethernet Port Behavior (N1 & N2)
Installation 3.3.1 Ethernet Port Behavior (N1 & N2) The N1 and N2 Ethernet ports share an Ethernet stack. Therefore, the IP addresses of N1 and N2 must be on separate subnets and must be connected to separate networks. There is only 1 Gateway IP Address in the FS-B35XX. This means that when using both N1 and N2 Ethernet ports simultaneously, only 1 Ethernet port can connect to a larger network through the Gateway IP Address while the other is limited to a local network. -
Page 11: Operation
PC and FieldServer or the local PC is connected to the same subnet as the FieldServer. • Ensure that FieldServer Toolbox is loaded onto the local PC. Otherwise, download the FieldServer-Toolbox.zip via the MSA Safety website. • Extract the executable file and complete the installation. -
Page 12: Assign Network Settings For The Fieldserver
Figure 7) allows users to connect to the SMC Cloud, MSA Safety’s device cloud solution for IIoT. The SMC Cloud enables secure remote connection to field devices through a FieldServer and its local applications for configuration, management, maintenance. For more information about the SMC Cloud,... -
Page 13: Configuring The Fieldserver
Configuring the Gateway Configuring the FieldServer Retrieve the Sample Configuration File The configuration of the FieldServer is provided to the FieldServer’s operating system via a comma- delimited file called “CONFIG.CSV”. If a custom configuration was ordered, the FieldServer will be programmed with the relevant device registers in the Config.csv file for the first time start-up. -
Page 14: Load The Updated Configuration File
Configuring the Gateway Load the Updated Configuration File 5.3.1 Using the FS-GUI to Load a Configuration File • In the main menu of the FS-GUI screen, click “Setup”, then “File Transfer” and finally “Update”. • Browse and select the .csv file, open, then click “Submit”. Figure 9: FS-GUI Loading Files •... -
Page 15: Retrieve The Configuration File For Modification Or Backup
Configuring the Gateway 5.3.2 Retrieve the Configuration File for Modification or Backup To get a copy of the configuration file for modifying or backing up a configuration on a local computer, do the following: • In the main menu of the FS-GUI screen, click “Setup”, then “File Transfer”. Figure 10: Retrieve Configuration File •... -
Page 16: Test And Commission The Fieldserver
MSA Safety also offers a technical support page on the MSA Safety website, which contains a significant number of resources and the latest versions of documentation that may be of assistance. -
Page 17: Troubleshooting
Troubleshooting Troubleshooting Communicating with the FieldServer O ver the Network • Confirm that the network cabling is correct. • Confirm that the computer network card is operational and correctly configured. • Confirm that there is an Ethernet adapter installed in the software configuration, and that it is configured to run the TCP/IP protocol. -
Page 18: Take A Diagnostic Capture
Newer versions may be available on the MSA Safety website. • Ensure that FieldServer Toolbox is loaded onto the local PC. Otherwise, download the FieldServer-Toolbox.zip via the MSA Safety website. • Extract the executable file and complete the installation. •... - Page 19 Troubleshooting Ensure “Full Diagnostic" is selected (this is the default) NOTE: If desired, the default capture period can be changed. Click on the Start Diagnostic button Wait for the capture period to finish and the Diagnostic Test Complete window will appear •...
-
Page 20: Securing Fieldserver With Password
Troubleshooting Securing FieldServer with Password Access to the FieldServer can be restricted by enabling a password on the FS-GUI Passwords page – click Setup and then Passwords in the navigation panel. There are 2 access levels defined by 2 account names: Admin and User. -
Page 21: Led Functions
Troubleshooting LED Functions 6.4.1 LED Identification and Function Light Description Power The power light should show steady green at all times when the FieldServer is powered. The run light indicates that the FieldServer firmware is running. It should flash green once per second once the FieldServer has booted up. -
Page 22: Led Interpretation
Troubleshooting 6.4.2 LED Interpretation Config Node Active Description Active Offline Indicating Power. FLASH One of the configured nodes FLASH is offline. FieldServer is active in a Hot FLASH Standby configuration. System Error. Contact FLASH support. RELEASE DCC running. FLASH Configuration error. FLASH Demo Mode. -
Page 23: Additional Information
Additional Information Additional Information Supplied Connector Kit (FS-8915-11) The following connector is supplied to facilitate RS-232 communications on the RJ-45 RS-232 port. The table in the diagram shows the functions applied to each of the RJ-45 pins by the FieldServer to assist in determination of the required pinout configuration for connection to the third party device. -
Page 24: Specifications
Additional Information Specifications FS-B35XX Series 2 x 10/100 BaseT Ethernet connectors (auto sensing) with ESD Protection: N1, N2. Ethernet ports are not networked together. 2 x RJ45 RS-232 connectors: P1, P2 – both galvanically isolated with ESD protection. 1 x RJ45 RS-232 System port: Sys – For FieldServer diagnostic use only. 2 x RS-485 Serial connectors: R1, R2 –... -
Page 25: Limited 2 Year Warranty
MSA Safety warrants its products to be free from defects in workmanship or material under normal use and service for two years after date of shipment. MSA Safety will repair or replace any equipment found to be defective during the warranty period. Final determination of the nature and responsibility for defective or damaged equipment will be made by MSA Safety personnel.
