Operation, cont'd

Using presets

The current configuration (configuration 0) can be saved as a preset in any one
of 32 preset memory addresses. All 32 presets are assigned to the input buttons
and output buttons and are available to be either saved or retrieved from the
front panel. When a preset is retrieved from memory, it becomes the current
configuration.
N •
Input
buttons
Input
buttons
Output
buttons

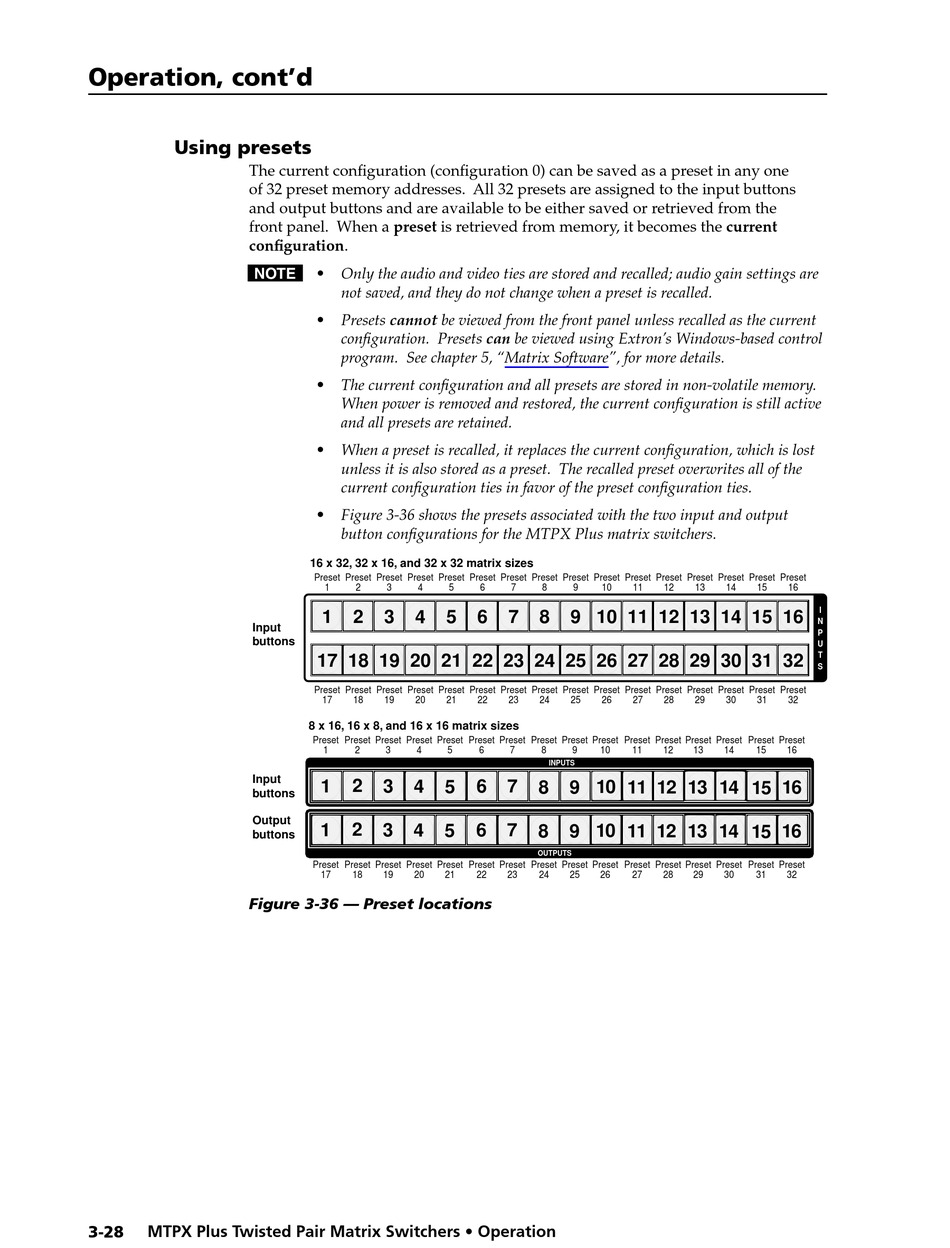

Figure 3-36 — Preset locations
3-28 MTPX Plus Twisted Pair Matrix Switchers • Operation
Only the audio and video ties are stored and recalled; audio gain settings are
not saved, and they do not change when a preset is recalled.
• Presets cannot be viewed from the front panel unless recalled as the current
configuration. Presets can be viewed using Extron's Windows-based control
program. See chapter 5, "Matrix Software", for more details.
• The current configuration and all presets are stored in non-volatile memory.
When power is removed and restored, the current configuration is still active
and all presets are retained.
• When a preset is recalled, it replaces the current configuration, which is lost
unless it is also stored as a preset. The recalled preset overwrites all of the
current configuration ties in favor of the preset configuration ties.
• Figure 3-36 shows the presets associated with the two input and output
button configurations for the MTPX Plus matrix switchers.
16 x 32, 32 x 16, and 32 x 32 matrix sizes
Preset Preset Preset Preset Preset Preset
1 2 3 4 5 6
1 2 3 4 5 6
17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
Preset Preset Preset Preset Preset Preset
17 18 19 20 21 22
8 x 16, 16 x 8, and 16 x 16 matrix sizes
Preset Preset Preset Preset Preset Preset
1 2 3 4 5 6
1 2 3 4 5 6
1 2 3 4 5 6
Preset Preset Preset Preset Preset Preset
17 18 19 20 21 22
Preset Preset Preset Preset Preset Preset
7 8 9 10 11 12
7 8 9 10 11 12 13 14 15 16
Preset Preset Preset Preset Preset Preset
23 24 25 26 27 28
Preset Preset Preset Preset Preset Preset
7 8 9 10 11 12
INPUTS
7
8 9 10 11 12
7
8 9 10 11 12
OUTPUTS
Preset Preset Preset Preset Preset Preset
23 24 25 26 27 28
Preset Preset Preset Preset
13 14 15 16
I
N
P
U
T
S
Preset Preset Preset Preset
29 30 31 32
Preset Preset Preset Preset
13 14 15 16
13 14 15 16
13 14 15 16
Preset Preset Preset Preset
29 30 31 32
