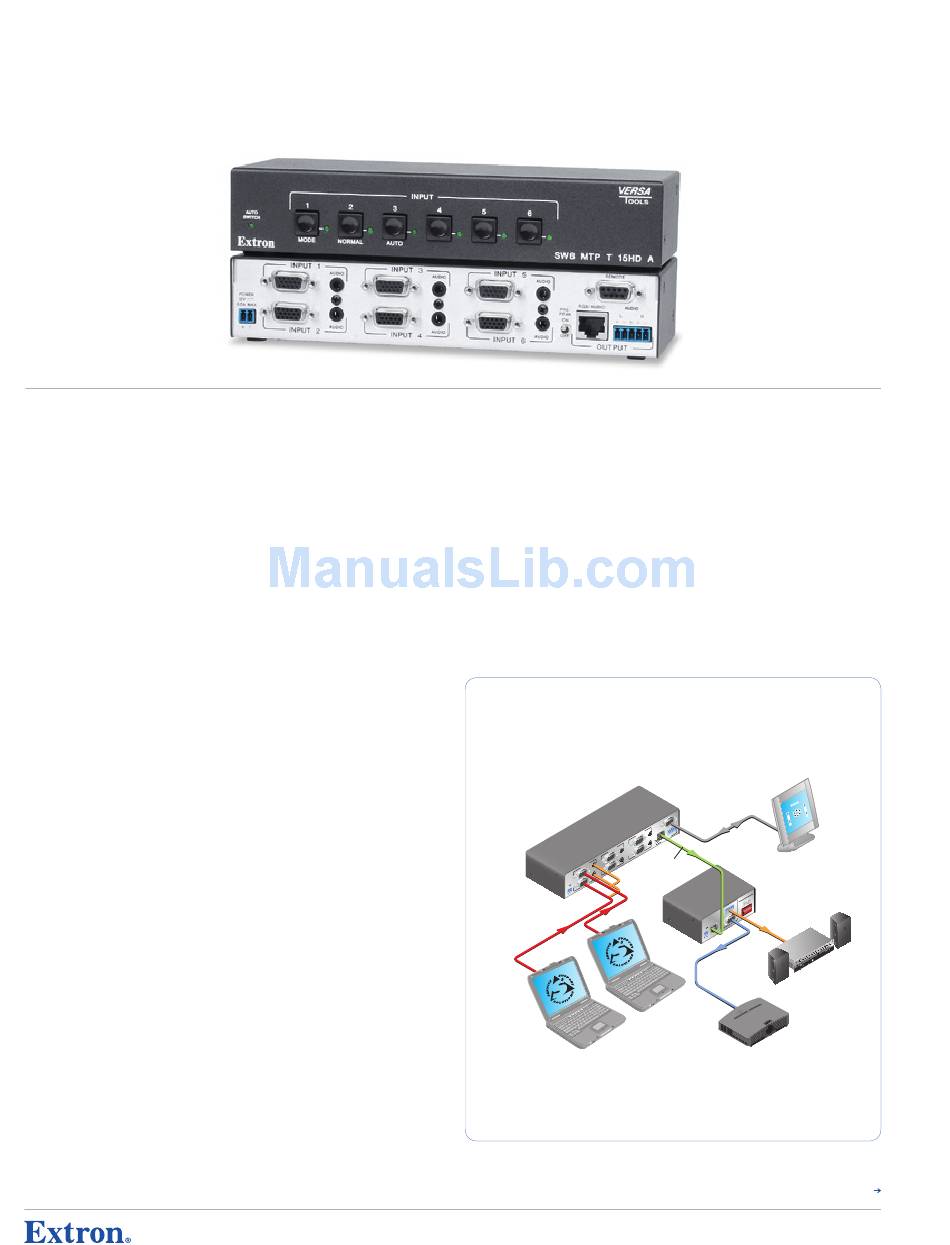

Extron electronics SW MTP T 15HD A Series Specification Sheet

SW MTP T 15HD A Series
Two, Four, and Six Input VGA and Audio Switchers with Integrated MTP - Mini Twisted Pair Transmitter

coMMon FeATures

Outputs: Female RJ-45 connector for A/V UTP signal, captive screw connector
•
for local audio output
Transmits high resolution video and summed mono audio signals to
•
MTP RL 15HD A, MTP RL 15HD A SEQ, or MTP U Series receiver
• Compatible with high resolution computer-video signals up to 1600x1200
Supports RGBHV, RGBS, RGsB, component video, S-video and composite video
•
Compatible with HDTV component video, bi-level or tri-level sync
•
Pre-peaking circuit for optimizing video signal on long cable runs
•
• Local audio output on 3.5mm captive screw connecotrs
Autoswitching mode
•
RS-232 and contact closure control, female 9-pin D connector
•
Rack-mountable, 1U, half rack width metal enclosure
•
Rack, under-desk, and projector-mountable
•
LED power indicator
•
External universal power supply included, part # 70-055-01 — Provides worldwide
•
power compatibility.
descriPTion
The Extron SW MTP 15HD A Series is a versatile family of switchers for selecting and
transmitting high resolution computer-video and audio signals to presentation displays over a
single UTP - unshielded twisted pair cable. The SW2 MTP T 15HD A, SW4 MTP T 15HD A, and
SW6 MTP T 15HD A are two, four and six input, one output switchers that transmit RGBHV, RGBS,
RGsB, HDTV and audio signals to a compatible MTP R 15HD A receiver. The SW MTP 15HD A
series of switchers can be used with Extron Enhanced Skew-Free A/V UTP cable or any CAT 5,
5e, or 6 data grade twisted pair cable for point-to-point cable runs of 600 feet (185 meters) or
more with XGA signals, and 450 feet (135 meters) or more with UXGA signals.
Each model accepts two, four, or six computer video and audio inputs on female 15-pin HD
connectors and 3.5 mm stereo audio jacks. The switcher transmits the selected computer
video and summed mono audio signal to a compatible twisted pair receiver. Also, the switcher
features a second audio output from a 3.5 mm captive screw connector for sending a balanced
or unbalanced line level stereo audio signal to a local amplifier, recording device, or video
conferencing codec.
Each switcher can be controlled using the front panel or remotely via contact closure or RS-232
signals. The dual-function remote control feature allows for numerous installation and control
options. For example, the switcher can be installed in a secure location, such as an equipment
rack or cabinet, and the control of the switcher can be managed using the optional Extron
IR 102 Universal Remote Control Kit, KP 6 Keypad Remote Control, or IP Link control interface
to create cost-effective solutions with maximum functionality.
92
usa West usa West
+1.714.491.1500 / +800.633.9876 +1.714.491.1500 / +800.633.9876
+1.714.491.1517 FAX +1.714.491.1517 FAX
Using the autoswitching feature, the switcher can be set to switch automatically to the active
source. For example, a number of wall plate receptacles can be installed around a room, each
routed to a different input of the switcher. When an active computer-video source is connected
to the wall plate, the switcher automatically selects that input. When two or more sources are
detected at the same time the highest numbered input is automatically selected. The autoswitch
function can be enabled or disabled via front panel buttons.
The SW MTP 15HD A Series of switchers are designed for easy integration into new and existing
A/V environments. The entire family of Extron MTP 15HD products sets the price/performance
standard for audio/video twisted pair technology. The MTP 15HD Series is a complete twisted
pair system including transmitters, receivers, and switchers, providing the ability to send, route,
and distribute high resolution video, audio, and control signals. The SW MTP Series is ideal for
systems where high resolution video signals must be transmitted long distances to a display,
where conduit space is limited, or for systems where cabling might be exposed.
Extron
SW6 MTP T 15HD A
Switcher
T 5
P U
IN
T 3
P U
IN T 6
P U
IN
T 1
P U
IN T 4
P U
IN
W E R T 2
P O P U
V M A X
12 IN
0. 2A
Laptop
usa east usa east
+1.919.863.1794 / +800.633.9876 +1.919.863.1794 / +800.633.9876
+1.919.863.1797 FAX +1.919.863.1797 FAX
M T P - M i n i T w i s T e d P a i r s e r i e s
T E
M O
R E
D IO
A U R
IO L
U D
B /A
R G
E -
P R
A K
P E U T
O N T P
O U
O FF
Control System
UTP Cable
(CAT 5, 5e, 6)
Extron
MTP R 15HD A
A Receiver
H D
1 5
R
T P
M
O
DI
AU 2
O
M ON
1
ON 6
5
4
2 3
1
T U T
P U
T P
IN O U
R
W E
P O
V M AX
12
.5 A
AUDIO
CH 2
CH 1
T
PROTEC CLIP
RS-232 NORM SIGNAL
PANEL UT
FRONT LOCKO
Sound System
Laptop
Projector
www.extron.com www.extron.com
© 2008 Extron Electronics. All rights reserved. © 2008 Extron Electronics. All rights reserved.
Pricing and specifications may change without notice. Pricing and specifications may change without notice.
APA IER 754
POWER AMPLIF
Continued
