Ethernet Connection

Ethernet Link
The rear panel Ethernet connector on the MTPX Plus
switcher can be connected to an Ethernet LAN or WAN.
This connection makes SIS control of the switcher possible
using a computer connected to the same LAN.
Ethernet connection
The Ethernet cable can be terminated as a straight-through cable or a crossover
cable and must be properly terminated for your application (figure A-1).
•
•

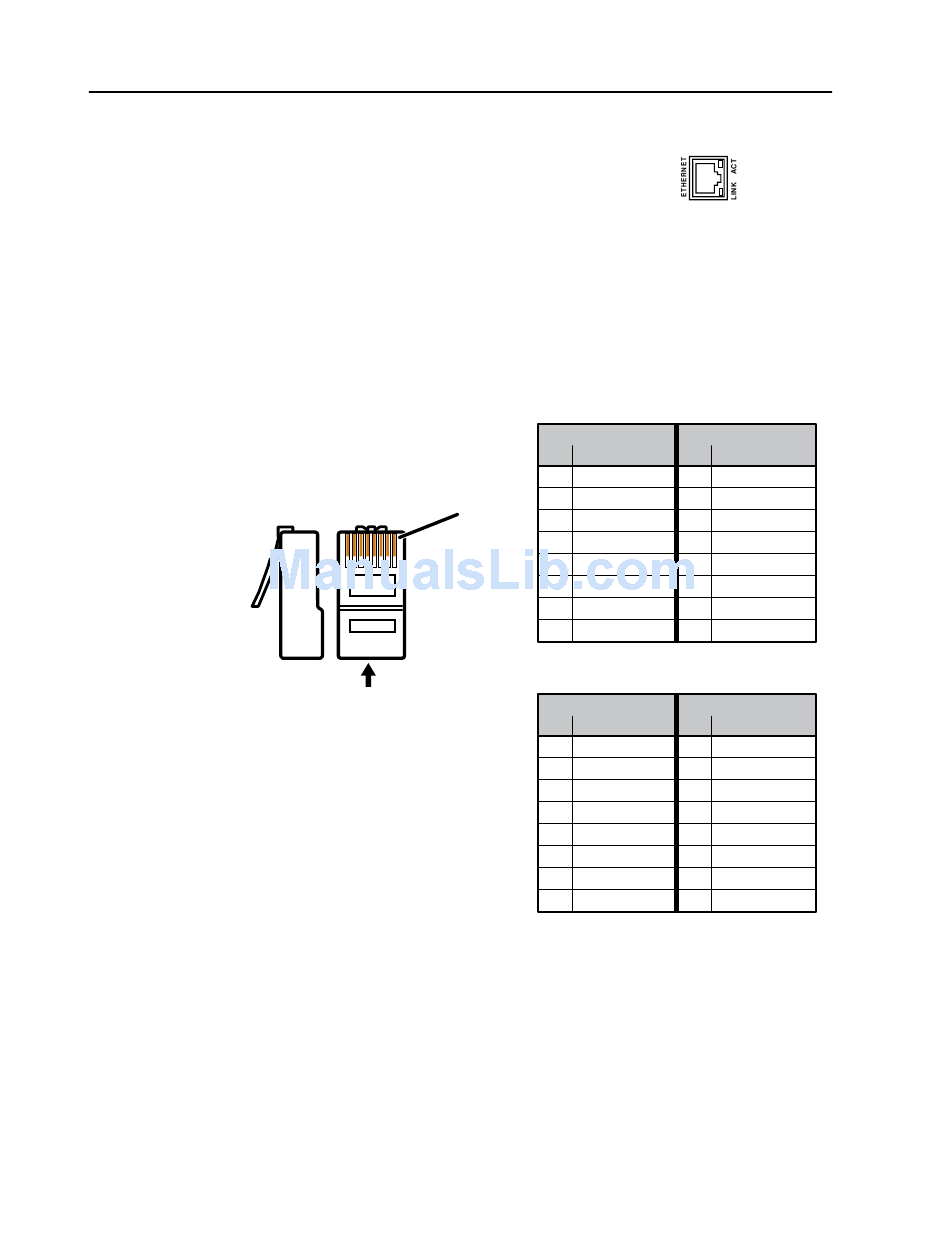

Figure A-1 — RJ-45 connector pinout tables

Default address

To access the MTPX Plus switcher via the LAN port, you need the switcher's IP
address. If the address has been changed to an address comprised of words and
characters, you can determine the actual numeric IP address using the Ping utility.
If the address has not been changed, the factory-specified default is 192.168.254.254.
Ping can also be used to test the Ethernet link to the MTPX Plus switcher.
A-2 MTPX Plus Twisted Pair Matrix Switchers • Ethernet Connection
Crossover cable — Direct connection between the computer and the
MTPX Plus switcher.
Patch (straight-through) cable — Connection of the MTPX Plus switcher to
an Ethernet LAN.
Side Pins:
RJ-45
1 2 3 4 5 6 7 8
Connector
Insert
Twisted
Pair Wires
Patch (straight) cable
Side 1
Pin Wire color Pin
1 White-orange 1 White-orange
2 Orange 2 Orange
3 White-green 3 White-green
4 Blue 4 Blue
5 White-blue 5 White-blue
6 Green 6 Green
7 White-brown 7 White-brown
8 Brown 8 Brown
Crossover cable
Side 1
Pin Wire color Pin
1 White-orange 1 White-green
2 Orange 2 Green
3 White-green 3 White-orange
4 Blue 4 Blue
5 White-blue 5 White-blue
6 Green 6 Orange
7 White-brown 7 White-brown
8 Brown 8 Brown
Side 2
Wire color
Side 2
Wire color
