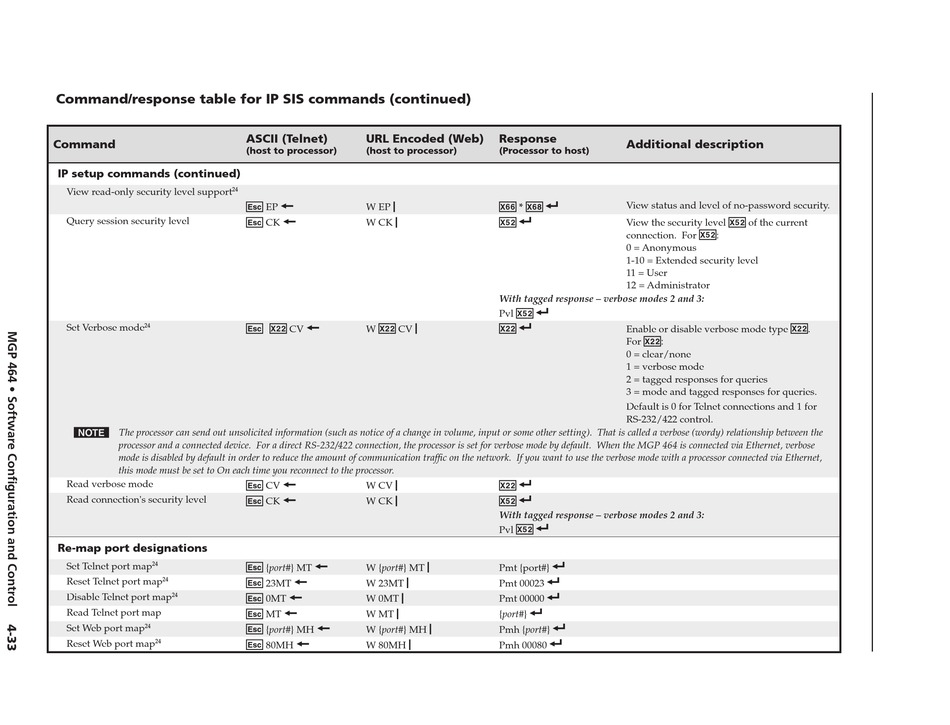

Command/response table for IP SIS commands (continued)
Command
IP setup commands (continued)
View read-only security level support
Query session security level
Set Verbose mode
24
N The processor can send out unsolicited information (such as notice of a change in volume, input or some other setting). That is called a verbose (wordy) relationship between the
processor and a connected device. For a direct RS-232/422 connection, the processor is set for verbose mode by default. When the MGP 464 is connected via Ethernet, verbose
mode is disabled by default in order to reduce the amount of communication traffic on the network. If you want to use the verbose mode with a processor connected via Ethernet,
this mode must be set to On each time you reconnect to the processor.
Read verbose mode
Read connection's security level
Re-map port designations
Set Telnet port map
24
Reset Telnet port map 24
Disable Telnet port map
24
Read Telnet port map
Set Web port map 24
Reset Web port map
24
ASCII (Telnet) URL Encoded (Web)
(host to processor) (host to processor)
24
E } |
EP W EP
E } |
CK W CK
E X2@ } X2@
CV W CV
E } |
CV W CV
E } |
CK W CK
E }
{port#} MT W {port#} MT
E } |
23MT W 23MT
E } |
0MT W 0MT
E } |
MT W MT
E }
{port#} MH W {port#} MH
E } |
80MH W 80MH
PRELIMINARY
Response
(Processor to host)
X6^ X6* ]
*
X5@ ]
With tagged response – verbose modes 2 and 3:
X5@ ]
Pvl
| X2@ ]
X2@ ]
X5@ ]
With tagged response – verbose modes 2 and 3:
X5@ ]
Pvl
| ]
Pmt {port#}
]
Pmt 00023
]
Pmt 00000
]
{port#}
| ]
Pmh {port#}
]
Pmh 00080
Additional description
View status and level of no-password security.
X5@
View the security level of the current
X5@
connection. For :
0 = Anonymous
1-10 = Extended security level
11 = User
12 = Administrator
X2@
Enable or disable verbose mode type
X2@
For :
0 = clear/none
1 = verbose mode
2 = tagged responses for queries
3 = mode and tagged responses for queries.
Default is 0 for Telnet connections and 1 for
RS-232/422 control.
.
