Installation, cont'd

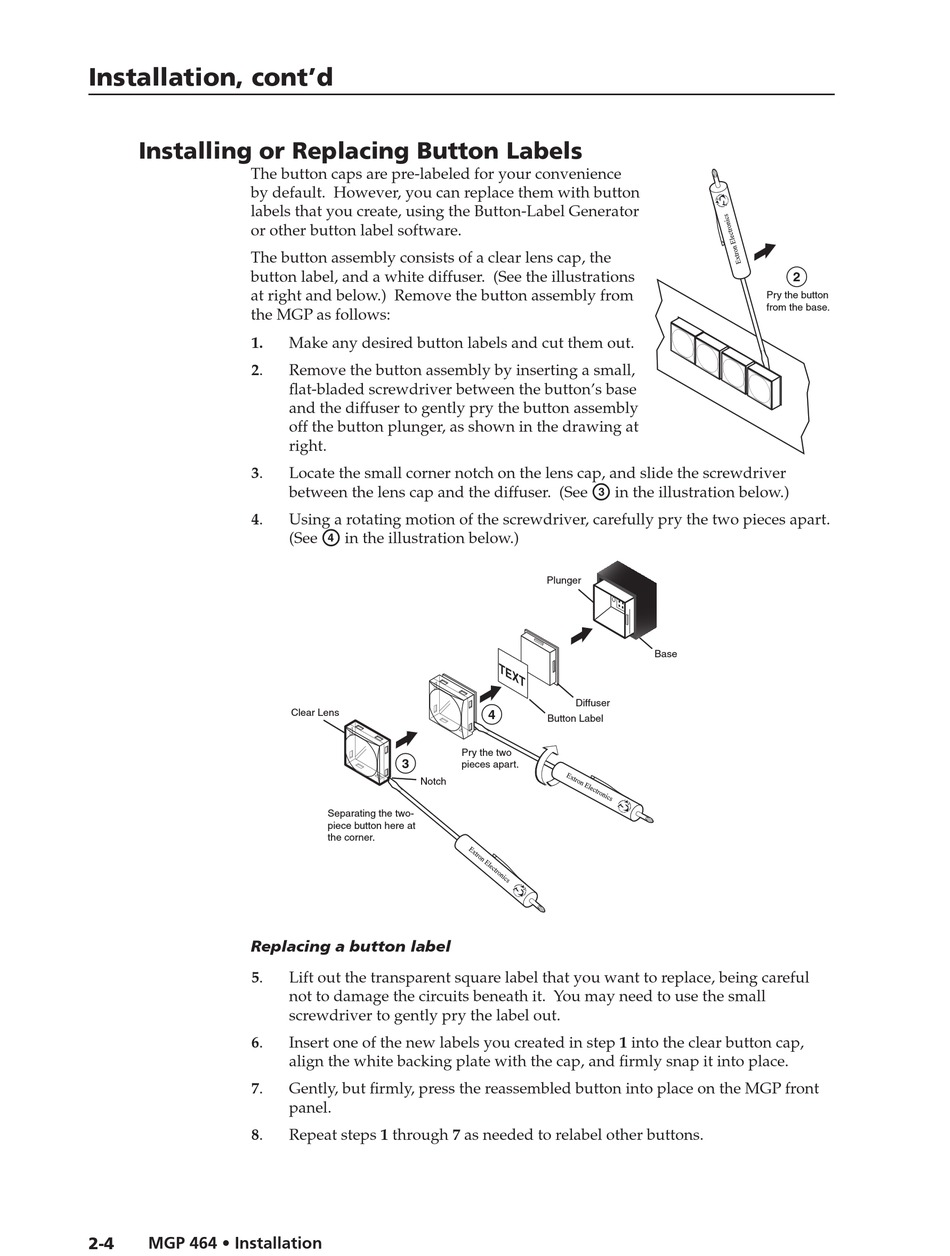

Installing or Replacing Button Labels

The button caps are pre-labeled for your convenience
by default. However, you can replace them with button
labels that you create, using the Button-Label Generator
or other button label software.
The button assembly consists of a clear lens cap, the
button label, and a white diffuser. (See the illustrations
at right and below.) Remove the button assembly from
the MGP as follows:
1.
2.
3.
4.
Replacing a button label
5.
6.
7.
8.
2-4 MGP 464 • Installation
Make any desired button labels and cut them out.
Remove the button assembly by inserting a small,
flat-bladed screwdriver between the button's base
and the diffuser to gently pry the button assembly
off the button plunger, as shown in the drawing at
right.
Locate the small corner notch on the lens cap, and slide the screwdriver
between the lens cap and the diffuser. (See
Using a rotating motion of the screwdriver, carefully pry the two pieces apart.
d
(See in the illustration below.)
Clear Lens
Pry the two
3
pieces apart.
Notch
Separating the two-
piece button here at
the corner.
Lift out the transparent square label that you want to replace, being careful
not to damage the circuits beneath it. You may need to use the small
screwdriver to gently pry the label out.
Insert one of the new labels you created in step 1 into the clear button cap,
align the white backing plate with the cap, and firmly snap it into place.
Gently, but firmly, press the reassembled button into place on the MGP front
panel.
Repeat steps 1 through 7 as needed to relabel other buttons.
c
in the illustration below.)
Plunger
Base
T E
X T
Diffuser
4
Button Label
2
Pry the button
from the base.
