In the Input Presets section, you can do the following:

Saving (creating) an input preset

To save all the settings for the currently selected input as a preset,
1. Select a Window Selection radio button to specify the window whose group of
settings for the current input will be saved as a preset.
2. From the Input Preset menu, select a preset number to which you want to
save the input's settings.
3. Click Save Preset.

Recalling an input preset

To recall a saved preset and enable all its settings on your MGP 464,
1. Select a Window Selection radio button to specify the input for which the
settings will be recalled.
2. From the Input Preset menu, select the preset number you want to recall.
3. Click the Recall Preset button to enable all settings contained in the selected
preset.

Using the Background Page

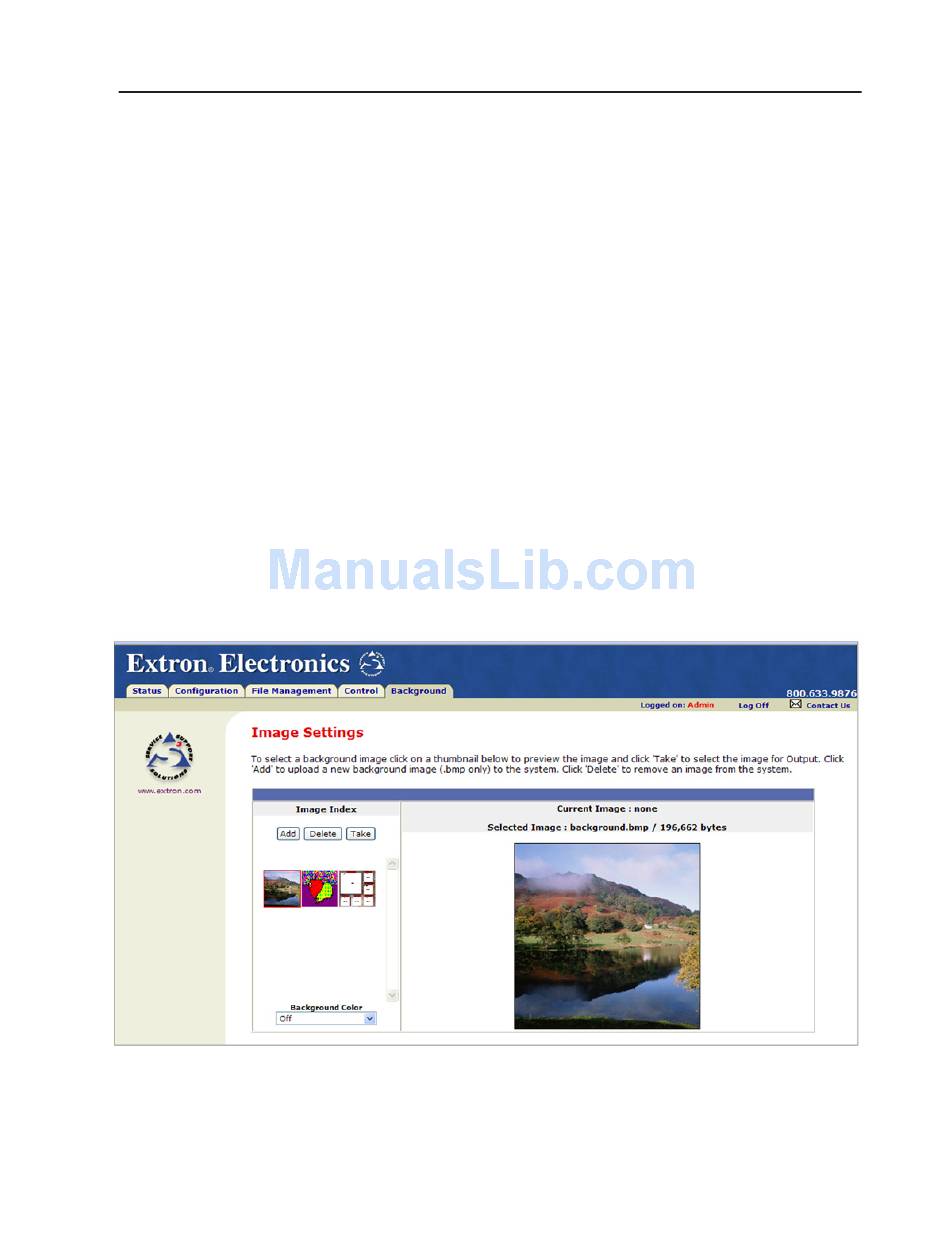

The Image Settings screen on the Background page lets you select a background for
the output display. You can choose a background color, or you can upload bitmap
images to the MGP, and select one as the display background. You can also specify
the image from a DVI input to display live as the background on the screen.

Selecting a background color

To change the background color on the output display, select a color from the
Background Color pull-down menu. The default selection, Off, results in a black
background.
MGP 464 • HTML Configuration and Control 5-23
