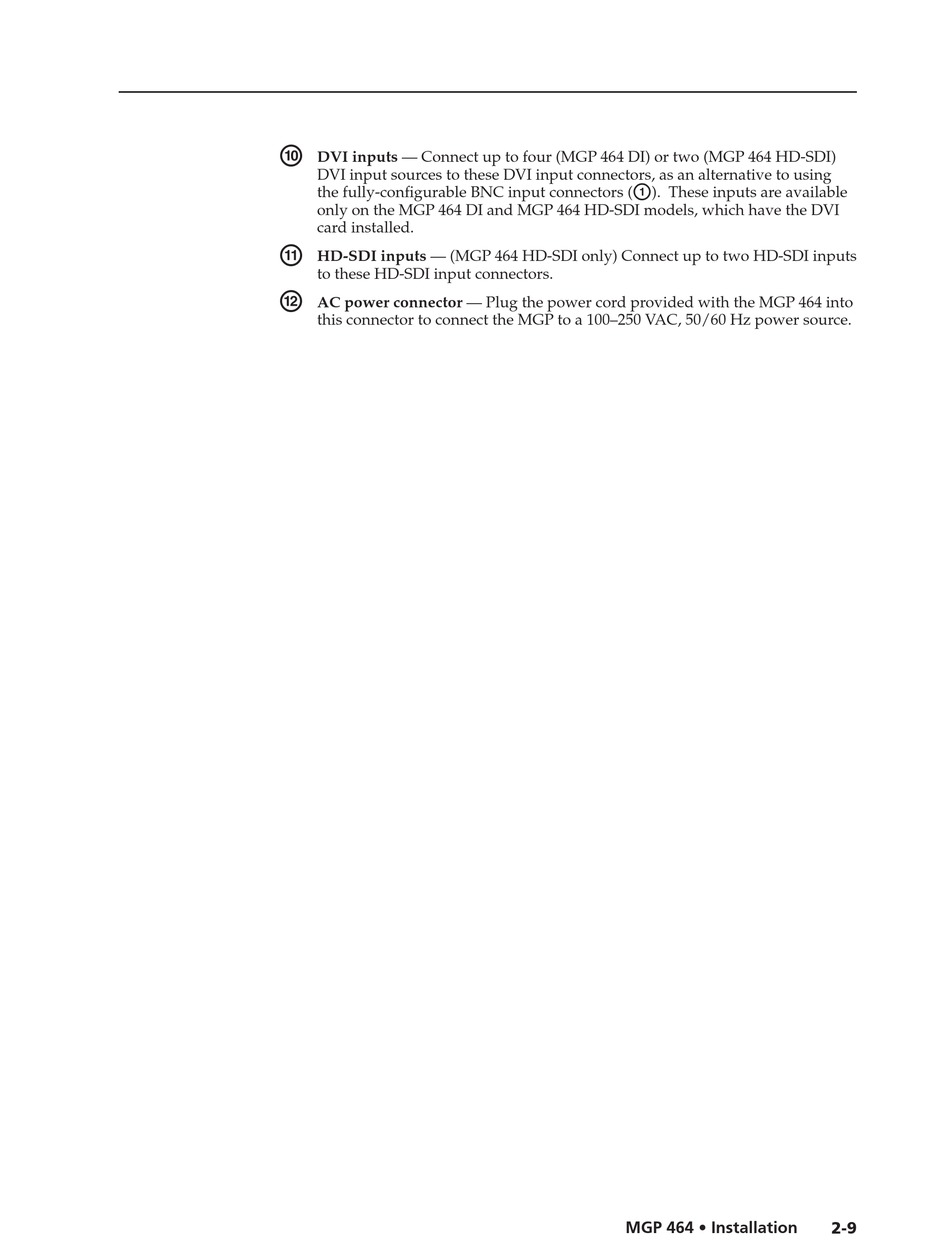

Extron electronics Multi-Graphic Processor MGP 464 HD-SDI User Manual page 23

j
DVI inputs — Connect up to four (MGP 464 DI) or two (MGP 464 HD-SDI)
DVI input sources to these DVI input connectors, as an alternative to using
the fully-configurable BNC input connectors (
only on the MGP 464 DI and MGP 464 HD-SDI models, which have the DVI
card installed.
k
HD-SDI inputs — (MGP 464 HD-SDI only) Connect up to two HD-SDI inputs
to these HD-SDI input connectors.
l
AC power connector — Plug the power cord provided with the MGP 464 into
this connector to connect the MGP to a 100–250 VAC, 50/60 Hz power source.
a
). These inputs are available
MGP 464 • Installation 2-9
