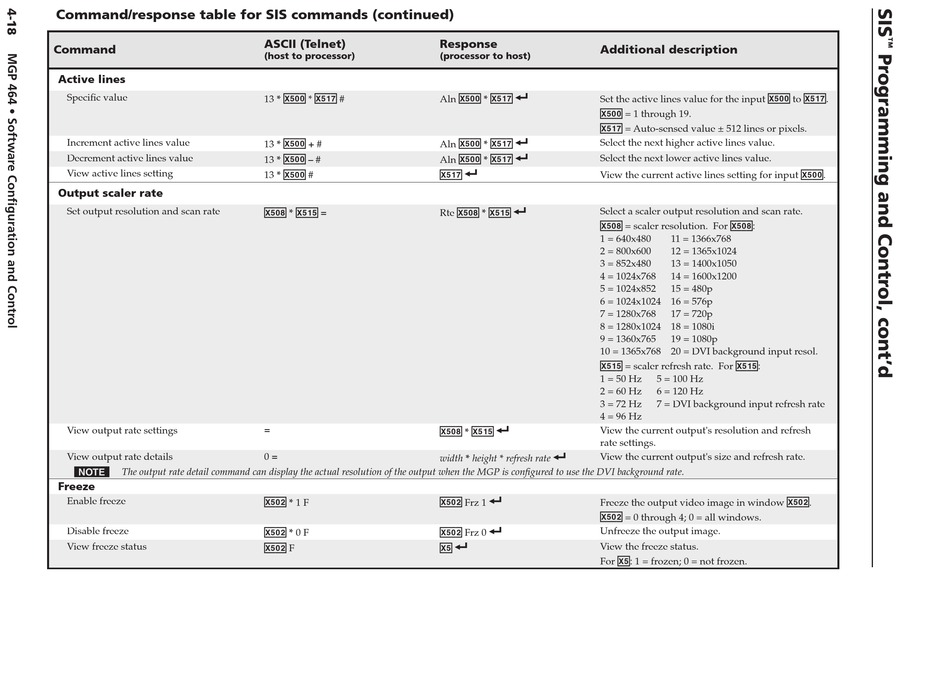

Command/response table for SIS commands (continued)
Command
Active lines
Specific value
Increment active lines value
Decrement active lines value
View active lines setting
Output scaler rate
Set output resolution and scan rate
View output rate settings
View output rate details
N The output rate detail command can display the actual resolution of the output when the MGP is configured to use the DVI background rate.
Freeze
Enable freeze
Disable freeze
View freeze status
PRELIMINARY
ASCII (Telnet) Response
(host to processor) (processor to host)
X50) X51&
13 * * # Aln
X50)
13 * + # Aln
X50)
13 * – # Aln
X50) X51& ]
13 * #
X50* X51%
* = Rte
X50*
=
0 =
width * height * refresh rate
X50@ X50@
* 1 F
X50@ X50@
* 0 F
X50@ X% ]
F
Additional description
X50) X51& ]
* Set the active lines value for the input
X50)
= 1 through 19.
X51&
= Auto-sensed value ± 512 lines or pixels.
X50) X51& ]
Select the next higher active lines value.
*
X50) X51& ]
Select the next lower active lines value.
*
View the current active lines setting for input
X50* X51% ]
Select a scaler output resolution and scan rate.
*
X50*
= scaler resolution. For
1 = 640x480
2 = 800x600
3 = 852x480
4 = 1024x768
5 = 1024x852
6 = 1024x1024 16 = 576p
7 = 1280x768
8 = 1280x1024 18 = 1080i
9 = 1360x765
10 = 1365x768 20 = DVI background input resol.
X51%
= scaler refresh rate. For
1 = 50 Hz
2 = 60 Hz
3 = 72 Hz
4 = 96 Hz
X51% ]
View the current output's resolution and refresh
*
rate settings.
]
View the current output's size and refresh rate.
]
Frz 1 Freeze the output video image in window
X50@
= 0 through 4; 0 = all windows.
]
Unfreeze the output image.
Frz 0
View the freeze status.
X%
For : 1 = frozen; 0 = not frozen.
X50) X51&
to .
X50)
.
X50*
:
11 = 1366x768
12 = 1365x1024
13 = 1400x1050
14 = 1600x1200
15 = 480p
17 = 720p
19 = 1080p
X51%
:
5 = 100 Hz
6 = 120 Hz
7 = DVI background input refresh rate
X50@
.
