Installation and Operation, cont'd
f
Audio Output connector (HDMI 201 A D Tx [Decora] only) —
Connect one end of a 5-wire audio cable to this 3.5 mm, 5-pole
direct insertion connector.
Connect the free end of the same cable from the transmitter to
any compatibly wired unit, such as a switcher, an amplifier, or
an HDMI 201 A D Rx (Decora) receiver (item
Figure 2-15 shows how to wire the captive screw audio
connector. Insert the wires into the appropriate openings in the
direct insertion connector. Tighten the screws on the side to
fasten the wires.
Unbalanced Output
NO GROUND HERE.
Tip
Sleeve (s)
NO GROUND HERE.
Tip
Figure 2-15 — Captive screw connector wiring for
transmitter audio output
C Connect the sleeve to ground (Gnd). Connecting
the sleeve to a negative (–) terminal will damage the
audio output circuits.
HDMI 201 Tx/Rx • Installation and Operation
2-18
k on page 2-21).
Balanced Output
Ring
Tip
Sleeve (s)
Ring
Do not tin the wires!
Tip

Receiver connections

The rack-mountable receiver is in quarter rack width enclosure.
The wall-mountable receiver is in an enclosure that can be
mounted in UL standard wall boxes with Decora-style face
plates.

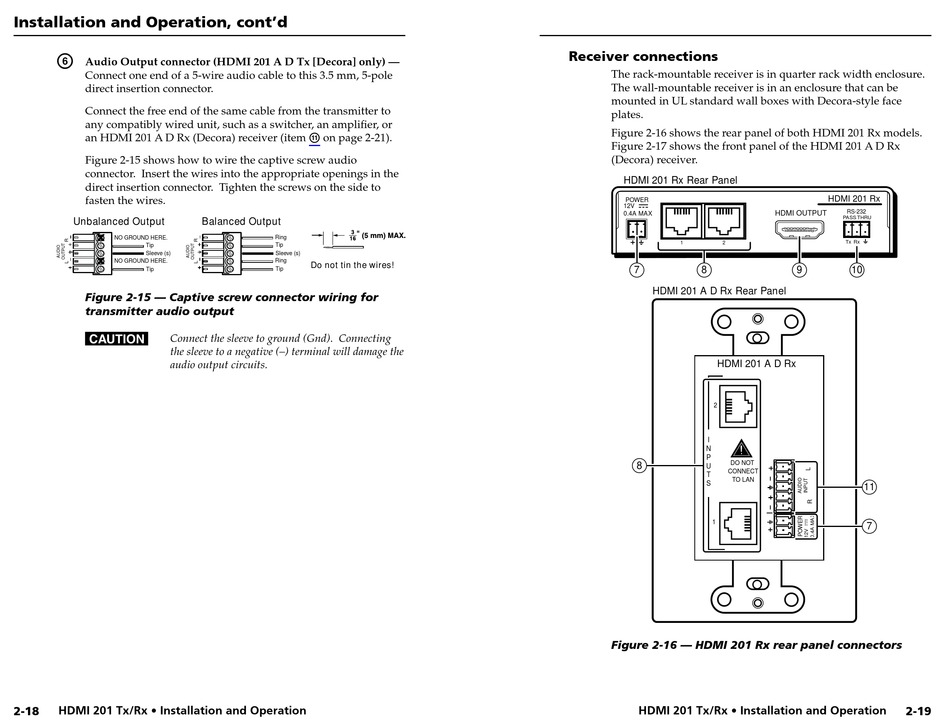

Figure 2-16 shows the rear panel of both HDMI 201 Rx models.
Figure 2-17 shows the front panel of the HDMI 201 A D Rx
(Decora) receiver.
HDMI 201 Rx Rear Panel
POWER
12V
0.4A MAX
1 2
7 8
HDMI 201 A D Rx Rear Panel
HDMI 201 A D Rx
2
I
N
P
8 DO NOT
U
CONNECT
T
TO LAN
S
1
Figure 2-16 — HDMI 201 Rx rear panel connectors
HDMI 201 Tx/Rx • Installation and Operation
HDMI 201 Rx
HDMI OUTPUT RS-232
PASS THRU
Tx Rx
9 10
11
7
2-19
