Reference Information, cont'd

Adapters

Accessories
HDMIF-DVIDM
HDMI female to DVI-D male adapter
HDMIM-DVIDF
HDMI male to DVI-D female adapter

Decora Template Dimensions

If you need to create a template, use the dimensions shown on
figure A-1, below.
N
(11.43 cm)

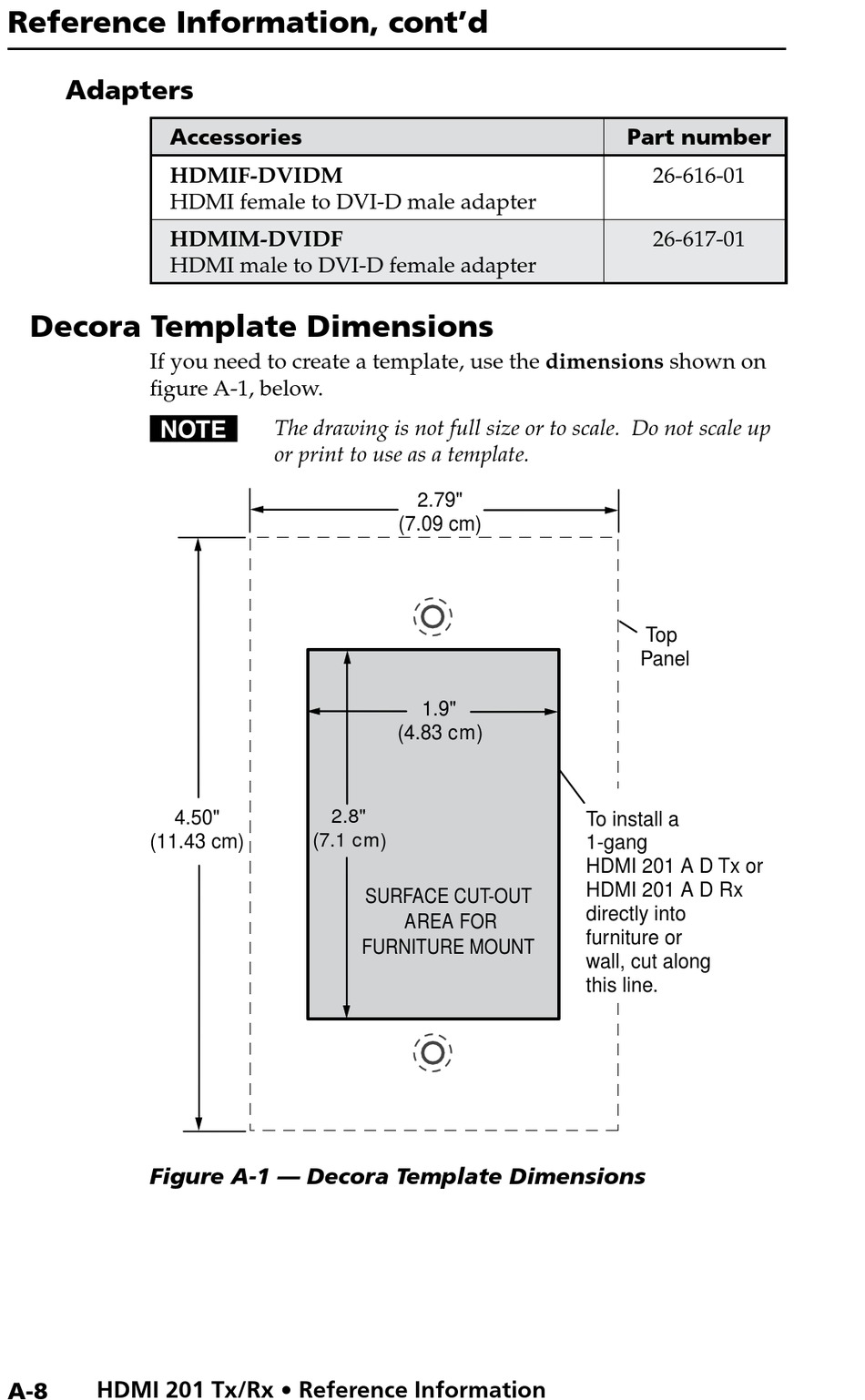

Figure A-1 — Decora Template Dimensions
HDMI 201 Tx/Rx • Reference Information
A-8
The drawing is not full size or to scale. Do not scale up
or print to use as a template.
4.50"
2.79"
(7.09 cm)
1.9"
(4.83 cm)
SURFACE CUT-OUT
AREA FOR
FURNITURE MOUNT
Part number
26-616-01
26-617-01
Top
Panel
To install a
1-gang
HDMI 201 A D Tx or
HDMI 201 A D Rx
directly into
furniture or
wall, cut along
this line.
