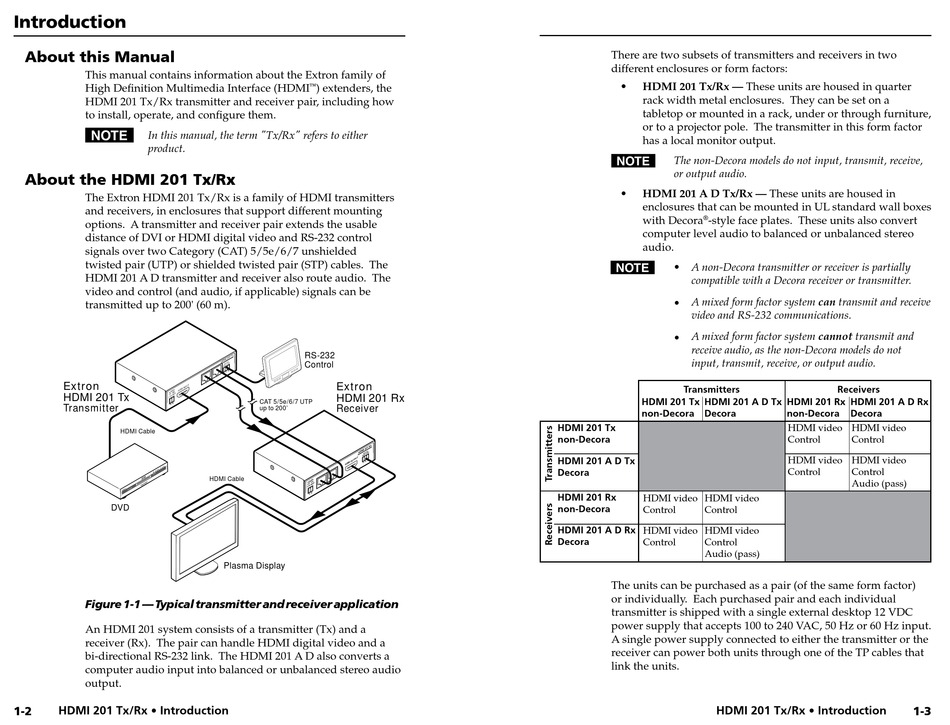

Introduction
About this Manual
This manual contains information about the Extron family of
High Definition Multimedia Interface (HDMI
HDMI 201 Tx/Rx transmitter and receiver pair, including how
to install, operate, and configure them.
N
In this manual, the term "Tx/Rx" refers to either
product.
About the HDMI 201 Tx/Rx
The Extron HDMI 201 Tx/Rx is a family of HDMI transmitters
and receivers, in enclosures that support different mounting
options. A transmitter and receiver pair extends the usable
distance of DVI or HDMI digital video and RS-232 control
signals over two Category (CAT) 5/5e/6/7 unshielded
twisted pair (UTP) or shielded twisted pair (STP) cables. The
HDMI 201 A D transmitter and receiver also route audio. The
video and control (and audio, if applicable) signals can be
transmitted up to 200' (60 m).
Extron
T
P U
IN
M I
R
H D
HDMI 201 Tx
W E
P O
X
1 2
V
M A
0 .4
A
Transmitter
HDMI Cable
DVD
Figure 1-1 — Typical transmitter and receiver application
An HDMI 201 system consists of a transmitter (Tx) and a
receiver (Rx). The pair can handle HDMI digital video and a
bi-directional RS-232 link. The HDMI 201 A D also converts a
computer audio input into balanced or unbalanced stereo audio
output.
HDMI 201 Tx/Rx • Introduction
1-2
™
) extenders, the
RS-232
x
1 T
2 0
M I
H D
Control
-2 32
R S
R U
TH
SS
PA
R x
Tx
2
Extron
1
HDMI 201 Rx
CAT 5/5e/6/7 UTP
Receiver
up to 200'
x
1 R
2 0
M I
H D
-2 32
R U
R S
TH
SS
PA
U T
T P
O U
R x
M I
Tx
H D
HDMI Cable
R
W E
2
P O
V
M A
X
1 2
A
0 .4
1
Plasma Display
There are two subsets of transmitters and receivers in two
different enclosures or form factors:
•
HDMI 201 Tx/Rx — These units are housed in quarter
rack width metal enclosures. They can be set on a
tabletop or mounted in a rack, under or through furniture,
or to a projector pole. The transmitter in this form factor
has a local monitor output.
N
The non-Decora models do not input, transmit, receive,
or output audio.
•
HDMI 201 A D Tx/Rx — These units are housed in
enclosures that can be mounted in UL standard wall boxes
with Decora
-style face plates. These units also convert
®
computer level audio to balanced or unbalanced stereo
audio.
N
•
A non-Decora transmitter or receiver is partially
compatible with a Decora receiver or transmitter.
A mixed form factor system can transmit and receive
•
video and RS-232 communications.
A mixed form factor system cannot transmit and
•
receive audio, as the non-Decora models do not
input, transmit, receive, or output audio.
Transmitters
HDMI 201 Tx
HDMI 201 A D Tx
non-Decora
Decora
HDMI 201 Tx
non-Decora
HDMI 201 A D Tx
Decora
HDMI 201 Rx
HDMI video
HDMI video
non-Decora
Control
Control
HDMI 201 A D Rx
HDMI video
HDMI video
Decora
Control
Control
Audio (pass)
The units can be purchased as a pair (of the same form factor)
or individually. Each purchased pair and each individual
transmitter is shipped with a single external desktop 12 VDC
power supply that accepts 100 to 240 VAC, 50 Hz or 60 Hz input.
A single power supply connected to either the transmitter or the
receiver can power both units through one of the TP cables that
link the units.
HDMI 201 Tx/Rx • Introduction
Receivers
HDMI 201 Rx
HDMI 201 A D Rx
non-Decora
Decora
HDMI video
HDMI video
Control
Control
HDMI video
HDMI video
Control
Control
Audio (pass)
1-3
