XTP R HWP 201 4K • Setup Guide
The XTP R HWP 201 4K is a single output XTP decorator-style wallplate receiver that can be installed into the provided mud ring or an optional UL
Listed metal junction box. This guide provides instructions for an experienced installer to install and connect the XTP R HWP 201 4K.
Throughput, Input, Control, and
Power, and Control Front Panel Features
Connectors
A E
XTP input
connector
B F
DC power
connector
C G
LAN connector
D
RS-232 and
H
IR Over XTP
connector
I

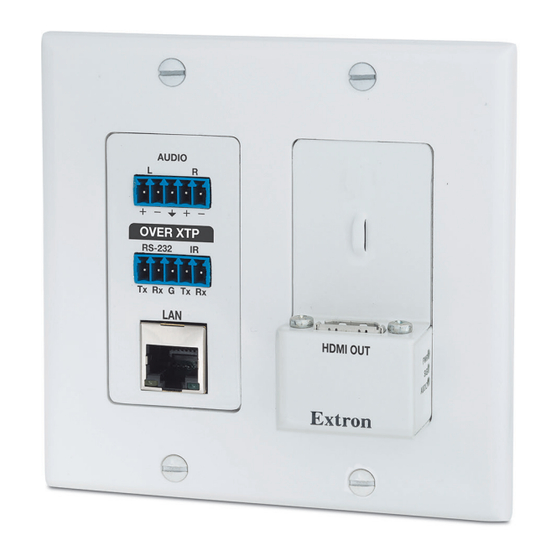

Figure 1. XTP R HWP 201 4K Rear (Left) and Front (Right) Panel Features
Installation
NOTE:
If a junction box is required, use a metal box only.
Ensure the installation meets building, electrical, and safety codes.
For additional mounting considerations, see the XTP R HWP 201 4K
User Guide at www.extron.com. For metal junction boxes, refer to the
manufacturer for additional mounting instructions and considerations.
ATTENTION:
Do not mount multiple devices adjacent to each other
in the same metal junction box. Add at least a one gang space
between devices.
Installing a Junction Box or Mud Ring
Follow the steps below if mounting the XTP R HWP 201 4K in a junction
box or mud ring.
Installation site preparation
1. Use a soft pencil to mark guidelines on the mounting surface. For
accuracy, use a template or the mounting enclosure.
NOTE:
Install junction boxes against wall studs.
2. Cut a hole in the wall. To avoid making the hole too big, cut inside
the marked lines.
3. If using the mud ring in a wall with insulation inside, remove at least
6 inches of the insulation around the cutout. If a wall stud interferes
with removing the insulation, remove as much insulation as possible
between the cutout and the wall stud.
4. Test the fit by inserting the mud ring or metal junction box into the
hole in the wall. If necessary, enlarge the hole as needed.
Metal junction box or mud ring installation
•
To install a UL Listed metal junction box (see figure 2), use mounting
screws to fasten the box to a wall stud.
•
To install the provided mud ring (see figure 3), attach the mounting
screws to the mud ring and loosely attach backing clips to the ends
of the screws. Rotate the backing clips so the mud ring fits in the
opening and then tighten them to fit snugly against the back of the wall.
B
Analog audio
output connector
HDMI output
connector
USB configuration
A
connector
HDMI audio switch
Reset button
Rear
E
POWER
12V
0.8 A MAX.
D
XTP R HWP 201 4K
XTP IN
C
Front
Screws or
Nails
Wall opening is
flush with edge
of box.
Cable
Clamp
Signal Output
Cable
Figure 2. Metal Junction Box Installation
Backing Clip
Mounting Screw
Rotate the backing clip
out of the way to insert
the mud ring into the wall.
Mud Ring Installation
Figure 3.
AUDIO
HDMI
L R
AUDIO
H
ON
OFF
OVER XTP
RS-232 IR
RESET
I
Tx Rx G Tx Rx
F
LAN
HDMI OUT
CONFIG
G
Wall Stud
XTP R HWP 201 4K
Decorator-style Faceplate
XTP R HWP 201 4K
Decorator-style Faceplate
1
