Installation, cont'd
Tip (Signal)
Sleeve (Gnd )
Figure 2-9 — RCA audio connectors

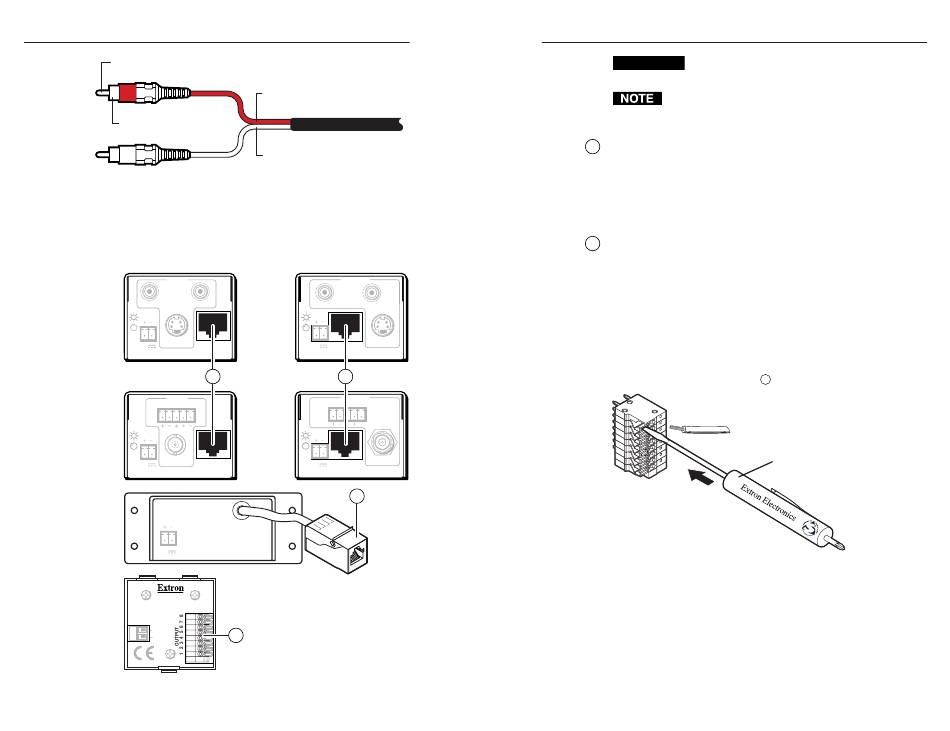

Transmitter/receiver throughput connections

See figure 2-10 to identify the connections between the
transmitter and receiver.
MTP Transmitters
INPUT
L R
S-VIDEO OUTPUT
12V
0.5a MAX
MTP T SV A RCA
INPUT
L R
VIDEO OUTPUT
12V
0.5a MAX
MTP T AV
12V
0.5a MAX
MTP T SVA 45
12 VDC
.5A MAX.
Figure 2-10 — Throughput connections
www.camboard.de
®
2-10 VersaTools MTP Series • Installation
Right Channel
(Red Jacket)
Left Channel
(White Jacket)
MTP Receivers
OUTPUT
L R
S-VIDEO
INPUT
12V
0.5a MAX
MTP R SV A RCA
5 5
OUTPUT
L R
VIDEO
INPUT
12V
0.5a MAX
MTP R AV
5
6
CAMBOARD Electronics
Tel. 07131 911201
Fax 07131 911203
Do not connect these devices to a computer data or
CAUTION
telecommunications network.
RJ-45 termination must comply with the
TIA/EIA T 568A or TIA/EIA T 568B wiring standards
for all connections.
Transmitter output and receiver input connector — Connect
5
one end of a TP cable to this RJ-45 female connector on the
transmitter. On the MTP T SV A AAP and MTP T AV AAP, the
connector is at the end of a short pigtail.
Connect the free end of the same TP cable from the transmitter
to this RJ-45 female connector on the receiver.
Transmitter output connector (MTP T AV 45 and SVA 45) —
6
Connect one end of a TP cable to this spring force captive wire
connector on the transmitter.
Strip approximately 0.43" (1.1 cm) of insulation from each
individual wire on one end of a TP cable. Using the included
Tweeker tool and observing the correct wiring colors in the table
in figure 2-12, insert the stripped TP wire ends into the
connector (figure 2-11).
Connect the free end of the same TP cable from the transmitter
to the RJ-45 female connector,
5
Figure 2-11 — Inserting wires in a spring force
wire connector
ce-info@camboard.de
®
VersaTools MTP Series • Installation
, on the receiver.
Tweeker
2-11
