P/2 DA4xi and P/2 DA6xi, cont'd

Operation

After the distribution amplifier and its connected devices are
powered up, the system is fully operational. If any problems
occur, verify that the cables are properly routed and connected.

Signal input and output connections

All connections, including power, input, and output, are located
on the rear panel of the P/2 DA4xi and P/2 DA6xi.
To make input and output connections to other devices, do the
following:
1.
2.
3.
4.
5.
6.
P/2 DA4xi/6xi • User's Guide P/2 DA4xi/6xi • User's Guide
6
Turn off the PC and local monitor.
Connect the input cable from the P/2 distribution
amplifier (DA) to the computer's VGA-UXGA output.

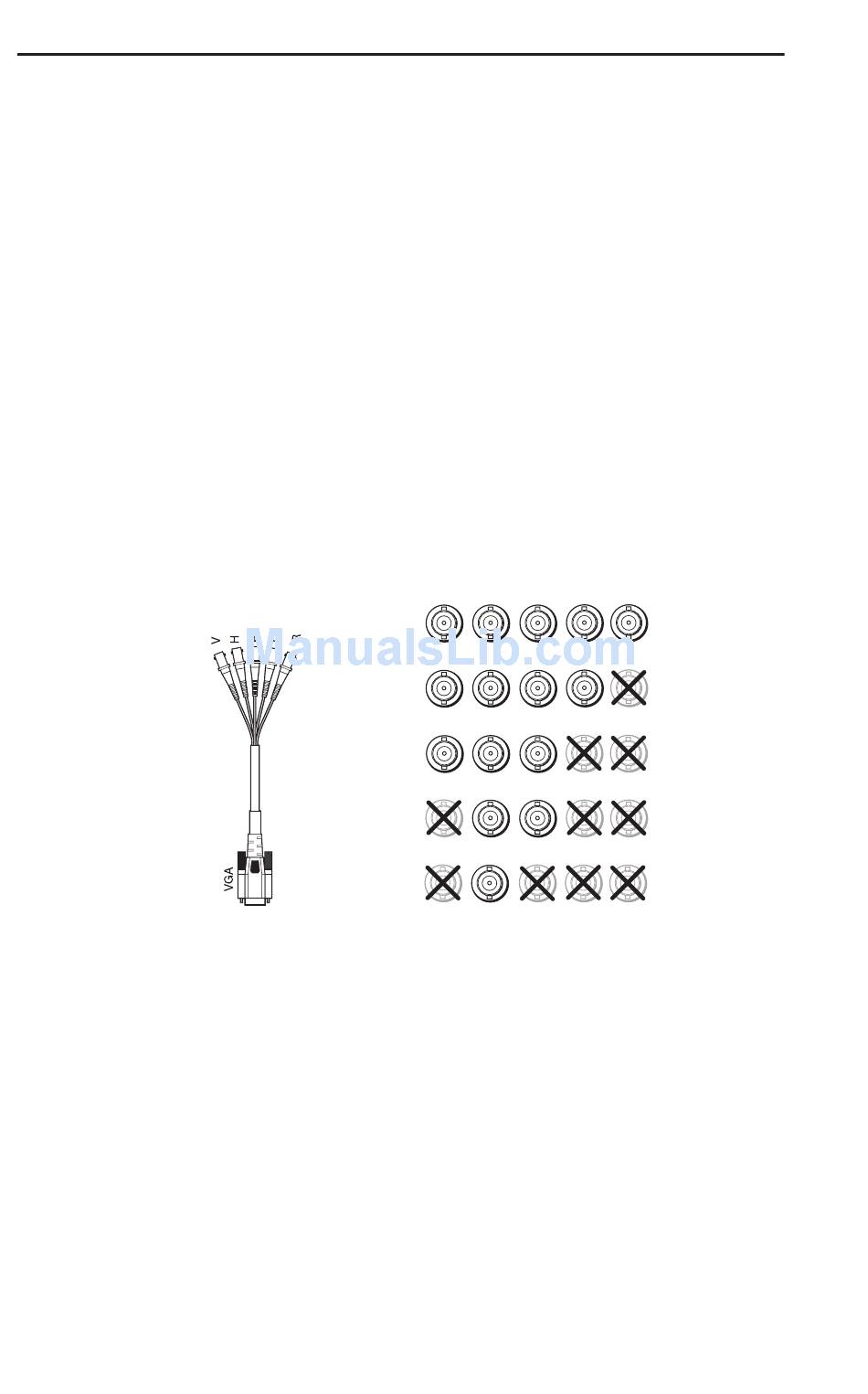

If you wish to send RGBHV, RGBS, RGBsB, RsGsBs,
component video, S-video, or composite video signals, use
a standard SY breakout cable to make the connection. See
the illustrations below.
RGBHV
RGBS
RGsB,
RsGsBs,
Component
S-video
Composite
Connect the computer's monitor to the Local Monitor
output of the DA.
Connect VGA-compatible monitors or projectors to the
outputs of the DA.
Connect power to the distribution amplifier.
Turn on the local monitor, other display devices, and the
PC.
R G B H
B H
R G
R G B H
R G B H
G B H
R
V
V
V
V
V
