Front Panel Indicators; Rear Panel Features - Extron electronics VGA Distribution Amplifiers P/2 DA4xi s User Manual

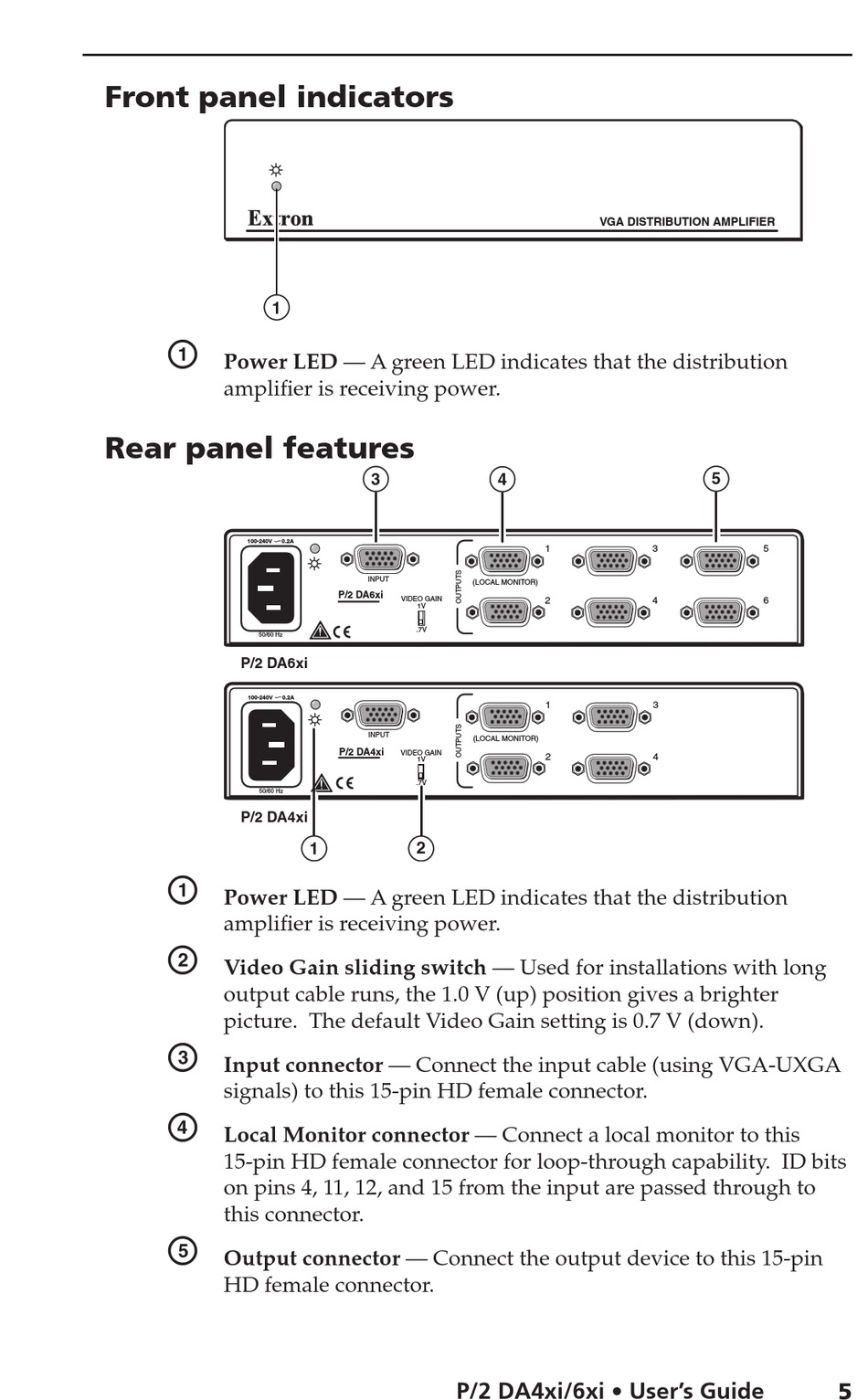

Front panel indicators

a
Power LED — A green LED indicates that the distribution
amplifier is receiving power.

Rear panel features

100-240V
50/60 Hz
P/2 DA6xi
100-240V
50/60 Hz
P/2 DA4xi
a
Power LED — A green LED indicates that the distribution
amplifier is receiving power.
b
Video Gain sliding switch — Used for installations with long
output cable runs, the 1.0 V (up) position gives a brighter
picture. The default Video Gain setting is 0.7 V (down).
c
Input connector — Connect the input cable (using VGA-UXGA
signals) to this 15-pin HD female connector.
d
Local Monitor connector — Connect a local monitor to this
15-pin HD female connector for loop-through capability. ID bits
on pins 4, 11, 12, and 15 from the input are passed through to
this connector.
e
Output connector — Connect the output device to this 15-pin
HD female connector.
1
3
0.2A
INPUT
P/2 DA6xi
VIDEO GAIN
1V
.7V
0.2A
INPUT
P/2 DA4xi
VIDEO GAIN
1V
.7V
2
1
VGA DISTRIBUTION AMPLIFIER
4
1
(LOCAL MONITOR)
2
1
(LOCAL MONITOR)
2
3
P/2 DA4xi/6xi • User's Guide P/2 DA4xi/6xi • User's Guide
5
3 5
4 6
3
4
5
