P/2 DA4xi and P/2 DA6xi, cont'd
3.
4.
5.

Rack mounting procedure

The distribution amplifier can be mounted on any of the
following optional rack shelves:
RSU 126 6" deep 1U Rack Shelf Kit (part #60-190-10)
RSB 126 6" deep Basic Rack Shelf (part #60-604-10)
RSU 129 9.5" deep rack shelf (part #60-190-01) or
RSB 129 9.5" deep Basic Rack Shelf (part #60-604-01)

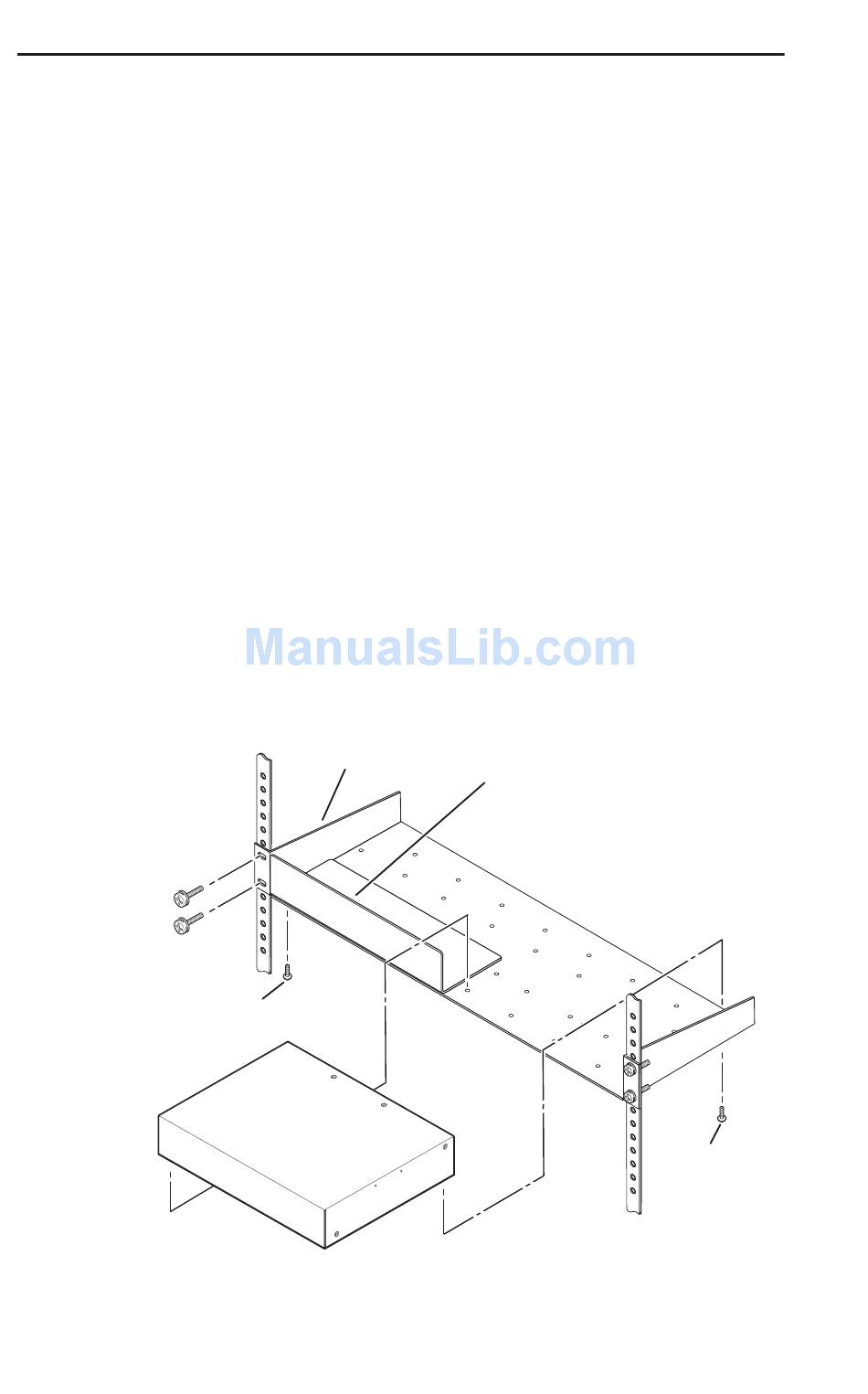

To install and set up the P/2 DA4xi or P/2 DA6xi on a rack,
follow the steps on the next page and see the diagram below:
Front false
faceplate
uses 2
screws.
P/2 DA4xi/6xi • User's Guide
2
Mechanical loading —
that uneven mechanical loading does not create a hazardous
condition.
Circuit overloading —
circuit and consider the effect that circuit overloading might
have on overcurrent protection and supply wiring. Give
appropriate consideration to the equipment nameplate
ratings when addressing this concern.
Reliable earthing (grounding) —
grounding of rack-mounted equipment. Pay particular
attention to supply connections other than direct connections
to the branch circuit (such as the use of power strips).
6" Deep Rack Shelf
Mount the equipment in the rack so
Connect the equipment to the supply
Maintain reliable
1/2 Rack Width Front False
Faceplate
Use 2 mounting holes on
opposite corners.
(2) 4-40 x 3/16"
Screws
