Extron
P/2 DA6xi
VGA Distribution
Amplifier
PC
Video Gain
The Video Gain switch is located on the rear panel with a default
setting of 0.7 V (down). Set the switch to 1 V when long cable
runs affect the picture quality. This boosts the signal level to
compensate for degradation due to cable length.
Signal Compatibility
Signal compatibility is affected by voltage. When the Video
Gain switch is set to
•
0.7 V (default) — the P/2 DA can pass all signal types
(VGA-UXGA, RGBHV, RGBS, RGBsB, RsGsBs, component
video, S-video and composite video).
•
1 V — the P/2 DA can pass only the RGBHV and RGBS
video types.
10
0- 24
0V
0. 2A
50
IN P
/6 0
U T
Hz
P/ 2
D A6
xi
V ID
E O
G A
1V
IN
(L OC
AL
M ON
.7 V
1
IT OR
)
3
2
3
4
5
6

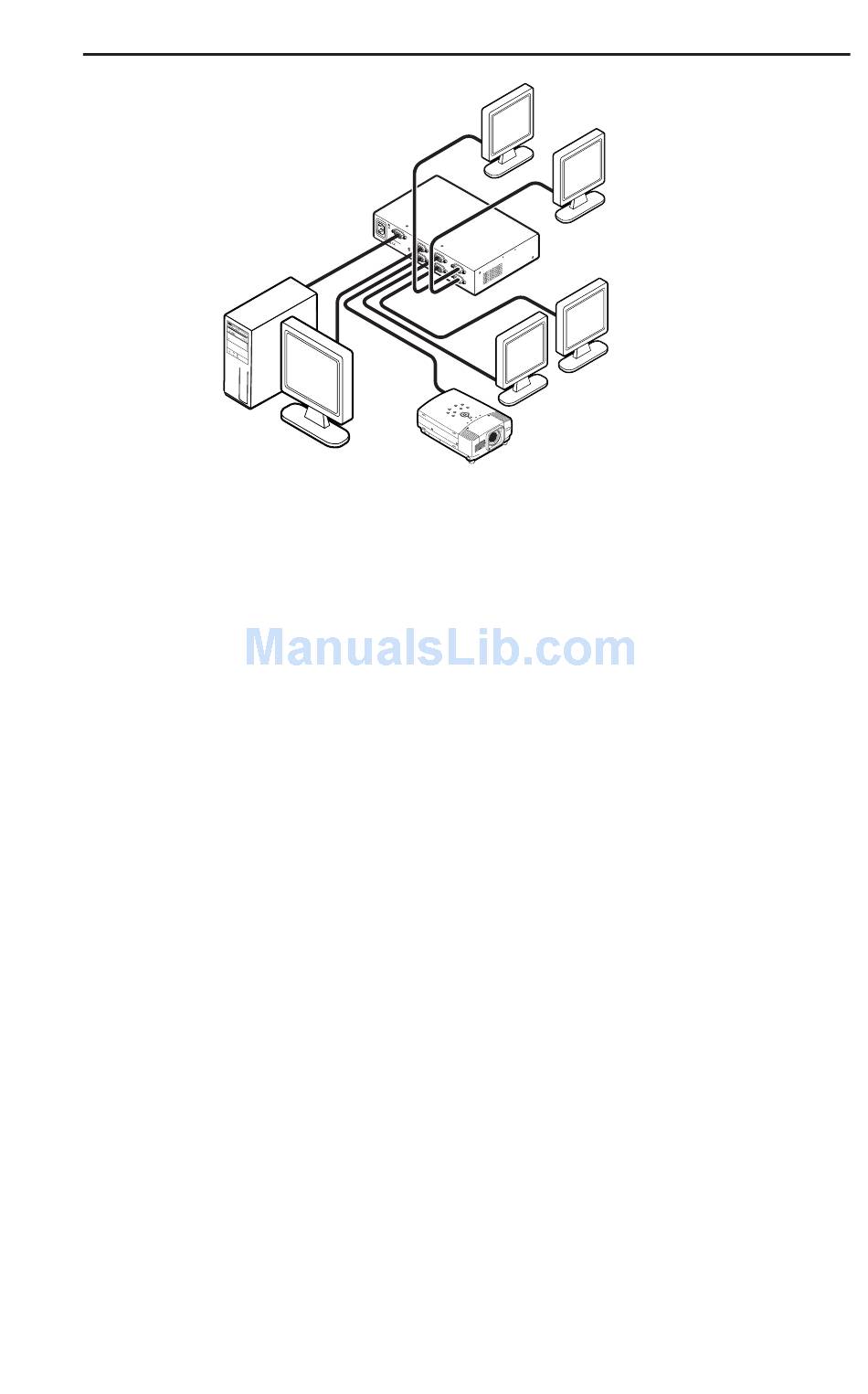

Compatible Displays
P/2 DA4xi/6xi • User's Guide
VGA-UXGA
7
