- Page 1 User Guide Distribution Amplifier P/2 DA2xi MT Two Output VGA and Audio Distribution Amplifier 68-713-01 Rev. G 01 13...
-
Page 2: Safety Instructions
Safety Instructions Safety Instructions • English Chinese Simplified （简体中文） 警告： 产品上的这个标志意在警告用户该产品机壳内有暴露的危险 WARNING: This symbol, , when used on the product, is intended to alert the user of the presence of uninsulated dangerous voltage within 电压， 有触电危险。 the product’s enclosure that may present a risk of electric shock. 注... - Page 3 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 4: Conventions Used In This Guide
Conventions Used in this Guide Notifications The following notifications are used in this guide: A warning indicates a situation that has the potential to result in death or WARNING: severe injury. CAUTION: A caution indicates a situation that may result in minor injury. ATTENTION: Attention indicates a situation that may damage or destroy the product or associated equipment. -
Page 5: Table Of Contents
Connectors, Indicators, and Controls ....2 Mounting ............5 UL rack mounting guidelines ......5 Rack mounting ..........6 Furniture mounting.......... 7 Reference Information ......... 8 Included Parts ............ 8 Other Accessories ..........8 P/2 DA2xi MT User Guide • Contents... -
Page 6: Introduction
Introduction The Extron P/2 DA2xi MT is a distribution amplifier that accepts video input from a VGA, XGA, UXGA, or QXGA compatible PC and distributes the signal to separately buffered outputs. The output on the back of the unit can be extended with Extron VGA Series cables from 6 feet to 250 feet in length. -
Page 7: Installation

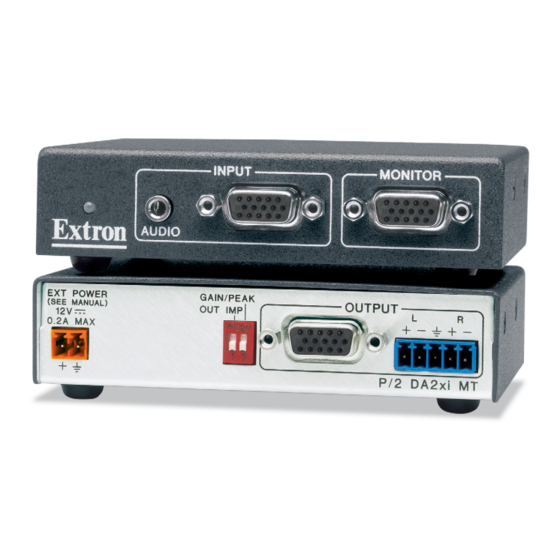

Installation The Installation section describes: • Connectors, Indicators, and Controls • Mounting Connectors, Indicators, and Controls The front and rear panels of the P/2 DA2xi MT are described below. INPUT MONITOR AUDIO P/2 DA2xi MT GAIN/PEAK EXT POWER (see manual) - Page 8 The two power cord wires must be kept separate while the power supply is plugged in. Remove power before continuing. To verify the polarity before connection, plug in the power supply with no load and check the output with a voltmeter. P/2 DA2xi MT User Guide User Guide • Installation...
- Page 9 Local monitor cable assembly — Use this cable assembly to connect the local monitor (video) and speaker (audio) to the unit. The chain is used to attach the cable to the unit, to prevent the cable from being lost or misplaced. P/2 DA2xi MT User Guide User Guide • Installation...
-
Page 10: Mounting
Installation and service must be performed by authorized personnel only (see UL rack mounting guidelines below. The P/2 DA2xi MT can be mounted on a rack shelf, under a desk or tabletop, or on a projector bracket. UL rack mounting guidelines The following Underwriters Laboratories (UL) guidelines pertain to the safe installation of the equipment in a rack. -
Page 11: Rack Mounting
2 screws. Use 2 mounting holes on opposite corners. (2) 4-40 x 3/16" Screws Use 2 mounting holes on opposite corners. (2) 4-40 x 3/16" Screws Figure 4. Rack Mounting Options P/2 DA2xi MT User Guide User Guide • Installation... -
Page 12: Furniture Mounting
Furniture mounting For optional furniture mounting, mount the unit using the mounting kit MBU 125 (part #70-077-01, provided with the P/2 DA2xi MT) as follows: Attach the mounting brackets to the distribution amplifier with the provided machine screws, as shown below. -
Page 13: Reference Information
Other Accessories Description Part number RSF 123 1U, 3.5” deep rack shelf kit 60-190-20 RSU 126 1U, 6” D universal rack shelf kit 60-190-10 RSU 129 1U, 9.5” deep universal rack shelf 60-190-01 P/2 DA2xi MT User Guide • Reference Information... -
Page 14: Extron Warranty
Extron Warranty Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to: USA, Canada, South America,...
