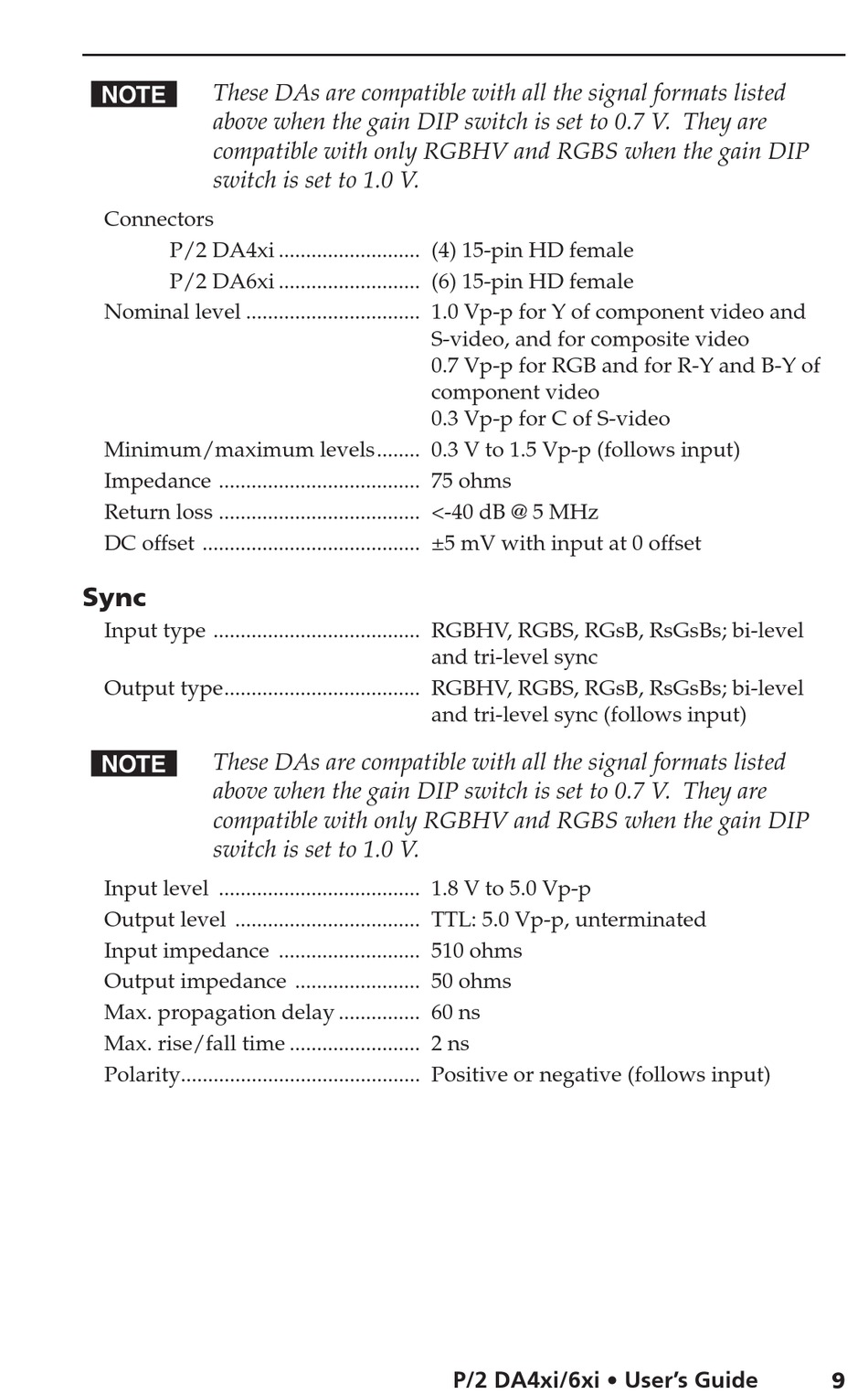

Extron electronics VGA Distribution Amplifiers P/2 DA4xi s User Manual page 13

These DAs are compatible with all the signal formats listed
N
above when the gain DIP switch is set to 0.7 V. They are
compatible with only RGBHV and RGBS when the gain DIP
switch is set to 1.0 V.
Connectors
P/2 DA4xi .......................... (4) 15-pin HD female
P/2 DA6xi .......................... (6) 15-pin HD female
Nominal level ................................ 1.0 Vp-p for Y of component video and
Minimum/maximum levels........ 0.3 V to 1.5 Vp-p (follows input)
Impedance ..................................... 75 ohms
Return loss ..................................... <-40 dB @ 5 MHz
DC offset ........................................ ±5 mV with input at 0 offset
Sync
Input type ...................................... RGBHV, RGBS, RGsB, RsGsBs; bi-level
Output type.................................... RGBHV, RGBS, RGsB, RsGsBs; bi-level
These DAs are compatible with all the signal formats listed
N
above when the gain DIP switch is set to 0.7 V. They are
compatible with only RGBHV and RGBS when the gain DIP
switch is set to 1.0 V.
Input level ..................................... 1.8 V to 5.0 Vp-p
Output level .................................. TTL: 5.0 Vp-p, unterminated
Input impedance .......................... 510 ohms
Output impedance ....................... 50 ohms
Max. propagation delay ............... 60 ns
Max. rise/fall time ........................ 2 ns
Polarity............................................ Positive or negative (follows input)
S-video, and for composite video
0.7 Vp-p for RGB and for R-Y and B-Y of
component video
0.3 Vp-p for C of S-video
and tri-level sync
and tri-level sync (follows input)
P/2 DA4xi/6xi • User's Guide
9
