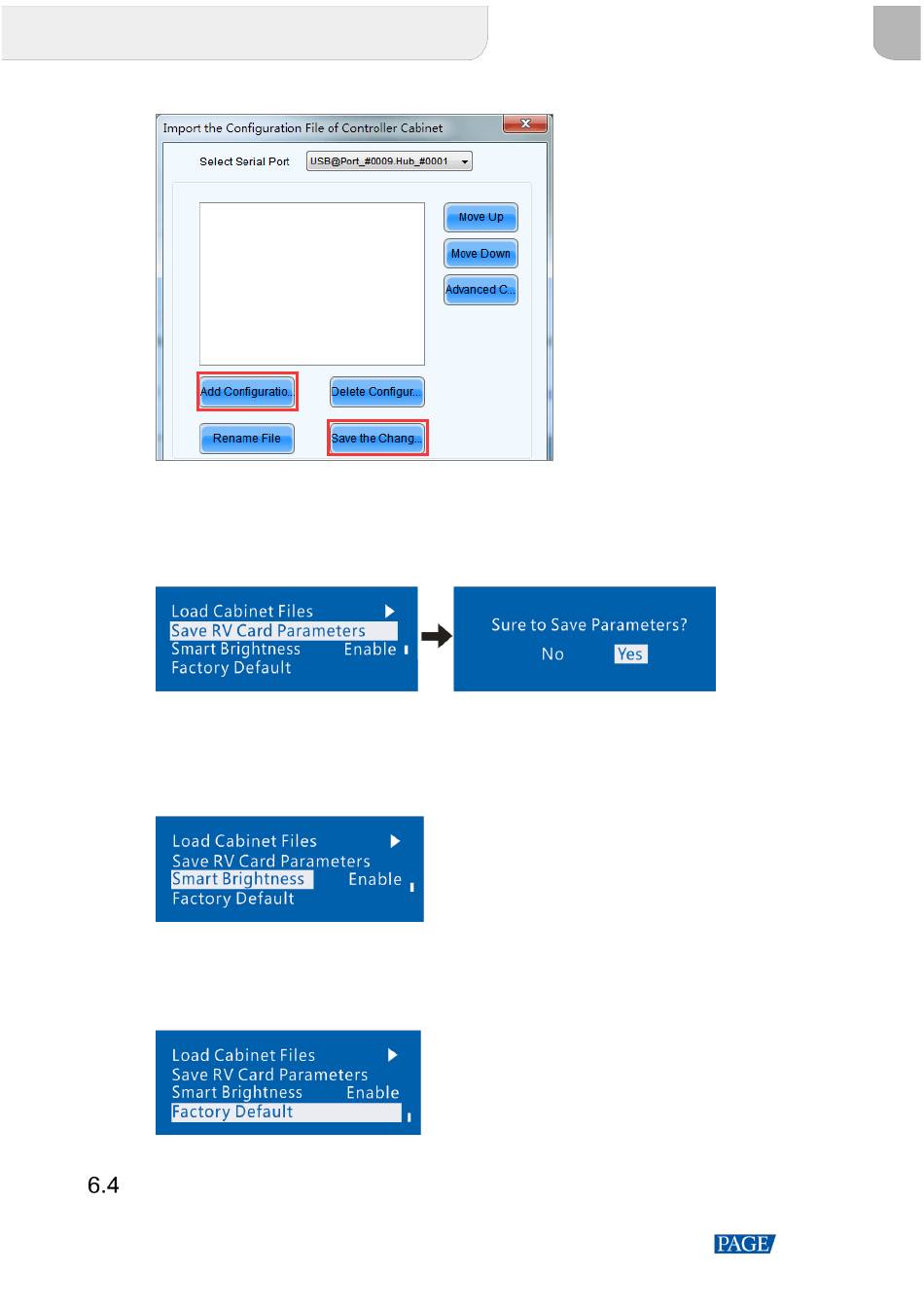

Figure 6-7 Importing configuration file of controller cabinet

6.3.5 Save to RV Card

You can send and save the current screen configuration parameters to the receiving cards. The configuration
data will not be lost after the device is powered off.
Figure 6-8 Saving to RV card

6.3.6 Smart Brightness

This parameter is set to Disable by default. To successfully enable this function, you must load the
configuration files first. Currently, only non-pulse-width modulation (PWM) chips are supported.
Figure 6-9 Smart brightness

6.3.7 Factory Reset

Reset the controller parameters to factory settings.
Figure 6-10 Factory reset
Display Control
