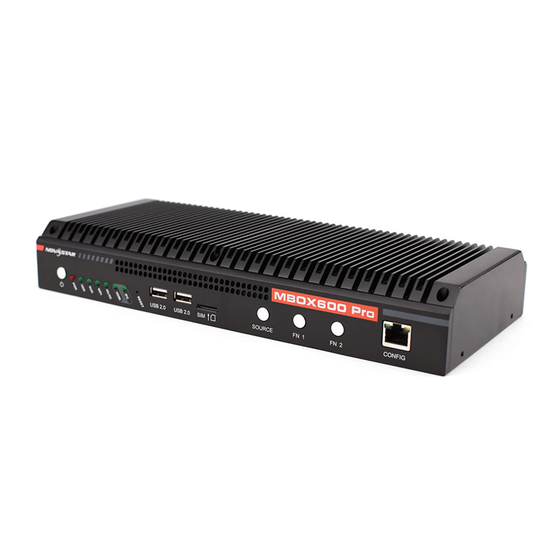

NovaStar MBOX600 Pro User Manual

Industrial controller
Hide thumbs Also See for MBOX600 Pro:
Table of Contents

Advertisement

Quick Links

Download this manual
MBOX600 Pro
Industrial Controller
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MBOX600 Pro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NovaStar MBOX600 Pro

Summary of Contents for NovaStar MBOX600 Pro

  • Page 1 MBOX600 Pro Industrial Controller User Manual...

  • Page 2: Table Of Contents

    MBOX600 Pro Industrial Controller User Manual Contents Contents ............................................i Introduction ..........................................1 Login ............................................2 Local Login ........................................2 External PC Login......................................3 Home ............................................4 Device ..........................................4 Screen ..........................................7 Receiving Card ....................................7 Module ........................................8 Screen Configuration ......................................

  • Page 3: Introduction

    It provides a powerful Server, and unleashes the full capacity of the system. These features of the matching solution aims to meet users' needs for differentiated secondary development and innovation. The MBOX600 Pro has system monitoring and management capabilities of the SNMP, suitable for users of advertising media display field. www.novastar.tech...

  • Page 4: Login

    Local Login Operating Procedure Step 1 Connect the MBOX600 Pro with a display, a keyboard and a mouse. Step 2 Enter “127.0.0.1” in your browser to access the application. Step 3 Enter the user name and password. (The default user name is “admin” and the default password is “SN2008@+”.)

  • Page 5: External Pc Login

    Ethernet cable: Connect the PC to the CONFIG Ethernet port on the front panel of the  MBOX600 Pro. LAN: The PC and the MBOX600 Pro are connected to the same LAN via a router.  Step 2 Enter “192.168.0.10” in your browser to access the application.

  • Page 6: Home

    MBOX600 Pro Industrial Controller User Manual Home After successful login, go to the homepage to view device and screen information. Precautions Parameter settings in the software take time to solidify. To ensure the parameter settings take effect, avoid powering on, powering off or restarting the device within 30 seconds after issuing commands.
  • Page 7 MBOX600 Pro Industrial Controller User Manual Note: If "Backup" is displayed on an Ethernet port icon, it indicates that the Ethernet port is a backup port. Table 3-1 Ethernet port status Ethernet port status Description No Ethernet port is specified as the backup port of the current Ethernet port and the current Ethernet port is working normally.
  • Page 8 MBOX600 Pro Industrial Controller User Manual Ethernet port status Description Ethernet port is disconnected. The screen is working normally. A backup relationship is established between the two Ethernet ports. The master Ethernet port is disconnected. The backup Ethernet port is in alarm status. The screen is working normally.

  • Page 9: Screen

    MBOX600 Pro Industrial Controller User Manual Screen Receiving Card On the homepage, select Screen > Receiving Card to view working status, temperature, voltage, fault information, alarm information of the receiving card and basic screen information. Figure 3-2 Working status Figure 3-3 Temperature...

  • Page 10: Module

    MBOX600 Pro Industrial Controller User Manual Figure 3-4 Voltage Module On the homepage, select Screen > Module to view working status, temperature, voltage, module ID, run time, fault information, alarm information of the module and basic screen information. Note: The module information only of smart modules can be displayed. The module information of non-smart modules cannot be accessed.

  • Page 11: Screen Configuration

    MBOX600 Pro Industrial Controller User Manual Screen Configuration Device Configuration On the Device Configuration page, users can set the source type, EDID, zoom and redundancy settings. Step 1 From the navigation bar on the left, choose Screen Configuration. Step 2 Select the Device Configuration tab.

  • Page 12: Screen Connection

    MBOX600 Pro Industrial Controller User Manual Custom: Customize the zoom width and height. (Width and height range is from  64 to 4096. The width must be set to an even number, and width × height ≤ 2.6 million.) ...
  • Page 13 MBOX600 Pro Industrial Controller User Manual Figure 4-2 Screen configuration Note: To delete a cabinet, select the cabinet and press “Delete” on the keyboard. www.novastar.tech...
  • Page 14 MBOX600 Pro Industrial Controller User Manual Table 4-1 Icon description Ethernet port Cabinet Icon Description Icon Description : The cabinet is online and : Configuration complete inside the canvas. 1: Ethernet port 1 is P1: The sequence number of the connected.
  • Page 15 MBOX600 Pro Industrial Controller User Manual Table 4-2 Feature description Feature Description Zoom in/Zoom out/Zoom to fit Import Import screen configuration files which can be used to quickly configure screens or recover a faulty screen. Export Export the current screen configuration information on the canvas, which can be used to quickly configure screens or recover a faulty screen.

  • Page 16: Brightness Control

    MBOX600 Pro Industrial Controller User Manual Brightness Control Manual Brightness Adjustment Step 1 From the navigation bar on the left, choose Brightness Control. Step 2 Drag the brightness slider or enter a brightness value. The screen brightness changes in real time.
  • Page 17 MBOX600 Pro Industrial Controller User Manual Figure 5-2 Specified brightness Select Ambient Brightness and click OK. (This feature is available only when a light  sensor is connected to the device.) Figure 5-3 Ambient brightness Step 5 Configure the light sensor. (Perform this step if Ambient Brightness is selected as Adjustment Type, otherwise skip this step.)
  • Page 18 MBOX600 Pro Industrial Controller User Manual Figure 5-4 Light sensor configuration Specify an update interval, number of values to report, and the screen brightness when the light sensor fails, then click Save. Figure 5-5 Configuring the light sensor Add a brightness mapping table.
  • Page 19 MBOX600 Pro Industrial Controller User Manual Click Quick Division and specify an ambient brightness range, screen brightness range and the number of subsections (up to 20 subsections are supported). Click OK. Figure 5-7 Quick division If there are already mapping relations in the brightness mapping table, the relations will be cleared after you click OK.

  • Page 20: Rule Configuration

    MBOX600 Pro Industrial Controller User Manual Rule Configuration Alarm Rules When a receiving card or module fails to work correctly, the system uses the default alarm rules to report different grades of alarms for the failure, and the alarm information can be viewed in Screen Monitoring.

  • Page 21: Monitoring Refresh Interval

    MBOX600 Pro Industrial Controller User Manual Temperature range: 0°C~80°C, voltage range: 3.3 V~5.0 V Figure 6-1 Alarm rules Monitoring Refresh Interval Turn on Automatic Refresh and specify a refresh interval. The system will automatically refresh the monitoring information at the specified interval.

  • Page 22: Monitoring Control

    MBOX600 Pro Industrial Controller User Manual Monitoring Control Turn on Monitoring Control. When the maximum/average temperature of the receiving card is within a certain range, the screen brightness is automatically adjusted to the specified value. Step 1 From the navigation bar on the left, choose Rule Configuration.

  • Page 23: Maintenance

    MBOX600 Pro Industrial Controller User Manual Maintenance Device Maintenance Allows users to update the device firmware. Prerequisites  Types of update file vary by operating system. The update file for Windows is “exe” and for Linux is “deb”. Using other types of file for update is not supported.

  • Page 24: Cabinet Maintenance

    MBOX600 Pro Industrial Controller User Manual Step 6 After the update is complete, the system will be automatically exit to the login page. Please enter your account and password to log in again. Successful is displayed after the update is successful. If the update fails, a prompt will appear saying Update failed.
  • Page 25 MBOX600 Pro Industrial Controller User Manual Step 4 Select an update file from the window that appears (the file type of the receiving card firmware program and module MCU is "zip" or "rar" and the configuration file type is "rcfgx"), and click Open.
  • Page 26 MBOX600 Pro Industrial Controller User Manual Figure 7-5 Continue Figure 7-6 Successful Click Cancel. Select the successfully-updated cabinet(s) and click Save to Hardware. www.novastar.tech...
  • Page 27 MBOX600 Pro Industrial Controller User Manual Figure 7-7 Save to hardware www.novastar.tech...

  • Page 28: Toolbox

    MBOX600 Pro Industrial Controller User Manual Toolbox Import Configuration Files Prerequisites The file extension is ".mprj".   The file format and content meet the project file requirements. The data in the file cannot be changed or deleted.  ...

  • Page 29: Export Configuration Files

    MBOX600 Pro Industrial Controller User Manual Figure 8-2 Select file range Step 5 Click OK to import the configuration file to the device. Export Configuration Files Step 1 Hover the mouse over in the upper navigation bar. Step 2 In the toolbox menu bar, choose Export Configuration File.

  • Page 30: Cabinet Configuration

    During smart settings with NovaLCT Lite: If the PC running NovaLCT Lite is an external PC, use the HDMI source as the input source; if the PC running NovaLCT Lite is the MBOX600 Pro, then use the internal source of the MBOX600 Pro as the input source to observe the display of modules in real-time.
  • Page 31 MBOX600 Pro Industrial Controller User Manual Figure 8-5 Cabinet configuration Note: When using the cabinet configuration tool for smart settings, it is recommended to switch the input source to the HDMI source to view the lighting effects of the module in real time.

  • Page 32: Settings

    MBOX600 Pro Industrial Controller User Manual Settings For the detailed description of settings, see Table 9-1. Table 9-1 Settings Settings Description Language Switch the display language. Chinese and English are supported for now. For more details, see Log. About Display the version of Web Interface Control, copyright and official website address.
  • Page 33 MBOX600 Pro Industrial Controller User Manual Figure 9-3 Log parameter settings Step 4 In the settings menu bar, choose Log > Download to download the required log. www.novastar.tech...

  • Page 34: Snmp

    MBOX600 Pro Industrial Controller User Manual SNMP The MBOX600 Pro supports the SNMP protocol. For details, please see the user guide of the SNMP protocol. www.novastar.tech...
