2.

Kit Overview

The WFI32-IoT board has a single-chip Wi-Fi module that supports rapid prototyping of IoT devices and
demonstrates cloud connectivity.
The WFI32-IoT board:
• Offers various types of on-board sensors, such as a temperature sensor and ambient light sensor to build their
own applications
• Provides on-board sensors that help the user to collect the sensor data and transmit to the cloud
• Provides the WFI32E01PC module, which has a built-in crypto device that helps to make a secure and
authenticated cloud connection

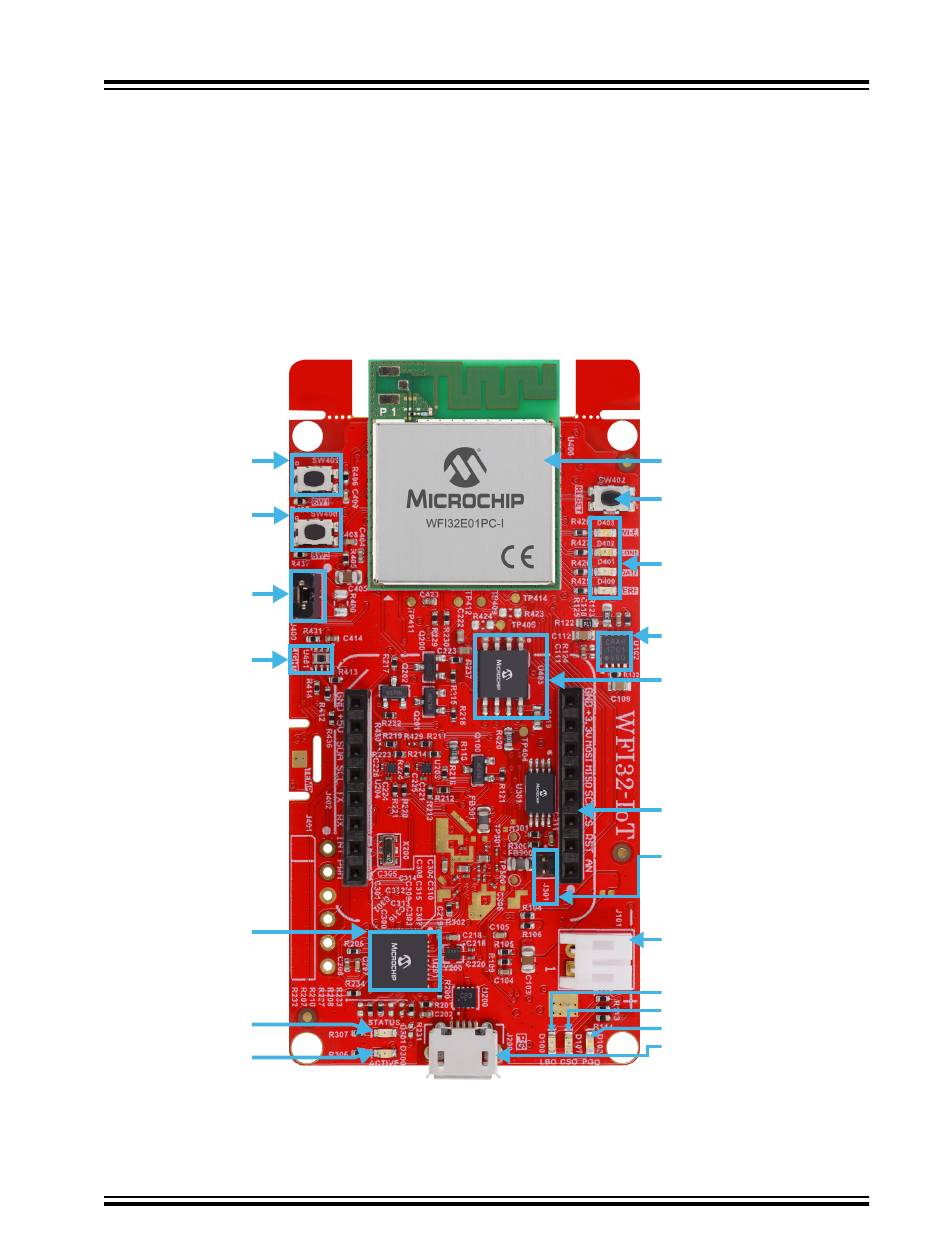

Figure 2-1. WFI32-IoT Board (EV36W50A) – Top View
User Configurable
Switch1 (SW401)
User Configurable
Switch2 (SW400)
Power Measurement
Header (J400)
Ambient Light
Sensor (U401)
USB Hub IC (U201)
Status LED (D301)
Active LED (D300)
©
2022 Microchip Technology Inc.
and its subsidiaries
User Guide
EV36W50A
Kit Overview
WFI32E01PC Module
Reset Switch (SW402)
User Configurable LEDs
(D400, D401, D402 and D403)
Voltage Regulator (U102)
SPI Flash (U403)
mikroBUS™ Socket (J402)
Erase Header (J301)
Battery Header (J101)
Red LED (D100)
Green LED (D101)
Blue LED (D102)
PKOB4 Micro-B USB (J200)
(Debug USB)
