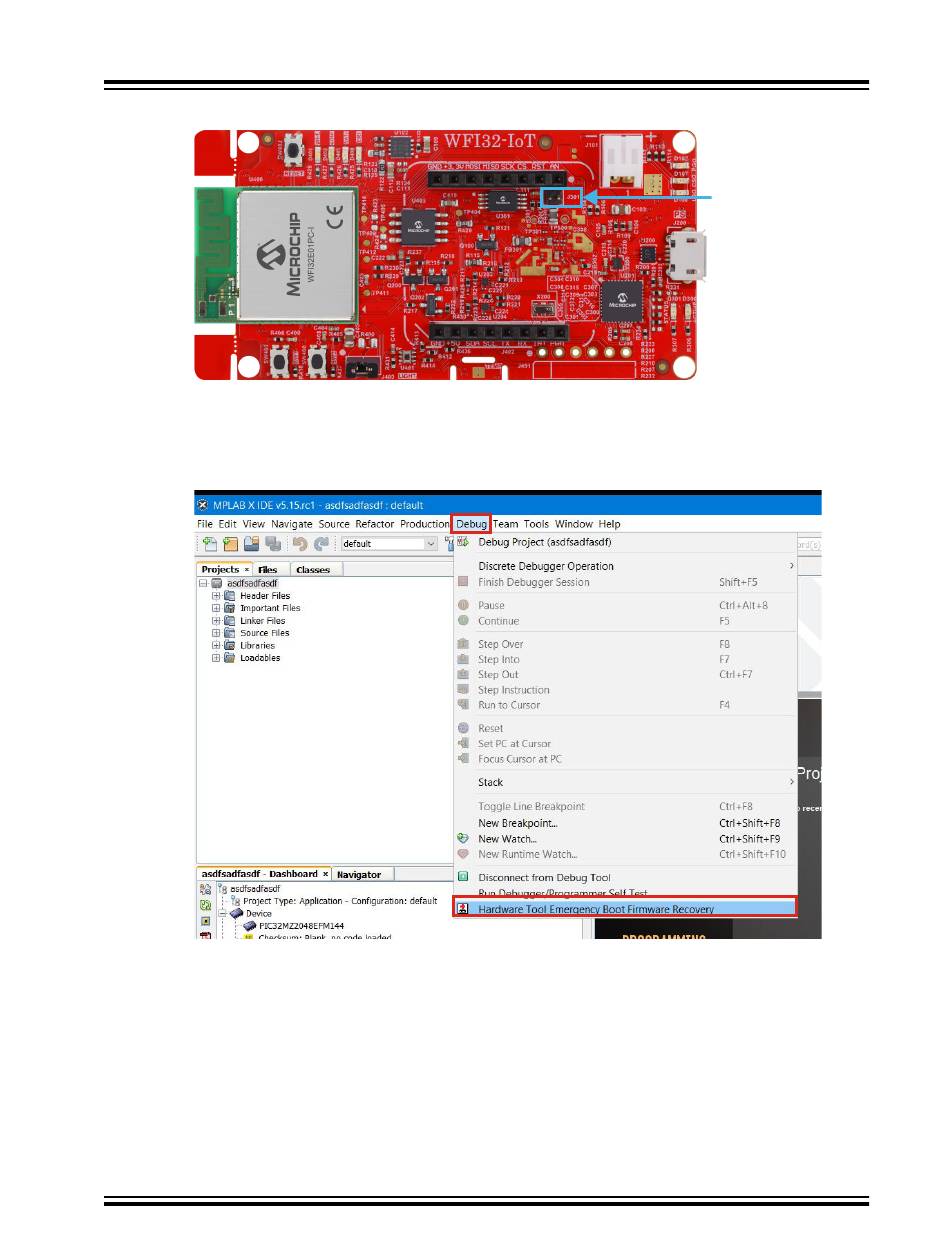

Figure 3-3. WFI32-IoT Board (EV36W50A) – Recovery Method

Open the latest version of MPLAB X IDE.

The following figure illustrates the opening window of the MPLAB X IDE. From the "Debug" drop-down list,

select Hardware Tool Emergency Boot Firmware Recovery.

Figure 3-4. MPLAB

Follow the instructions shown in the preceding figure to bring the tool back to factory condition. For additional

information on the MPLAB PKOB4, refer to the MPLAB

(DS50002751) and MPLAB Snap In-Circuit Debugger User's Guide (DS50002787).

3.3

USB Connectivity

The WFI32E01PC module has an integrated full-speed USB peripheral. This feature enables the user to implement

USB functionality through the Micro-AB USB connector (J200) on the WFI32-IoT board.

2022 Microchip Technology Inc.

and its subsidiaries

X IDE Opening Window

™

PICkit

4 In-Circuit Debugger User's Guide

User Guide

EV36W50A

Hardware

Connector (J301)

DS50003262A-page 11
