Introduction

1.1

Features

• PIC16F15376-I/MV Microcontroller
• One Yellow User LED
• One Mechanical User Switch
• Footprint for 32.768 kHz Crystal
• On-Board Debugger:
– Board identification in Microchip MPLAB
– One green power and status LED
– Programming and debugging
– Virtual COM port (CDC)
– One logic analyzer channel (DGI GPIO)
• USB Powered
• Adjustable Target Voltage:
– MIC5353 LDO regulator controlled by the on-board debugger
– 2.3-5.1V output voltage (limited by USB input voltage)
– 500 mA maximum output current (limited by ambient temperature and output voltage)
1.2

Kit Overview

The Microchip PIC16F15376 Curiosity Nano Evaluation Kit is a hardware platform to evaluate the PIC16F15376
microcontroller.

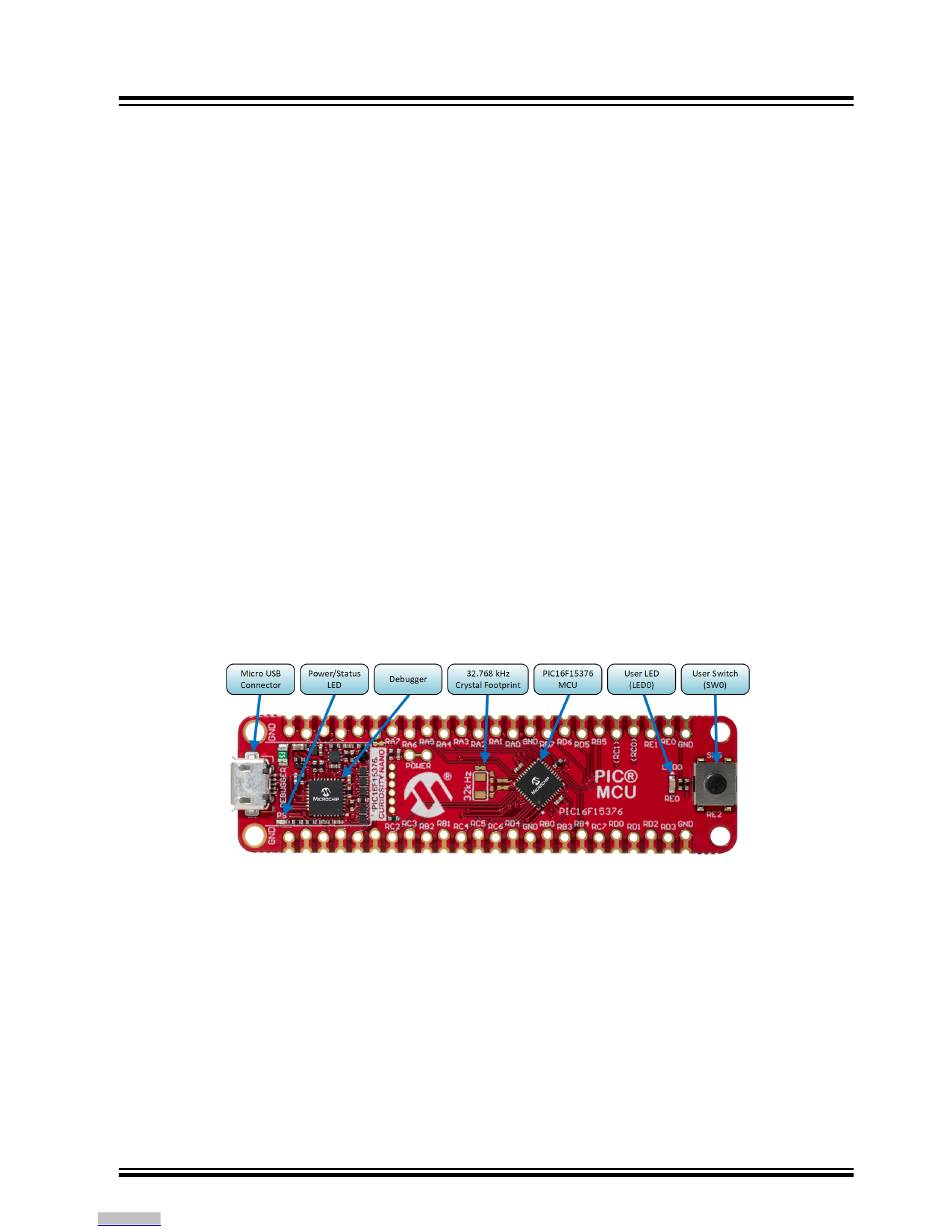

Figure 1-1. PIC16F15376 Curiosity Nano Evaluation Kit Overview
©
