Introduction; Features; Kit Overview - Microchip Technology PIC18F57Q43 Curiosity Nano Hardware User's Manual

1.

Introduction

1.1

Features

• PIC18F57Q43-I/PT Microcontroller
• One Yellow User LED
• One Mechanical User Switch
• Footprint for 32.768 kHz Crystal
• On-Board Debugger:
– Board identification in Microchip MPLAB
– One green power and status LED
– Programming and debugging
– Virtual serial port (CDC)
– One debug GPIO channel (DGI GPIO)
• USB Powered
• Adjustable Target Voltage:
– MIC5353 LDO regulator controlled by the on-board debugger
– 1.8-5.1V output voltage (limited by USB input voltage)
– 500 mA maximum output current (limited by ambient temperature and output voltage)
1.2

Kit Overview

The Microchip PIC18F57Q43 Curiosity Nano Evaluation Kit is a hardware platform to evaluate the PIC18F57Q43
microcontroller.

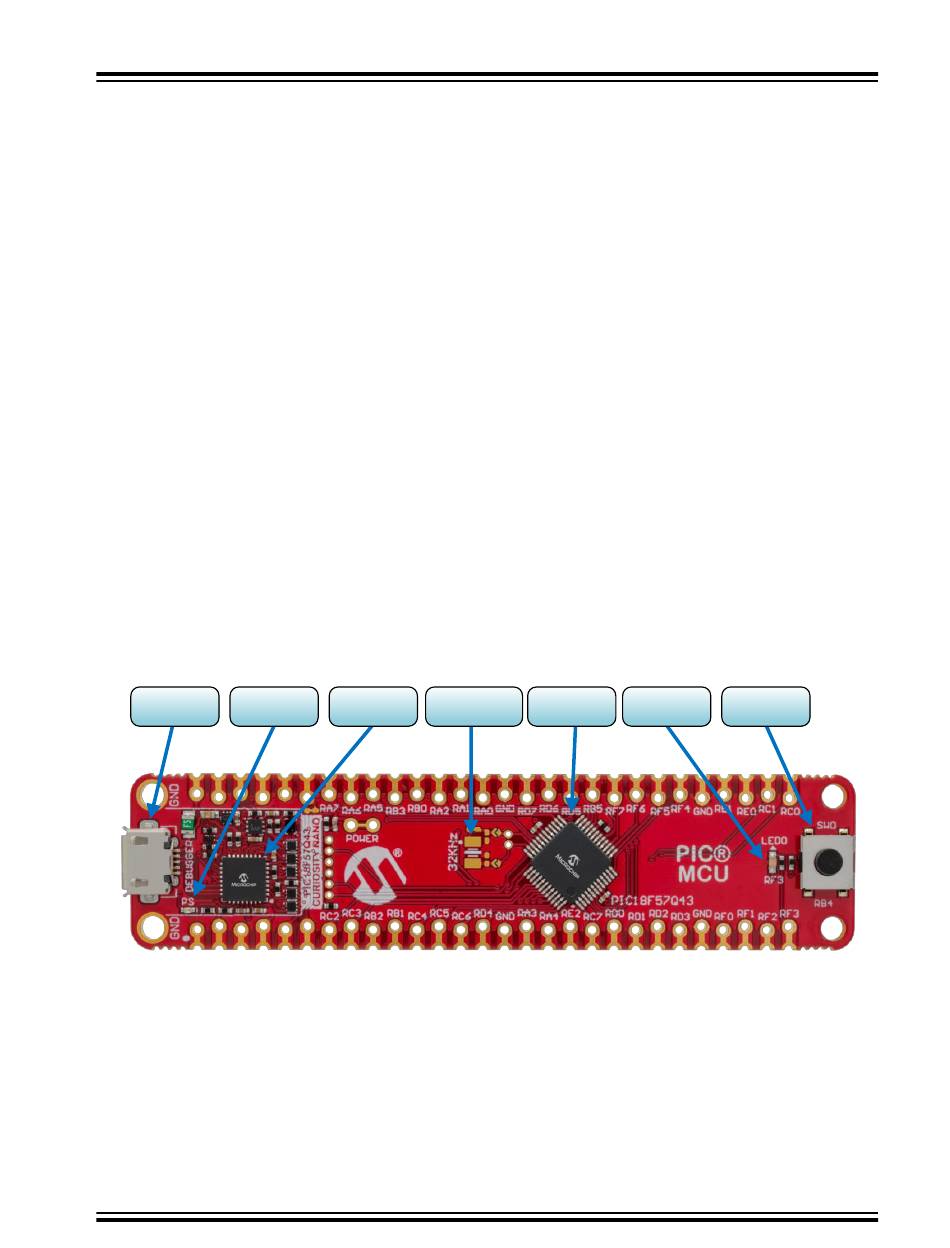

Figure 1-1. PIC18F57Q43 Curiosity Nano Evaluation Kit Overview
Micro USB
Connector
©
2020 Microchip Technology Inc.
Power/Status
Debugger
LED
PIC18F57Q43 Curiosity Nano
®
X IDE
32.768 kHz PIC18F57Q43
Crystal footprint MCU
Introduction
User LED User Switch
(LED0) (SW0)
DS40002186A-page 3
