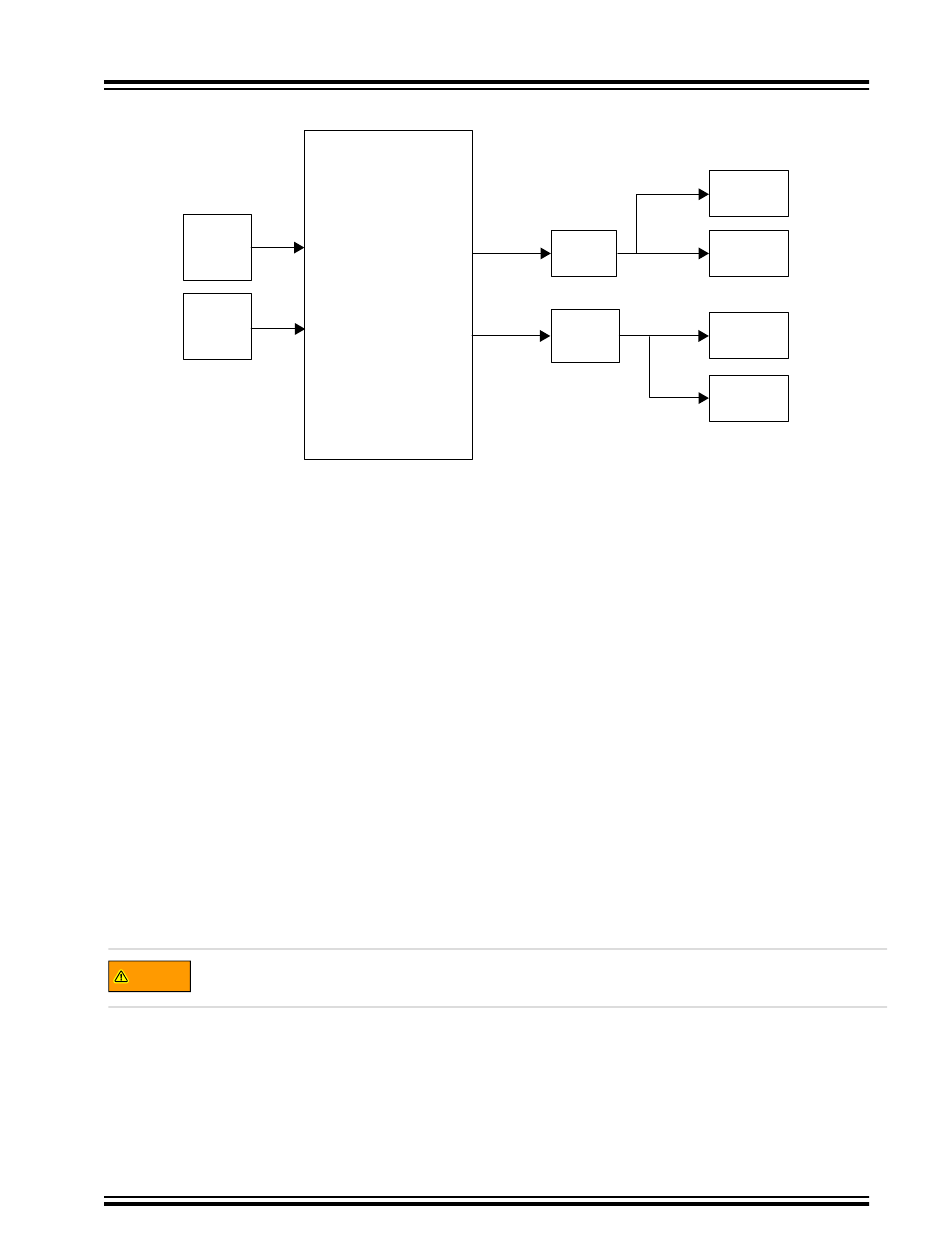

Figure 3-2. WFI32-IoT Board Power Supply Block Diagram
USB
Battery
Connector
PKOB4 Micro-B USB (Debug USB) (J200)
The Debug USB (J200) supplies power to the WFI32-IoT board from the host PC using Type-A male to Micro-B USB
cable.
Note: The maximum available current from the Debug USB (J200) is limited to 500 mA. The current is shared
between charging the external battery (if connected) and the target application section.
Battery Header (J101)
Connect a 4.2V Li-ion/Li-Po battery to the battery header (J101).
Notes:
1. The 4.2V Li-ion/Li-Po battery is not a part of the EV36W50A kit.
2. The minimum recommended battery capacity is 400 mAh with a battery charge voltage of 4.2V.
3. Uses a standard battery connector, which is a 2 pin, 2 mm pitch and right angle male battery header.
3.1.1 Li-ion/Li-Po Battery Charger (U101)
The WFI32-IoT board features an on-board MCP73871 Li-ion/Li-Po battery charger. The battery management circuit
automatically handles the selection between the USB power supply and battery supply. The current is shared
between charging the battery (if connected) and the target application section. For more details on the MCP73871
Li-ion/Li-Po battery charger, refer to the Stand-Alone System Load Sharing and Li-Ion/Li-Polymer Battery Charge
Management Controller Data Sheet (DS20002090).
Note: The charger is configured to limit the charge current to 100 mA to prevent the overcharging of small capacity
batteries.
The MCP73871 has a battery charge voltage of 4.2V and ensures that the battery has the same charge
WARNING
voltage.
3.1.2 Voltage Regulators (U102 and U104)
The following are the two on-board MCP1727 voltage regulators on the WFI32-IoT board that generate +3.3V power
supply:
• U102 – Generates +3.3V that powers the WFI32E01PC module along with the associated circuits
©
