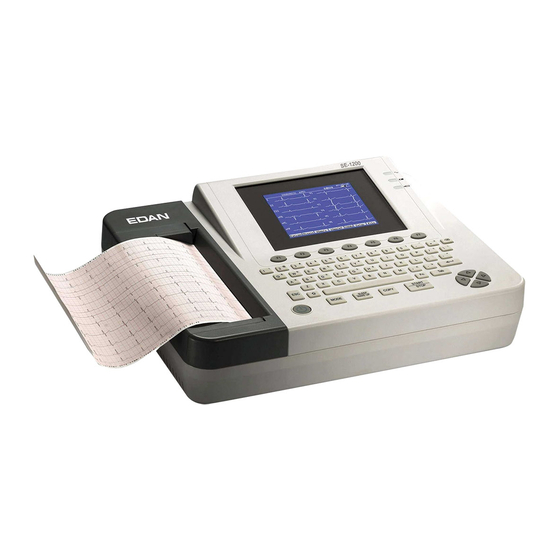

EDAN SE-1200 Series User Manual
Hide thumbs Also See for SE-1200 Series:
Table of Contents

Advertisement

Quick Links

EDAN Agile PLM Electronic Signature Information
--Signatures related to this document and performed in EDAN Agile PLM.
文件名称:SE-1200系列说明书_英文
文件编号:01.54.106764
版本:2.1
产品型号:SE-1200 Express;SE-1200
项目编码:2082C000
签批信息:
作者 : 肖, 丽军 (xiaolijun)
2016-01-07 17:18:55
审核人 : 陈, 勇强 (chenyongqiang)
2016-01-07 17:57:31
审核人 : 肖, 玉华 (xiaoyuhua)
2016-01-07 17:34:53
审核人 : 童, 晓密 (tongxiaomi)
2016-01-07 17:29:18
批准人 : 黄, 玉平 (huangyuping)
2016-01-08 14:30:45
版权©深圳市理邦精密仪器股份有限公司

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SE-1200 Series and is the answer not in the manual?

Questions and answers

Robert Ha
May 30, 2025

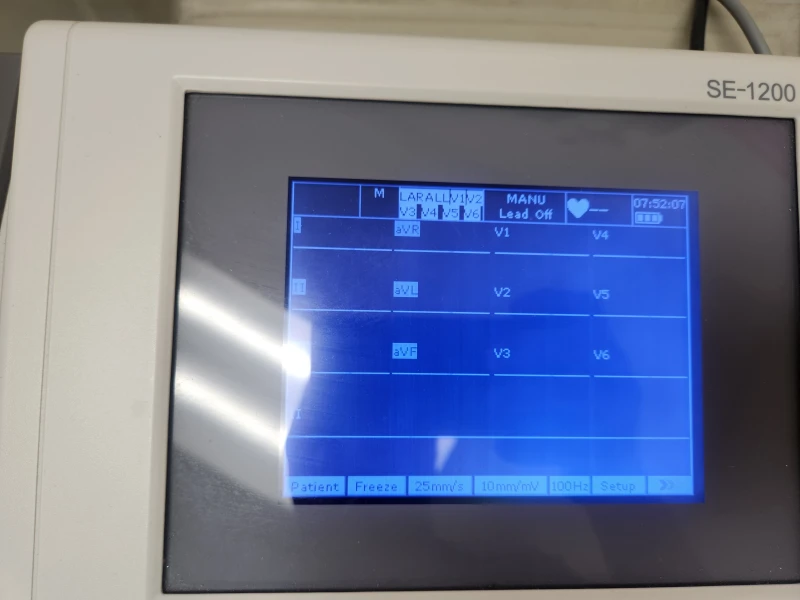

EKG machine does not read any LEAD from the patient.

User image 6838fbdcbb2d2
1 comments:
Mr. Anderson
May 30, 2025

If the EDAN SE-1200 Series EKG machine does not read any lead from the patient and displays a "Lead Off" hint, it may be due to the corresponding electrodes not being connected well. Check the Lead Name area on the main screen to identify which lead is off (highlighted name). Ensure the electrode is properly attached to the patient's skin and that the patient cable socket is firmly connected. If the issue persists, contact the manufacturer or local distributor.

This answer is automatically generated

Summary of Contents for EDAN SE-1200 Series

  • Page 1 EDAN Agile PLM Electronic Signature Information --Signatures related to this document and performed in EDAN Agile PLM. 文件名称:SE-1200系列说明书_英文 文件编号:01.54.106764 版本:2.1 产品型号:SE-1200 Express;SE-1200 项目编码:2082C000 签批信息: 作者 : 肖, 丽军 (xiaolijun) 2016-01-07 17:18:55 审核人 : 陈, 勇强 (chenyongqiang) 2016-01-07 17:57:31 审核人 : 肖, 玉华 (xiaoyuhua) 2016-01-07 17:34:53 审核人...
  • Page 3 This manual will help you understand the operation and maintenance of the product better. It is reminded that the product shall be used strictly complying with this manual. User’s operation failing to comply with this manual may result in malfunction or accident for which EDAN INSTRUMENTS, INC. (hereinafter called EDAN) cannot be held liable.
  • Page 4 The instrument is used in accordance with the instructions for use. Upon request, EDAN may provide, with compensation, necessary circuit diagrams, and other information to help qualified technician to maintain and repair some parts, which EDAN may define as user serviceable.
  • Page 5: Table Of Contents

    Table of Contents Chapter 1 Safety Guidance ......................1 1.1 Indications for Use/Intended Use ................... 1 1.2 Warnings and Cautions ......................1 1.2.1 Safety Warnings ....................... 2 1.2.2 Li-ion Battery Care Warnings ..................5 1.2.3 General Cautions ......................6 1.3 List of Symbols ........................7 Chapter 2 Introduction ........................
  • Page 6 4.2 Configuring the Electrocardiograph ..................37 4.3 Screen Description ........................ 38 4.3.1 About the Main Screen ....................38 4.3.2 About the System Setup Screen ..................42 4.3.3 About the Order Manager Screen ................... 43 4.3.4 About the File Manager Screen ..................44 4.4 Work Mode Description......................
  • Page 7 8.4 Searching Orders ........................70 8.5 Setting Orders ........................71 8.5.1 Factory Defaults of Orders ..................... 71 8.5.2 Order Setup ........................71 Chapter 9 Managing Files ......................73 9.1 Transmitting Files ......................... 73 9.2 Exporting Files ........................73 9.3 Deleting Files ........................74 9.4 Searching Files ........................
  • Page 8 13.2 Cleaning ..........................110 13.2.1 Cleaning the Main Unit ....................111 13.2.2 Cleaning the Patient Cable ..................111 13.2.3 Cleaning the Reusable Electrodes ................111 13.3 Disinfection ........................112 13.3.1 Disinfecting the Main Unit..................112 13.3.2 Disinfecting the Patient Cable ..................112 13.3.3 Disinfecting the Reusable Electrodes .................
  • Page 9: Chapter 1 Safety Guidance

    1.1 Indications for Use/Intended Use The intended use of SE-1200 series electrocardiograph is to acquire ECG signals from adult and pediatric patients through body surface ECG electrodes. The electrocardiograph is only intended to be used in hospitals or healthcare facilities by doctors and trained healthcare professionals. The cardiogram recorded by the electrocardiograph can help users to analyze and diagnose heart disease.
  • Page 10: Safety Warnings

    SE-1200 Series Electrocardiograph User Manual Safety Guidance 1.2.1 Safety Warnings WARNING 1. The electrocardiograph is intended to be used by qualified physicians or personnel professionally trained. They should be familiar with the contents of this user manual before operation. 2. Only qualified service engineers can install this equipment, and only service engineers authorized by the manufacturer can open the shell.
  • Page 11 SE-1200 Series Electrocardiograph User Manual Safety Guidance WARNING 13. If reusable electrodes with electrode gel are used during defibrillation, the electrocardiograph recovery will take more than 10 seconds. The manufacturer recommends the use of disposable electrodes at all times. 14. Electrodes of dissimilar metals should not be used; otherwise it may cause a high polarization voltage.
  • Page 12 SE-1200 Series Electrocardiograph User Manual Safety Guidance WARNING 25. Any non-medical equipment (such as the external printer) is not allowed to be used within the patient vicinity (1.5m/6ft.). 26. Do not exceed the maximum permitted load when using the multiple portable socket-outlet(s) to supply the system.
  • Page 13: Li-Ion Battery Care Warnings

    SE-1200 Series Electrocardiograph User Manual Safety Guidance WARNING 33. If multiple instruments are connected to a patient, the sum of the leakage currents may exceed the limits given in the IEC/EN 60601-1 and may pose a safety hazard. Consult your service personnel.
  • Page 14: General Cautions

    SE-1200 Series Electrocardiograph User Manual Safety Guidance WARNING 3. DANGER OF EXPLOSION -- Do not reverse the anode and the cathode when installing the battery. 4. Do not heat or splash the battery or throw it into fire or water.
  • Page 15: List Of Symbols

    SE-1200 Series Electrocardiograph User Manual Safety Guidance CAUTION 5. Ruptured fuse must only be replaced with that of the same type and rating as the original. 6. The device and accessories are to be disposed of according to local regulations after their useful lives.
  • Page 16 SE-1200 Series Electrocardiograph User Manual Safety Guidance Net port Alternating Current Battery check Battery recharging indicator Delete key Enter key Esc key/Reset key Shift key Fn key Power On/Off key 1mV/COPY key MODE key SLEEP/WAKE UP key - 8 -...
  • Page 17 SE-1200 Series Electrocardiograph User Manual Safety Guidance PRINT/STOP key Tab key/Feed paper key UP/DOWN Arrow key LEFT/RIGHT Arrow key / Lead switch key Gender key Age Group key General symbol for recovery/recyclable Part Number SERIAL NUMBER Date of manufacture MANUFACTURER...
  • Page 18 SE-1200 Series Electrocardiograph User Manual Safety Guidance With respect to electrical shock, fire and mechanical hazards only in accordance with UL 60601-1 and CAN/CSA C22.2 No. 601.1 Caution: Federal (U.S.) law restricts this device to sale by or on the order of a physician.
  • Page 19: Chapter 2 Introduction

    Introduction Chapter 2 Introduction SE-1200 series electrocardiograph gathers ECG signals of 12 leads simultaneously. It displays the operation menu, ECG parameters as well as electrocardiograms. The 12-channel ECG waves can be viewed on the LCD screen and printed out by using a high-quality thermal recorder.
  • Page 20: Keyboard And Keys

    SE-1200 Series Electrocardiograph User Manual Introduction Indicators LCD Screen Recorder Keyboard Figure 2-2 SE-1200 2.2 Keyboard and Keys Figure 2-3 SE-1200 Express/SE-1200 Keyboard - 12 -...
  • Page 21 SE-1200 Series Electrocardiograph User Manual Introduction Name Explanation Function Key Press to select menu functions on the screen. Press to quickly select the gender for the patient when Gender Key Gender is selected in the Patient Information Setup window. Delete Key Press to delete characters.
  • Page 22: Front Panel

    SE-1200 Series Electrocardiograph User Manual Introduction Press to select a working mode among the auto, manual, rhythm, R-R analysis and VCG (only configurable for SE-1200 Express) modes. MODE NOTE: Only if a working mode is selected in the Work Mode Setup window, can the working mode be selected by pressing the MODE key when the main screen is displayed.
  • Page 23: Rear Panel

    SE-1200 Series Electrocardiograph User Manual Introduction Figure 2-5 SE-1200 Front Panel Symbol Name Explanation Mains supply When the device is powered by the mains supply, indicator this indicator is lit. When the device is powered by battery, this Battery indicator indicator is lit.
  • Page 24: Right Panel

    SE-1200 Series Electrocardiograph User Manual Introduction 2.5 Right Panel Figure 2-7 SE-1200 Express/SE-1200 Right Panel Name Explanation Patient Cable Socket Connecting to the patient cable Serial Port 1 Connecting to a PC USB Socket 1 (Optional) Standard USB socket, connecting to a PC...
  • Page 25 SE-1200 Series Electrocardiograph User Manual Introduction Definitions of corresponding pins: Signal Signal Signal C2 / V2 F / LL C1 / V1 C3 / V3 or NC C4 / V4 C1 / V1 RF (N) /RL C5 / V5 R / RA...
  • Page 26 SE-1200 Series Electrocardiograph User Manual Introduction Definitions of corresponding pins: Signal Signal TxD (output) RxD (input) 4) External Input/Output Socket Definitions of corresponding pins: Signal Signal ECG Signal (input) ECG Signal (output) 5) USB Socket 1/USB Socket 2 (Optional) CAUTION Only the USB equipment recommended by the manufacturer can be connected to the USB interface.
  • Page 27: Bottom Panel

    SE-1200 Series Electrocardiograph User Manual Introduction WARNING 1. Accessory equipment connected to the analog and digital interfaces must be certified according to the respective IEC/EN standards (e.g. IEC/EN 60950 for data processing equipment and IEC/EN 60601-1 for medical equipment). Furthermore all configurations shall comply with the valid version of the standard IEC/EN 60601-1-1.
  • Page 28: Features

    SE-1200 Series Electrocardiograph User Manual Introduction Label Position for product information label 1) Battery Compartment The rated voltage and the rated capacity of the battery pack are as follows: SE-1200 Express: Rated Voltage: 14.8V; Rated Capacity: 2500mAh or 5000mAh SE-1200: Rated Voltage: 14.8V; Rated Capacity: 2500mAh WARNING 1.
  • Page 29 SE-1200 Series Electrocardiograph User Manual Introduction are displayed and recorded simultaneously ♦ Correct detection for failure electrodes ♦ Convenient operation of recording by pressing the PRINT/STOP key with high efficiency ♦ High resolution thermal recorder, recording frequency response ≤150Hz ♦...
  • Page 30: Chapter 3 Operation Preparations

    SE-1200 Series Electrocardiograph User Manual Operation Preparations Chapter 3 Operation Preparations WARNING Before use, the equipment, patient cable and electrodes should be checked. Replace them if there is any evident defectiveness or aging which may impair the safety or the performance, and make sure that the equipment is in proper working condition.
  • Page 31: Preparing The Patient

    SE-1200 Series Electrocardiograph User Manual Operation Preparations Table 3-1 Electrode Connectors and Their Identifiers and Color Codes Electrode Connectors Identifier Color Code Identifier Color Code Right arm/Right deltoid White Left arm/Left deltoid Yellow Black Right leg/Upper leg as N or RF...
  • Page 32: Attaching Electrodes To The Patient

    SE-1200 Series Electrocardiograph User Manual Operation Preparations To Prepare the Skin Shave hair from electrode sites, if necessary. Excessive hair prevents a good connection. Wash the area thoroughly with soap and water. Dry the skin with a gauze pad to increase capillary blood flow to the tissues and to remove the dead, dry skin cells and oils.
  • Page 33 SE-1200 Series Electrocardiograph User Manual Operation Preparations Electrode Placement Fourth intercostal space at the right border of the sternum Fourth intercostal space at the left border of the sternum Fifth rib between C2 and C4 Fifth intercostal space on the left midclavicular line...
  • Page 34: Attaching The Reusable Electrodes

    SE-1200 Series Electrocardiograph User Manual Operation Preparations Frank Lead Placement (for VCG) Electrode Placement Right mid-axillary line on the same horizontal level as C3 and C4 Sternum at the level of C3 and C4 Mid-clavicular line in the fifth intercostals space...
  • Page 35: Attaching The Chest Electrodes

    SE-1200 Series Electrocardiograph User Manual Operation Preparations Limb Electrode Connection: 1) Ensure that the electrodes are clean; 2) Clean the electrode area which is a short distance above the ankle or the wrist with 75% alcohol; 3) Daub the electrode area on the limb with gel evenly;...
  • Page 36: Inspection Before Power-On

    SE-1200 Series Electrocardiograph User Manual Operation Preparations Disposable Electrode: Alligator Clip: Disposable electrodes must be used together with alligator clips. Disposable Electrode Connection 1) Align all lead wires of the patient cable to avoid twisting, and connect the alligator clips to the lead wires.
  • Page 37: Turning On/Off The Electrocardiograph

    SE-1200 Series Electrocardiograph User Manual Operation Preparations 1) Environment: ♦ Make sure that there is no electromagnetic interference source around the equipment, especially large medical electrical equipment such as electrosurgical equipment, radiological equipment, magnetic resonance imaging equipment etc. Turn off these devices when necessary.
  • Page 38 SE-1200 Series Electrocardiograph User Manual Operation Preparations The electrocardiograph can be powered by either the mains supply or the battery. To turn on the Electrocardiograph: ♦ When operating on AC power Make sure that the mains supply meets the requirements (refer to A1.4 Power Supply...
  • Page 39: Loading/Replacing Recorder Paper

    SE-1200 Series Electrocardiograph User Manual Operation Preparations NOTE: 1. When turning off the device, follow the above sequence strictly, or else there may be something wrong on the screen. 2. Do not hold down the key when the device displays the hint information System is shutting down…...
  • Page 40 SE-1200 Series Electrocardiograph User Manual Operation Preparations Loading/Replacing Process of Folded Paper: 1) Press the casing button downwards and remove the casing to open the recorder. 2) Remove the remainder paper from the paper tray if necessary. 3) Take off the wrapper of the new folded paper, and then put it in the paper tray.
  • Page 41 SE-1200 Series Electrocardiograph User Manual Operation Preparations 5) Press down the recorder casing firmly. 6) Advance the recorder paper. When the main screen is displayed, if Paper Marker is set to Yes, you can press to advance the recorder paper to the next black marker; if Paper Marker is set to No, you can press to advance the paper for 2.5cm.
  • Page 42 SE-1200 Series Electrocardiograph User Manual Operation Preparations 5) Pull the paper out with the grid side facing the thermal print head, and replace the casing on the recorder. 6) Press down the recorder casing firmly. 7) Set Paper Marker to No in the Record Info Setup1 window.
  • Page 43: Chapter 4 Basic Operation Guidance

    SE-1200 Series Electrocardiograph User Manual Basic Operation Guidance Chapter 4 Basic Operation Guidance The following sections provide an overview of the main operations and functions. You can operate the electrocardiograph by using the touch screen (optional). CAUTION Do not touch the LCD screen with sharp things such as pencils or pens; otherwise, it will be damaged.
  • Page 44: Entering Data

    SE-1200 Series Electrocardiograph User Manual Basic Operation Guidance 4.1.2 Entering Data Take the Patient Information window for example: 1. Press F1 below Patient on the main screen1 to open the Patient Information window. 2. Press Tab or Shift + Tab to move the cursor to the Name textbox.
  • Page 45: Selecting An Item

    SE-1200 Series Electrocardiograph User Manual Basic Operation Guidance 4.1.3 Selecting an Item Take the Work Mode Setup window for example: Check Box Textbox Dropdown List Box 1. In the Work Mode Setup window, press Tab or Shift + Tab to move the cursor among different check boxes.
  • Page 46: Screen Description

    SE-1200 Series Electrocardiograph User Manual Basic Operation Guidance 4.3 Screen Description 4.3.1 About the Main Screen After the electrocardiograph is turned on, the main screen appears. Figure 4-1 SE-1200 Express Main Screen1 B C D Figure 4-2 SE-1200 Main Screen1...
  • Page 47 SE-1200 Series Electrocardiograph User Manual Basic Operation Guidance Figure 4-3 SE-1200 Express Main Screen2 Figure 4-4 SE-1200 Main Screen2 Name Explanation Patient Name: within 60 ASCII characters or the equivalent Name number of other characters that can be supported by equivalent...
  • Page 48 SE-1200 Series Electrocardiograph User Manual Basic Operation Guidance When ID Mode is set to Auto, ID can be automatically generated after you press Shift+Bksp to refresh the patient information. The patient ID is 0~1999, 999, 999. When ID Mode is set to Time, press Shift+Bksp to refresh the...
  • Page 49 SE-1200 Series Electrocardiograph User Manual Basic Operation Guidance Battery Symbol Identify the current capacity of the battery Press to open the main screen2. Press to display the System Setup screen. For details, please refer Setup to Chapter 10 “System Setup”.
  • Page 50: About The System Setup Screen

    SE-1200 Series Electrocardiograph User Manual Basic Operation Guidance 4.3.2 About the System Setup Screen Select Setup on the main screen1 to display the System Setup screen. NOTE: If you set the system password in the System Maintenance window, you need enter the password before opening the System Setup screen.
  • Page 51: About The Order Manager Screen

    SE-1200 Series Electrocardiograph User Manual Basic Operation Guidance 4.3.3 About the Order Manager Screen Select Order on the main screen2 to open the Order Manager screen. You can press Load to load orders and select a loaded order to start an order examination.
  • Page 52: About The File Manager Screen

    SE-1200 Series Electrocardiograph User Manual Basic Operation Guidance Return Press to return to the main screen1. Del All Press to delete all the orders from the electrocardiograph. Delete Press to delete the selected order from the electrocardiograph. Search Press to search for orders on the Order Manager screen.
  • Page 53 SE-1200 Series Electrocardiograph User Manual Basic Operation Guidance Figure 4-6 File Manager Screen1 Figure 4-7 File Manager Screen2 - 45 -...
  • Page 54 SE-1200 Series Electrocardiograph User Manual Basic Operation Guidance Name Explanation For example, 0% (1) space occupancy files stored File Count electrocardiograph. 1 is the current number of files stored in the electrocardiograph. Files will be loaded and displayed in the file list.
  • Page 55: Work Mode Description

    SE-1200 Series Electrocardiograph User Manual Basic Operation Guidance 4.4 Work Mode Description There are five work modes in SE-1200 series electrocardiograph. AUTO: In the auto mode, the ECG data can be analyzed, saved, printed and transmitted. The lead groups are switched automatically according to the lead sequence during the printing course.
  • Page 56: Chapter 5 Entering Patient Information

    SE-1200 Series Electrocardiograph User Manual Entering Patient Information Chapter 5 Entering Patient Information 5.1 Entering Patient Information Manually Operation procedures are as follows: 1. Configure the Patient Information Setup window. (Optional) 1) Select the desired items. 2) Select a mode from the ID list box.
  • Page 57: Entering Patient Information By Using A Reader (Optional)

    SE-1200 Series Electrocardiograph User Manual Entering Patient Information Race Patient Race (unknown/ Oriental/ Caucasian/ Black/ Indian/ Mongolian/ Hispanic/ Asian/ Pacific/ Chinese/ Malay/ other) Pacemaker Select Yes to detect very small pacemaker pulses. However, when Pacemaker is set to Yes, the system is very sensitive, and should not be close to equipment emitting high frequency radiation.
  • Page 58 SE-1200 Series Electrocardiograph User Manual Entering Patient Information 4. Select Order Acquired function. 1) Select Setup-> Patient Info to open the Patient Information Setup window. 2) Select On from the Order Acquired list box, and then press Enter to confirm.
  • Page 59: Chapter 6 Printing Ecg Reports

    SE-1200 Series Electrocardiograph User Manual Printing ECG Reports Chapter 6 Printing ECG Reports NOTE: 1. The working mode cannot be changed during the printing course. Stop printing reports before changing the working mode. 2. Within three seconds after returning to the main screen, if you press the PRINT/STOP key to print an ECG report in the auto quick mode or the manual mode, the recorder will not respond.
  • Page 60: Manual Mode

    SE-1200 Series Electrocardiograph User Manual Printing ECG Reports 2. Print an auto ECC report. 6.1.2 Manual Mode In the manual mode, the sampling or print time can be adjusted manually according to clinic needs. ECG data of arbitrary length can be sampled or printed.
  • Page 61: Rhythm Mode

    SE-1200 Series Electrocardiograph User Manual Printing ECG Reports 6.1.3 Rhythm Mode The rhythm mode contributes to discover the abiogenetic or frequent arrhythmia. The rhythm-lead ECG waveform of one lead or three leads can be sampled or printed for a long time.
  • Page 62: R-R Analysis Mode

    SE-1200 Series Electrocardiograph User Manual Printing ECG Reports 6.1.4 R-R Analysis Mode The R-R analysis mode contributes to get the related indicators of HRV (Heart Rate Variability). HRV analysis refers to the variability between durations of the two following heart rates, and it is a predicted indicator to sudden death caused by acute myocardial infarction and vicious arrhythmia.
  • Page 63: Vcg Mode (Only Configurable For Se-1200 Express)

    SE-1200 Series Electrocardiograph User Manual Printing ECG Reports 6.1.5 VCG Mode (Only Configurable for SE-1200 Express) VCG (Vectorcardiogram) is stereo images to show phase shifts of heart activities. As an advance and a complement to the cardiogram diagnosis, VCG excels in diagnosis of myocardial infarction, intraventricular conduction block and ventricular hypertrophy.
  • Page 64 SE-1200 Series Electrocardiograph User Manual Printing ECG Reports 3. If Preview is set to On in the Work Mode Setup window, pressing the PRINT/STOP key can preview an ECG report. 4. Select Next Page to view the loop and measurement information, and select Record to print the report.
  • Page 65: Copy Printing

    SE-1200 Series Electrocardiograph User Manual Printing ECG Reports 6.2 Copy Printing In the auto, rhythm and VCG (only configurable for SE-1200 Express) modes, pressing the 1mV/COPY key can print the ECG report which was printed out last time. Pressing the PRINT/STOP key can stop printing the ECG report.
  • Page 66 SE-1200 Series Electrocardiograph User Manual Printing ECG Reports Figure 6-1 Freezing Screen (Auto/Manual/Rhythm/R-R Analysis mode) Figure 6-2 VCG Freezing Screen (only configurable for SE-1200 Express) NOTE: Within 10 seconds after returning to the main screen, pressing F2 cannot display the freezing screen.
  • Page 67: Printing A Stored Ecg Report

    SE-1200 Series Electrocardiograph User Manual Printing ECG Reports 6.4 Printing a Stored ECG Report 6.4.1 Printing on the File Manager Screen1/2 Operation Method: 1. Select a file on the File Manager screen1. 2. Press PRINT/STOP to print the file, or press Select to display the File Manager screen2, and then press PRINT/STOP to print the file.
  • Page 68: Ecg Reports

    SE-1200 Series Electrocardiograph User Manual Printing ECG Reports 6.5 ECG Reports 6.5.1 Auto ECG Report Quick Mode - 60 -...
  • Page 69 SE-1200 Series Electrocardiograph User Manual Printing ECG Reports The above figure (a) and (b) show an ECG report in the auto mode. Template is selected, and Record Style is set to 6×2+1R. The ECG report includes: 6×2+1R ECG waves Current Date and Time...
  • Page 70 SE-1200 Series Electrocardiograph User Manual Printing ECG Reports beat from lead V5 / The maximum absolute value of the amplitude of S or S’ wave of one selected dominant beat from lead V1; RV5+SV1 Sum of RV5 and SV1; (optional) RV6/SV2 The maximum of the amplitude of R or R’...
  • Page 71 SE-1200 Series Electrocardiograph User Manual Printing ECG Reports Save Paper Mode The above figure (a) and (b) show an ECG report in the auto mode. Template is selected, and Record Style is set to 6×2+1R. - 63 -...
  • Page 72: Auto Ecg Report Printed By The Usb Printer

    SE-1200 Series Electrocardiograph User Manual Printing ECG Reports 6.5.2 Auto ECG Report Printed by the USB Printer - 64 -...
  • Page 73: Chapter 7 Transmitting Ecg Data

    SE-1200 Series Electrocardiograph User Manual Transmitting ECG Data Chapter 7 Transmitting ECG Data 7.1 Transmitting ECG Data to the PC ECG data in DAT/PDF/SCP/FDA-XML/DICOM format can be transmitted to the PC. To transmit ECG data in DAT format, the DMS of the manufacturer must be installed in the PC. To transmit ECG data in PDF/SCP/FDA-XML/DICOM format, the FTP receiving software must be installed in the PC.
  • Page 74: Transmitting Ecg Data In Dat And Dat V1.03 Format Through Ethernet Cable

    SE-1200 Series Electrocardiograph User Manual Transmitting ECG Data 3. Set Auto Transmission to On and Transmission Mode to UART in the Transmission Setup window. 4. Log into the DMS. 5. In the auto or rhythm mode, ECG data will be transmitted through the serial cable automatically after an ECG report is printed out.
  • Page 75: Transmitting Ecg Data In Scp/Fda-Xml/Pdf/Dicom Format Through Ethernet Cable

    SE-1200 Series Electrocardiograph User Manual Transmitting ECG Data 7.1.3 Transmitting ECG Data in SCP/FDA-XML/PDF/DICOM Format Through Ethernet Cable NOTE: The SCP/FDA-XML/DICOM function can be activated on the Advanced Setup screen. For details, please contact the manufacturer or the local distributor.
  • Page 76 SE-1200 Series Electrocardiograph User Manual Transmitting ECG Data 3) After setup, click on the OK button to confirm. Connect USB socket 1 of the electrocardiograph to the USB socket of the PC by using the high-speed USB cable. For details, please contact the manufacturer or the local distributor.
  • Page 77: Chapter 8 Managing Orders

    SE-1200 Series Electrocardiograph User Manual Managing Orders Chapter 8 Managing Orders NOTE: To use the order function, the ECG data management software (DMS) of the manufacturer must be installed in the PC. 8.1 Loading Orders Before loading orders, please configure the Order Setup screen. For details, please refer to Section 8.5 “Setting Orders”.
  • Page 78: Examining Orders

    SE-1200 Series Electrocardiograph User Manual Managing Orders 8.2 Examining Orders Select an order on the Order Manager screen, and then select Examine or press Enter to return to main screen1 for starting an examination. NOTE: If you select Delete After Examination on the Order Setup screen, the order will be deleted from the Order Manager screen after you examine the selected order.
  • Page 79: Setting Orders

    SE-1200 Series Electrocardiograph User Manual Managing Orders 8.5 Setting Orders 8.5.1 Factory Defaults of Orders Items Default Condition Default Sequence Ascending Delete After Examination Deselect Exam. Room Filter Deselect 8.5.2 Order Setup Select Setup on the Order Manager screen to make settings of orders.
  • Page 80 SE-1200 Series Electrocardiograph User Manual Managing Orders Item Description Sequence Choose from: Ascending or Descending NOTE: 1. When Condition is set to State and Sequence is set to Ascending, orders without examination will be displayed on the top of the Order Manager screen.
  • Page 81: Chapter 9 Managing Files

    SE-1200 Series Electrocardiograph User Manual Managing Files Chapter 9 Managing Files If you want to save the ECG data in the electrocardiograph, you should set Auto Save to to ECG in the File Setup window. Then the ECG data in the auto or rhythm mode will be saved on the File Manager screen automatically.
  • Page 82: Deleting Files

    SE-1200 Series Electrocardiograph User Manual Managing Files 4. Or select a file on the File Manager screen1, and then press Select to display the File Manager screen2. Select Export on the File Manager screen2 to export the selected file to the directory of ECGDATA\ECG-X\Export\Export Date and Time of the U disk.
  • Page 83: Importing Files

    SE-1200 Series Electrocardiograph User Manual Managing Files 9.5 Importing Files Operation procedures are as follows: 1. Save files that you want to import to the electrocardiograph to the directory of ECGDATA of the recommended U disk. 2. Connect the U disk to the electrocardiograph.
  • Page 84: Express

    SE-1200 Series Electrocardiograph User Manual Managing Files 9.8.1 SE-12 Express Select View on the File Manager screen2 to open the file preview screen. The file preview screen displays the patient information, ECG waveform, measurement information and diagnosis information, as shown in the figure below:...
  • Page 85 SE-1200 Series Electrocardiograph User Manual Managing Files 9.8.2 SE-12 Select View on the File Manager screen2 to open the file preview screen. The File Preview screen displays the patient name, patient ID, 6-channel ECG waveform and function buttons (Waveform, Template, Measure, Diagnosis, Record and Return).
  • Page 86 SE-1200 Series Electrocardiograph User Manual Managing Files Select Measure to display the measure screen which shows the measurement information. Select Diagnosis to show Minnesota Code and Diagnosis Information. - 78 -...
  • Page 87: Chapter 10 System Setup

    SE-1200 Series Electrocardiograph User Manual System Setup Chapter 10 System Setup Select Setup on the main screen1 to display the System Setup screen. 10.1 Factory Defaults Work Mode Setup Default Items Default (Only in the U.S.) Auto, Manual, Rhythm, Mode Options...
  • Page 88 SE-1200 Series Electrocardiograph User Manual System Setup Record Info Setup1 Default Items Default (Only in the U.S.) Auto Record Style 6×2 3×4+1R Manual REC Style 6 channels 6 channels Record Mode Save Paper Save Paper Record Sequence Sequential Sequential Gain...
  • Page 89 SE-1200 Series Electrocardiograph User Manual System Setup Grid of Thermal Report Grid of USB Report Record Info Setup3 (VCG function needs to be activated) Default Items Default (Only in the U.S.) XYZ Wave / Measure / Analysis QRS Gain 20mm/mV...
  • Page 90 SE-1200 Series Electrocardiograph User Manual System Setup Order Acquired User-defined Cleared Cleared Transmission Setup Default Items Default (Only in the U.S.) Auto Transmission Transmission Mode Ethernet Ethernet FTP User Name / FTP Cleared Cleared Password/ FTP Path Transmission - WIFI Setup...
  • Page 91 SE-1200 Series Electrocardiograph User Manual System Setup Default Items Default (Only in the U.S.) Brightness Key Volume Medium Medium Hint Volume Medium Medium QRS Volume Notify Volume Medium Medium Display Colors Option 1 Option 1 Grid Date & Time Setup...
  • Page 92: Work Mode Setup

    SE-1200 Series Electrocardiograph User Manual System Setup System Password Cleared Cleared Other Setup Default Items Default (Only in the U.S.) External Input External Output Caps Lock 10.2 Work Mode Setup Select Work Mode on the System Setup screen, and then press Enter to open the Work Mode Setup window.
  • Page 93: Filter Setup

    SE-1200 Series Electrocardiograph User Manual System Setup Rhythm Style Select a style to print the ECG waves of the appointed rhythm lead. Choose from: Single Lead or Three Leads Sampling Mode Choose from: Pre-Sample, Real-time Sample, Triggered Sample or Periodic Sample...
  • Page 94 SE-1200 Series Electrocardiograph User Manual System Setup Figure 10-2 Filter Setup Window Item Description AC Filter Choose from: On or Off NOTE: AC frequency can be set to 50Hz or 60Hz on the Advanced Setup screen according local mains supply specifications.
  • Page 95: Record Info Setup

    SE-1200 Series Electrocardiograph User Manual System Setup 10.4 Record Info Setup Select Record Info on the System Setup screen, and then press Enter to open the Record Info Setup window. 10.4.1 Setup 1 Press F1 to switch to the Setup 1 window.
  • Page 96 SE-1200 Series Electrocardiograph User Manual System Setup printed on the different pieces of paper. NOTE: Only when Sampling Mode is set to Real-time Sample, Quickly is available. Record Sequence Choose from: Sequential or Synchronous Select Sequential, the lead group is printed one by one in a certain sequence.
  • Page 97: Setup 2

    SE-1200 Series Electrocardiograph User Manual System Setup 2. For details of the ECG report printed by the USB printer, please refer to 6.5.2, “ECG Reports Printed by the USB Printer”. 3. USB printing is ineffective in the auto periodic sampling mode, VCG mode,, manual mode and R-R analysis mode.
  • Page 98 SE-1200 Series Electrocardiograph User Manual System Setup Figure 10-4 Record Info Setup2 Item Description Auto Record Info Select the item printed in the ECG reports. NOTE: 1. Template, Position Marker, Measure, Analysis, Diagnosis Conclusion, and Minnesota Code are available only in the auto mode, and Time Scale and Device No.
  • Page 99: Setup 3

    SE-1200 Series Electrocardiograph User Manual System Setup 10.4.3 Setup 3 NOTE: 1. Only if the VCG function is activated, can the Record Info Setup3 window appear. For details on activating the VCG function, please contact the manufacturer or the local distributor.
  • Page 100: Patient Information Setup

    SE-1200 Series Electrocardiograph User Manual System Setup 10.5 Patient Information Setup Select Patient Info on the System Setup screen, and then press Enter to open the Patient Information Setup window. Figure 10-6 Patient Information Setup Window Item Description Patient Options Select the item displayed in the Patient Information window.
  • Page 101 SE-1200 Series Electrocardiograph User Manual System Setup Shift+Bksp to refresh the patient information. The patient ID is 0~1999, 999, 999. Select Time, press Shift+Bksp to refresh the patient information, and then the patient ID can be automatically generated according to the time when you press the PRINT/STOP key to print an ECG report.
  • Page 102: Transmission Setup

    NOTE: 1. To transmit ECG data to the PC in DAT format, the ECG data management software (DMS) of EDAN must be installed in the PC.. You should log into the DMS before transmission. 2. To transmit ECG data to the PC in DICOM/SCP/FDA-XML/PDF format, the FTP receiving software must be installed in the PC.
  • Page 103: Wifi Setup (Optional)

    SE-1200 Series Electrocardiograph User Manual System Setup Item Description Device No. If you input 0 in the Device No. textbox, after you save data to the U disk or SD card, the data will be in the directory of ECGDATA\ECG-0\Store\Examination Date of the U disk or SD card;...
  • Page 104 SE-1200 Series Electrocardiograph User Manual System Setup Figure 10-8 WIFI Setup Window NOTE: The WIFI transmission function is only available for the machine configured with the WIFI module. Item Description SSID The name of the searched wireless network. SECURITY The encryption type for the connected wireless network.
  • Page 105: Lead Setup

    SE-1200 Series Electrocardiograph User Manual System Setup Enable/Disable Press Tab to move the cursor to Enable WIFI or Disable WIFI, press Enter to enable or disable WIFI. WIFI Add WIFI If the network is on closed broadcasting, you can add it manually.
  • Page 106: Display&Sound Setup

    SE-1200 Series Electrocardiograph User Manual System Setup Item Description Rhythm Lead1/2/3 Choose from: І, П, Ш, aVR, aVL, aVF, V1, V2, V3, V4, V5, or V6 In the auto mode: When Record Style is set to 3×4+1R or 6×2+1R, the rhythm lead selected in the Rhythm Lead1 list box will be printed in the ECG reports;...
  • Page 107 SE-1200 Series Electrocardiograph User Manual System Setup Figure 10-10 Display&Sound Setup Window Item Description Brightness Set the brightness within 0~20. NOTE: For SE-1200 Express, the brightness cannot be changed. Key Volume Choose from: Low, Medium, High or Off Select Low, Medium or High, the electrocardiograph gives a short sound when you press keys on the keyboard.
  • Page 108: Date&Time Setup

    SE-1200 Series Electrocardiograph User Manual System Setup Grid Choose from: On or Off Select On, the waveforms will be displayed with a background grid. 10.9 Date&Time Setup Select Date&Time on the System Setup screen, and press Enter to open the Date&Time Setup window.
  • Page 109: File Setup

    SE-1200 Series Electrocardiograph User Manual System Setup If you enter 0 Minutes or nothing, this function will not be effective. NOTE: LCD Off time is counted from the time when you last press the keys on the keyboard. 10.10 File Setup Select File on the System Setup screen, and press Enter to open the File Setup window.
  • Page 110: System Maintenance Setup

    SE-1200 Series Electrocardiograph User Manual System Setup Delete After Trans. Choose from: On or Off Or Export Select On, the files will be automatically deleted from the File Manager screen after they are transmitted to the PC or exported to the U disk.
  • Page 111: Other Setup

    SE-1200 Series Electrocardiograph User Manual System Setup 10.12 Other Setup Select Other on the System Setup screen, press Enter to open the Other Setup window. Figure 10-14 Other Setup Window Item Description Institution Input the institution name manually within 40 ASCII characters.
  • Page 112 SE-1200 Series Electrocardiograph User Manual System Setup Item Description External Output The external output socket is equipped in the electrocardiograph, through which the electrocardiograph can send rhythm lead signals to the external equipment. Choose from: Off, Standard or Triggered Select Standard, the electrocardiograph sends ECG signals of rhythm lead 1.
  • Page 113: Chapter 11 Hint Information

    SE-1200 Series Electrocardiograph User Manual Hint Information Chapter 11 Hint Information Hint information and the corresponding causes provided by the electrocardiograph are listed in Table 11-1. Table 11-1 Hint Information and Causes Hint Information Causes Electrodes fall off the patient or the patient cable falls off the unit,...
  • Page 114: Chapter 12 Faq

    SE-1200 Series Electrocardiograph User Manual Chapter 12 FAQ 1. Operating Problems Q1: I was trying to select a file from the file list on the File Manage screen, but the file was in the middle of the long list. Is there any way to make the selection faster? A1: Actually, the system provides a method for fast moving: pressing Shift + Up or Down arrow can move the cursor up or down in the file list very fast.
  • Page 115 SE-1200 Series Electrocardiograph User Manual file? pops up every time when I save an ECG report to the electrocardiograph. What am I supposed to do? A6: Memory Full is used to remind you that the amount of stored file reaches the upper limit.
  • Page 116 SE-1200 Series Electrocardiograph User Manual Reload the paper in the paper tray, close the recorder casing firmly. If the problem still exists, please contact the manufacturer or the local distributor for further disposal. Q4: I want to print the hospital name in the report, but I can’t find the place to enter it, where is A4: Please open the Other Setup window, and move the cursor to the Institution textbox, and then input the hospital name.
  • Page 117 SE-1200 Series Electrocardiograph User Manual 3. Transmitting Problems Q1: The ECG doesn’t respond to any keys after a long time of transmission. It transmits nothing for there is no new data appearing on the screen of the PC software. What should I do? A1: Some error may occur during the transmission course, for example, the connection between the ECG and the net cable may loosen.
  • Page 118: Chapter 13 Cleaning, Care And Maintenance

    SE-1200 Series Electrocardiograph User Manual Cleaning, Care and Maintenance Chapter 13 Cleaning, Care and Maintenance Use only the EDAN-approved substances and methods listed in this chapter to clean or disinfect your equipment. Warranty does not cover damage caused by using unapproved substances or methods.
  • Page 119: Cleaning The Main Unit

    SE-1200 Series Electrocardiograph User Manual Cleaning, Care and Maintenance Cleaning agents should be applied or removed using a clean, soft, non-abrasive cloth or paper towel. 13.2.1 Cleaning the Main Unit WARNING Turn off the power before cleaning. The mains supply must be switched off if it is used.
  • Page 120: Disinfection

    SE-1200 Series Electrocardiograph User Manual Cleaning, Care and Maintenance 13.3 Disinfection To avoid permanent damage to the equipment, it is recommended that disinfection is performed only when it is considered as necessary according to your hospital' regulations. Clean the equipment and reusable accessories before they are disinfected. The validated...
  • Page 121: Disinfecting The Reusable Electrodes

    Capacity is from full to empty. 2) Recharge SE-1200 series electrocardiograph is equipped with the recharge control circuit together with the battery. When the unit is connected to the mains supply, the battery will be recharged automatically. Then the battery recharging indicator ( ) and the mains supply indicator ) will be lit at the same time.
  • Page 122: Recorder Paper

    SE-1200 Series Electrocardiograph User Manual Cleaning, Care and Maintenance 3) Replacement When the useful life of the battery is over, or foul smell and leakage are found, please contact the manufacturer or the local distributor for replacement. WARNING 1. Only qualified service engineers authorized by the manufacturer can open the battery compartment and replace the battery, and the battery of the same model and specification provided by the manufacturer must be used.
  • Page 123: Visual Inspection

    SE-1200 Series Electrocardiograph User Manual Cleaning, Care and Maintenance 13.4.3 Visual Inspection Perform a visual inspection of all equipment and peripheral devices daily. If you notice any items that need repair, contact a qualified service engineer to make the repairs.
  • Page 124 SE-1200 Series Electrocardiograph User Manual Cleaning, Care and Maintenance log. If the device is not functioning properly or fails any of the above tests, the device has to be repaired. WARNING Failure on the part of the responsible individual hospital or institution employing this equipment to implement a satisfactory maintenance schedule may cause undue equipment failures and possible health hazards.
  • Page 125: Chapter 14 Accessories

    SE-1200 Series Electrocardiograph User Manual Accessories Chapter 14 Accessories WARNING Only the patient cable and other accessories supplied by the manufacturer can be used. Or else, the performance and electric shock protection cannot be guaranteed. 14.1 Standard Accessories Table 14-1 Standard Accessories List...
  • Page 126 01.23.068023 1900GSR-2 Bar Code Reader (Two-Dimension) 21.18.052311 SE-1200 series electrocardiograph and accessories are available by contacting the manufacturer or your local distributor. NOTE: The chest electrodes, limb electrodes, pediatric chest electrodes and pediatric limb electrodes are not available in the U.S.
  • Page 127: Chapter 15 Warranty & Service

    EDAN will, at its discretion, repair or replace the defective part(s) free of charge. EDAN will not provide a substitute product for use when the defective product is being repaired.
  • Page 128: Appendix 1 Technical Specifications

    SE-1200 Series Electrocardiograph User Manual Technical Specifications Appendix 1 Technical Specifications A1.1 Safety Specifications IEC 60601-1:2005/A1:2012 EN 60601-1:2006/A1:2013 Comply with: IEC 60601-1-2:2007 EN 60601-1-2:2007/AC:2010 IEC 60601-2-25:2011 Anti-electric-shock type: Class І with internal power supply Anti-electric-shock degree: CF type with defibrillation-proof...
  • Page 129: A1.2 Environment Specifications

    SE-1200 Series Electrocardiograph User Manual Technical Specifications A1.2 Environment Specifications Transport & Storage Working Temperature: -20ºC (-4ºF) ~ +55ºC (+131ºF) +5ºC (+41ºF) ~ +40ºC (+104ºF) 25% RH~93% RH 25% RH~80% RH Relative Humidity: Non-Condensing Non-Condensing Atmospheric Pressure: 70 kPa ~106 kPa 86 kPa ~106 kPa A1.3 Physical Specifications...
  • Page 130: A1.5 Performance Specifications

    SE-1200 Series Electrocardiograph User Manual Technical Specifications Necessary Charge time: SE-1200 Express (Rated capacity = 5000mAh): 6 hours SE-1200 Express (Rated capacity = 2500mAh): 3 hours SE-1200: 3 hours T3.15AH250V, Ø5×20mm Fuse: T1AL250VP, Ø5×20mm (for UL device) A1.5 Performance Specifications...
  • Page 131 SE-1200 Series Electrocardiograph User Manual Technical Specifications Resolution: 2.52uV/LSB Time Constant: ≥3.2s Frequency Response: 0.05Hz ~ 150Hz (-3dB) 1.25mm/mV, 2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV, Gain: 10/5mm/mV, AGC Input Impedance: ≥50MΩ (10Hz) Input Circuit Current: ≤0.01μA Input Voltage Range ≤±5 mVpp Calibration Voltage: 1mV±2%...
  • Page 132 SE-1200 Series Electrocardiograph User Manual Technical Specifications ≤100Ω; Sensitivity 1V/mV±5%; Output Single ended WIFI (Optional) Transmitting Frequency 2400-2497MHz Frequency Band 2400-2497MHz Wireless protocol IEEE 802.11b/g/n Modulation Type DSSS, CCK, OFDM Transmitting Power 6-17dBm Effective Radiated Power 6-17dBm NOTE: Operation of the equipment below the minimum amplitude may cause inaccurate results.
  • Page 133: Appendix 2 Emc Information

    SE-1200 Series Electrocardiograph User Manual EMC Information Appendix 2 EMC Information Guidance and manufacture’s declaration - electromagnetic emissions – for all EQUIPMENT and SYSTEMS Guidance and manufacture’s declaration – electromagnetic emission The 12-channel electrocardiograph is intended for use in the electromagnetic environment specified below.
  • Page 134 SE-1200 Series Electrocardiograph User Manual EMC Information Guidance and manufacture’s declaration – electromagnetic immunity - for all EQUIPMENT and SYSTEMS Guidance and manufacture’s declaration – electromagnetic immunity The 12-channel electrocardiograph is intended for use in the electromagnetic environment specified below. The customer or the user of 12-channel electrocardiograph should assure that it is used in such an environment.
  • Page 135 SE-1200 Series Electrocardiograph User Manual EMC Information IEC/EN 61000-4-11 (60% dip in U (60% dip in U electrocardiograph requires continued for 5 cycles for 5 cycles operation during power mains interruptions, it is 70% U 70% U recommended that (30% dip in U...
  • Page 136 SE-1200 Series Electrocardiograph User Manual EMC Information rating of the transmitter in watts (W) according transmitter manufacturer recommended separation distance in metres (m). Field strengths from fixed transmitters, as determined by an electromagnetic site survey, should be less than the compliance level in each frequency range.
  • Page 137 SE-1200 Series Electrocardiograph User Manual EMC Information Recommended separation distances between portable and mobile RF communications equipment and the EQUIPMENT or SYSTEM - for EQUIPMENT or SYSTEM that is not LIFE-SUPPORTING Recommended separation distances between portable and mobile RF communications equipment and the 12-channel...
  • Page 138: Appendix 3 Abbreviation

    SE-1200 Series Electrocardiograph User Manual Abbreviation Appendix 3 Abbreviation Abbreviation Statement Liquid Crystal Display Blood Pressure Electrocardiogram/Electrocardiograph Heart Rate Left Foot Augmented Lead Left Arm Augmented Lead Right Arm Augmented Lead Left Arm Left Leg Right Arm Right Leg Identification...
  • Page 139 - 131 -...

Table of Contents

Save PDF
