Use

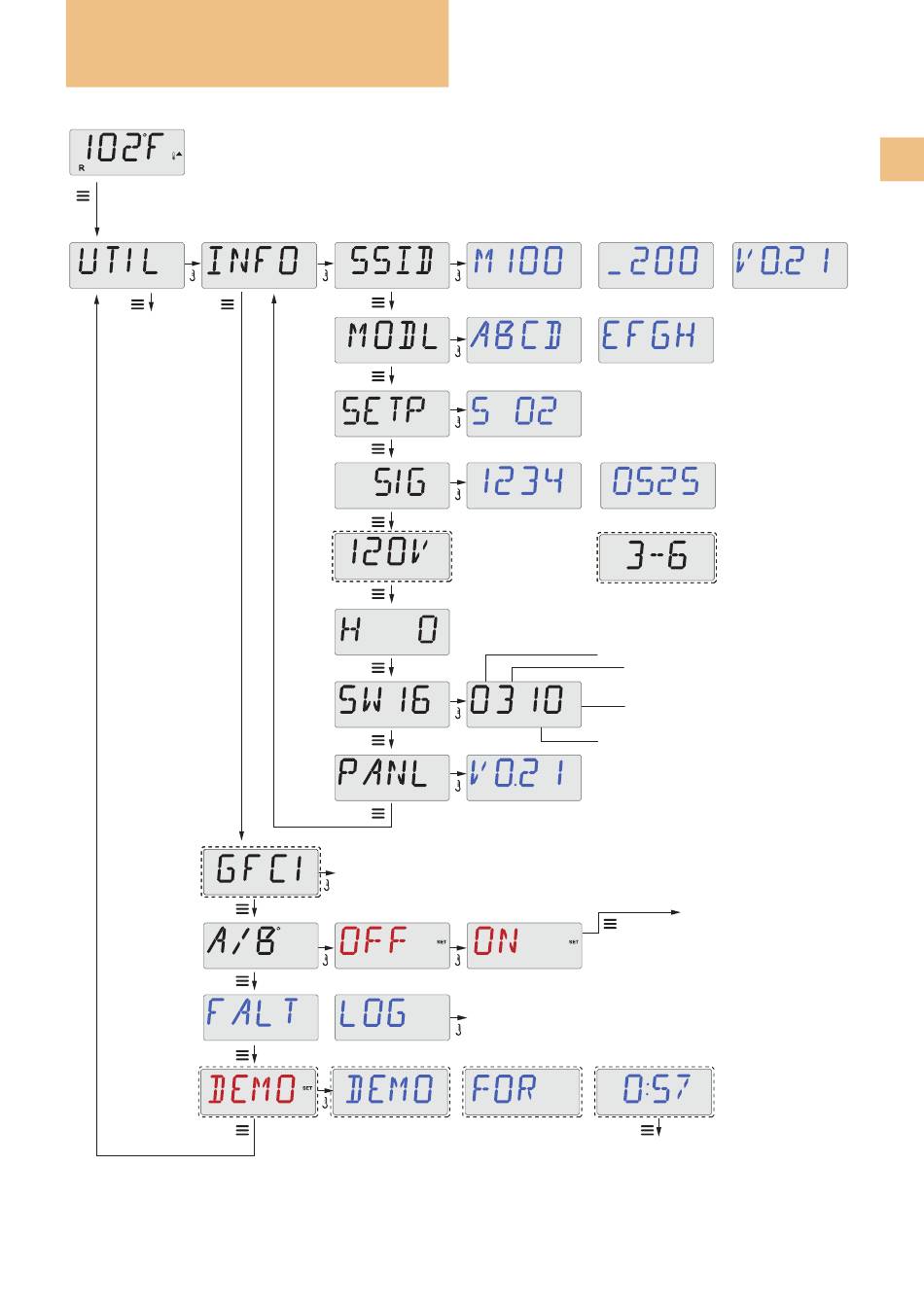

Press Menu/Select repeatedly
until UTIL appears (Utilities).
To FIRST item
in Main Menu
(TEMP Range)
Only if
GFCI is
enabled
Only if
DEMO Mode
is enabled
DIP Switch
Settings
Displays GFCI Test Menu (differential)
Or *****
a few seconds
EN
Start of string display. There is a 2 second delay on each number.
Start of string display. There is a 2 second delay on each number.
Start of string display. There is a small delay on each number.
120 or 240 V
input voltage
detected by the
OR
UL system at startup.
Heater Type
DIP Switch 1 – Test Mode Off (0) or On (1)
DIP Switch 2+3+4 = the number of HS pumps with heat
Store Settings (0) or Memory Reset (1)
N/A or Special Amperage Rule 1 or 2
See page 17
Set
*****
Wait a few seconds to
return to the original setting
See page 18
Displays Fault Log
Back to normal operation
77
Quarz
minipool
Heater wattage 3-6 or
1-3 as programmed.
Shown by the CE system at startup.
When set to ON, the Panel
will display alternate readings
from Sensor A and Sensor B
U
