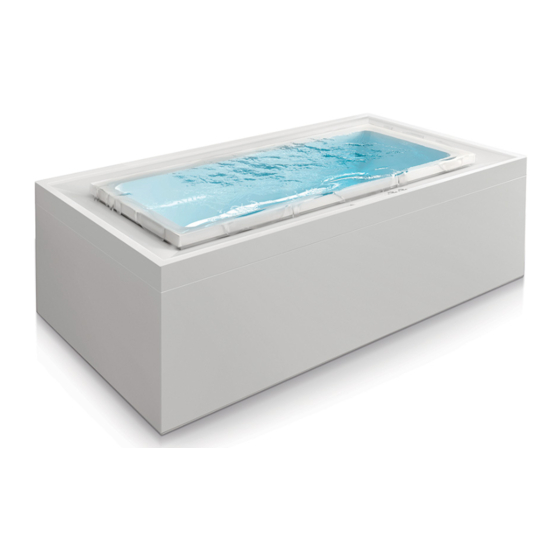

- Page 1 bathtub Fusion SKI Installation manual...
- Page 2 The installation of this bathtub is simple and immediate, however we advise you to read this manual carefully before installing it. The Treesse team is always available for any information or request for assistance that may be required during installation.
-
Page 3: Table Of Contents
Contents Safety instructions ___________________________________________________ 4 Preliminary operations ______________________________________________ 5 PREPARATIONS AND CHOICE OF POSITION _________________________________________ 5 CHECKING BATHTUB INTEGRITY ___________________________________________________ 5 OUTDOOR INSTALLATION _______________________________________________________________________ 5 INDOOR INSTALLATION _________________________________________________________________________ 5 Transport and position ______________________________________6 MOVING __________________________________________________________________________________________ POSITIONING _____________________________________________________________________________________ POSITIONING IN THE PLANNED LOCATION __________________________________________________ 7 Installation ____________________________________________________________ 8 DESCRIPTION OF MAIN COMPONENTS... -
Page 4: Safety Instructions
Unauthorised actions, tampering or Treesse invites you to protect the modifications that do not follow the environment by disposing of the material information provided in this manual can cause in recycling bins. -
Page 5: Preliminary Operations
Preliminary operations Fusion SKI bathtub PREPARATIONS AND CHOICE More information OF POSITION OUTDOOR INSTALLATION The pre-installation sheet supplied at the time of purchase provides all the information It is prohibited to install this type of bathtub outdoors. necessary for a correct preparation of the installation environments. -
Page 6: Transport And Position
Transport and position Fusion SKI bathtub MOVING To move the bathtub to the place of installation a suitable lifting device (e.g., pallet jack) is required. As an alternative, provide for the availability of eight people. Before moving the bathtub make sure that it can easily pass through the doors and hallways to reach the desired place of installation. -
Page 7: Positioning
Transport and position Fusion SKI bathtub POSITIONING POSITIONING IN THE PLANNED LOCATION For installation above ground (freestanding), place the bathtub in the installation environment and check its perfect flatness, essential for proper operation. If it is not level, it is possible to adjust the height of the minipool's feet to compensate up to a maximum of 1 cm. -
Page 8: Installation
Installation Fusion SKI bathtub DESCRIPTION OF MAIN COMPONENTS Compensation tank inspection Recirculation pump Chromatherapy control unit Main control unit Drain valve Electronic tap 11 10 9 Whirlpool pump Bottom plate Disinfectant loading Hand-held shower head Control panel Optional electric heater (temperature maintenance) QUALIFICATIONS OF THE INSTALLER Before installation it is recommended to carefully read the safety warnings at the beginning of this manual... -
Page 9: Connections Required
Installation Fusion SKI bathtub CONNECTIONS REQUIRED To be used, the bathtub requires only two connections: Room for the electrical plumbing connections connections (incoming and outgoing water) electrical connection (power supply) The following pages will provide detailed explanations of how to perform these preparations. -
Page 10: Plumbing Connections
Installation Fusion SKI bathtub PLUMBING CONNECTIONS More information WATER HARDNESS All water connection operations must be performed after making sure that the bathtub's Water hardness (TH) is determined by the total content water supply valve is CLOSED. of calcium and magnesium present in the water, coming The connection must be made by an from their soluble salts. - Page 11 Installation Fusion SKI bathtub EXAMPLE OF PRE-INSTALLATION PLUMBING FOR A BATHTUB Connect the drain of the floor Connection to the bathtub using the 1/2 bathtub. The plumber is responsible inch female hoses provided. for the choice and type of materials to be used and the verification of compliance with anti-pollution standards.
-
Page 12: Electrical Connections
ELECTRICAL CONNECTIONS The Treesse minipools are built in compliance with European laws (EN 60 335-2-60) and are tested during production to ensure the safety of the installer and user. The connection must be made by an experienced, qualified electrician. - Page 13 Installation Fusion SKI bathtub Serbatoio disinfezione Serbatoio Termoregolatore accumulo Pompa 2 Pompa 1 Rubinetto elettronico Doccino SL1: bathtub level sensor, enables whirlpool operation SL2: storage tank safety level sensor SL3: storage tank fill level sensor SL4: disinfectant reservoir level sensor EV1: mechanical non-return valve (clapet valve or spring) EV2:...
-
Page 14: Safety Zone
Installation Fusion SKI bathtub SAFETY ZONE Local regulations prohibit any electrical installation (plug sockets, switches, lamps, etc.) in the area surrounding the bathtub for a distance of at least 60 cm and a height of 230 cm. TESTING AFTER INSTALLATION √... -
Page 15: First Run
First run Fusion SKI bathtub FILLING THE BATHTUB STAGE 1 (see the diagram on page 13) Perform a preliminary cleaning of the bathtub using a bit - Closure of the EV2, EV3 and EV5 solenoid valves. of water and a mild detergent. - Motors and thermoregulator turned off. -
Page 16: Operation Test
Fusion SKI First run bathtub OPERATION TEST CONTROL PANEL light key whirlpool key chromatherapy key disinfection key Emptying key shower head key temperature key automatic fill key ON-OFF key HOW TO ACTIVATE FUNCTIONS The minipool is powered on by connecting it to the mains. When first turned on, the "ON-OFF"... - Page 17 Fusion SKI First run bathtub HOW TO ACTIVATE FUNCTIONS Pressing the “shower head” key makes water come out of the shower head. The water continues to flow until the key is pressed again or for a maximum of 20 minutes. While the water continues the "shower head"...
- Page 18 Fusion SKI First run bathtub HOW TO ACTIVATE FUNCTIONS The disinfection function is an automatic cleaning procedure for the bathtub's entire water circuit, including the tanks. It should be carried out after every use of the bathtub or after long periods of disuse. HOW TO START IT Press the "disinfection"...
-
Page 19: Decorative Panels
Decorative panels Fusion SKI bathtub Mount the laminate resin panels as shown in the figure below. INDOOR INSTALLATION... - Page 20 www.gruppotreesse.it GRUPPO TRE S s.p.a. 01036 Nepi (VT) - Italy S.S. Cassia km. 36.400 Settevene industrial area tel. (+39) 0761 527242 fax (+39) 0761 527223 info@gruppotres.it...
