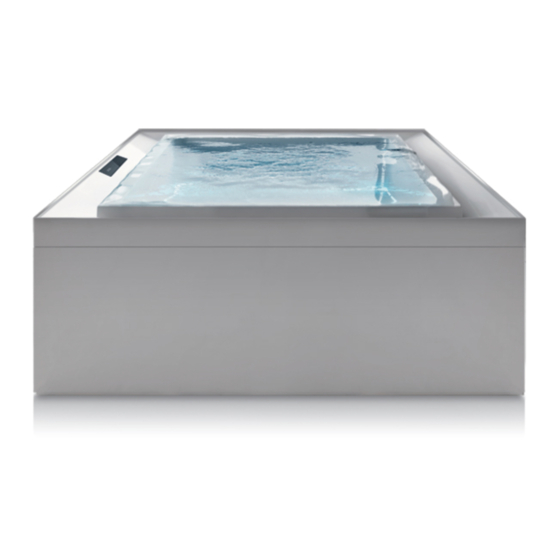

- Page 1 minipool Fusion Spa Installation manual...
- Page 2 The installation of this minipool is simple and immediate, however we advise you to read this manual carefully before installing it. The Treesse team is always available for any information or request for assistance that may be required during installation.
-
Page 3: Table Of Contents
Contents Safety instructions __________________________________________4 Preliminary operations ______________________________________5 PREPARATIONS AND CHOICE OF POSITION _________________________________________ 5 CHECKING MINIPOOL INTEGRITY __________________________________________________ 5 OUTDOOR INSTALLATION __________________________________________________________________ 5 INDOOR INSTALLATION ____________________________________________________________________ 5 Transport and position ______________________________________6 MOVING _________________________________________________________________________ 6 POSITIONING _____________________________________________________________________ 7 TEMPORARY POSITIONING _________________________________________________________________ 7 POSITIONING IN THE PLANNED LOCATION __________________________________________________ 7 Preliminary operations ______________________________________8 PREPARATION OF THE SAND FILTER ________________________________________________ 8... -
Page 4: Safety Instructions
Unauthorised actions, tampering or modifications that do not follow the Treesse invites you to protect the information provided in this manual can cause environment by disposing of the material damages, injuries or fatal accidents and null in recycling bins. -
Page 5: Preliminary Operations
Preliminary operations Fusion Spa minipool PREPARATIONS AND CHOICE More information OF POSITION OUTDOOR INSTALLATION The pre-installation sheet supplied at the time of purchase provides all the information Preparations: in cold areas, to avoid possible damage necessary for a correct preparation of the due to freezing, it is recommended to provide valves installation environments. -
Page 6: Transport And Position
Transport and position Fusion Spa minipool MOVING To move the minipool to the place of installation a suitable lifting device (e.g., pallet jack) is required. As an alternative, provide for the availability of eight people. If the installation is indoor, before moving the minipool make sure that it can easily pass through the doors and hallways to reach the desired place of installation. -
Page 7: Positioning
Transport and position Fusion Spa minipool POSITIONING TEMPORARY POSITIONING The installation of the minipool should be done immediately upon receipt. In any case, once unpacked, if it is necessary to temporarily place it on a surface awaiting the installation, it will be necessary to place level concrete slabs having a minimum thickness of 5 cm under the entire bottom of the minipool. -
Page 8: Preliminary Operations
In Treesse minipools the backwashing is automatic, running LEGEND FIGURE 1 ON THE NEXT PAGE:... - Page 9 Preliminary operations Fusion Spa minipool ø 0,5-1mm ø 1-3mm INTERIOR - top view Caution! Make sure that the six internal filters are correctly positioned and secured (see figure). Caution! Do not inhale Carefully clean and verify that the gaskets are still in place ø...
-
Page 10: Installation
Installation Fusion Spa minipool DESCRIPTION OF MAIN COMPONENTS Control Panel Compensation tank Sand filter Whirlpool pump Overflow edge Electronic control units Compensation tank inspection Heater Drain valve 10 Ozone QUALIFICATIONS OF THE INSTALLER Before installation it is recommended to carefully read the safety warnings at the beginning of this manual and to always operate in perfect physical and mental condition. -
Page 11: Connections Required
Installation Fusion Spa minipool CONNECTIONS REQUIRED To be used, the minipool requires only two connections: Room for plumbing connections the electrical connections (incoming and outgoing water) electrical connection (power supply) electrical and plumbing connection to an exchanger (optional - if present) - see following page. - Page 12 Installation Fusion Spa minipool CONNECTION TO AN OPTIONAL EXTERNAL EXCHANGER (NOT SUPPLIED) Room for the electrical connections Drain incoming hot domestic water OUT: outgoing cold water Technical inspection port BL 1 EVclv Cromo 230V~ 230V 230V heater/exchanger control cable circulator (not supplied) water coming from the overflow edge recirculation pump switch (recommended)
-
Page 13: Plumbing Connections
Installation Fusion Spa minipool PLUMBING CONNECTIONS More information WATER HARDNESS All water connection operations must be performed after making sure that the minipool's Water hardness (TH) is determined by the total content water supply valve is CLOSED. of calcium and magnesium present in the water, coming The connection must be made by an experienced, from their soluble salts. - Page 14 Installation Fusion Spa minipool EXAMPLE OF PRE-INSTALLATION PLUMBING FOR A MINIPOOL Connection to the minipool using the 1/2 inch female hose Connect the drain of the floor minipool. The provided. plumber is responsible for the choice and type If the minipool is installed outdoors provide an adequate thermal of materials to be used and the verification of insulation of the pipes.
-
Page 15: Electrical Connections
ELECTRICAL CONNECTIONS The Treesse minipools are built in compliance with European laws (EN 60 335-2-60) and are tested during production to ensure the safety of the installer and user. The connection must be made by an experienced, qualified electrician. -
Page 16: Safety Zone
Installation Fusion Spa minipool SAFETY ZONE Local regulations prohibit any electrical installation (plug sockets, switches, lamps, etc.) in the area surrounding the minipool for a distance of at least 60 cm and a height of 230 cm. TESTING AFTER INSTALLATION √... -
Page 17: First Run
First run Fusion Spa minipool FILLING THE MINIPOOL the power and restore it after about 30 seconds using Perform a preliminary cleaning of the minipool using a the product's main power switch and check the reason bit of water and a mild detergent. for this anomaly (leaky pipes, obstructed supply valves, Do not use cloths or cleaners that are abrasive, aggressive insufficient pressure). -
Page 18: First Run
Fusion Spa First run minipool FIRST RUN WHITE KEYPAD LED chromatherapy active LED washing/sanitising (ozone) active LED whirlpool active LED heating active LED emptying in progress LED temperature adjustment LED filling in progress KEYS value decrease key (DOWN) KEY COMBINATIONS value increase key (UP) chromatherapy activation key = FILL bathtub... - Page 19 Fusion Spa minipool With the bathtub full, recirculation active and ozone active, start all the functions of the bathtub in sequence in the presence of the owner to verify proper operation. WATER TEMPERATURE ADJUSTMENT " keys will vary the setting of the water temperature by +/- 0.5°C (the standard value at startup Pressing the "...
- Page 20 The cycle lasts 20 minutes. In Treesse minipools backwashing is automatic, running automatically every 48 hours of minipool use, but can be forced manually by pressing: key for about 10 seconds...
-
Page 21: Partial Minipool Empty Test
Fusion Spa minipool PARTIAL MINIPOOL EMPTY TEST hidden key To avoid accidental emptying of the bathtub, a combination of two keys is required to perform this operation: simultaneously press the keys emptying in progress is indicated by the "EMPTY" LED pressing the hidden key for three seconds (located below the display, even if it is not visible it is still active), then press the emptying in progress is indicated by the flashing blue key... -
Page 22: Alarms
Fusion Spa Alarms minipool ALARMS If any alarms appear during initial startup, read the instructions provided in the following table. If the solution is not possible, immediately contact the Manufacturer to request technical support. In the meantime, do not try to repair or use the minipool but rather disconnect it from the electricity and water supplies. - Page 23 Fusion Spa Alarms minipool ALARMS Screen DESCRIPTION OF THE PROBLEM NOTIFICATIONS displayed POSSIBLE SOLUTIONS Problem description: in case of no communication with the chromatherapy controller, the system disables the function and the display shows the "Co" message alternating with the temperature. Water control unit alarm The other functions remain available.
-
Page 24: Troubleshooting
Fusion Spa Troubleshooting minipool PROBLEM POSSIBLE CAUSE SOLUTION The sand of the sand filter is very dirty Replace the sand as indicated, or the water supply is excessively hard following the instructions on and has clogged the sand filter. granularity. Low water flow For more information see chapter “Characteristics of the... -
Page 25: Decorative Panels
Decorative panels Fusion Spa minipool Mount the laminate resin panels as shown in the figure below. INDOOR INSTALLATION OUTDOOR INSTALLATION... -
Page 26: Covering
Under these conditions or when not used, advise the owner to use a fixed or mobile cover to protect the minipool (we recommend the optional Treesse covers). In addition to preserving the surfaces, the cover will keep the water hot and protected against falling leaves and other outdoor debris. - Page 27 Maximum care has been paid to guarantee the accuracy of this manual. The Manufacturer reserves the right to modify the equipment or the documentation at any time, without notice. Therefore there might be small differences between this manual and the product you have received: we apologise in advance for any inconvenience. The total or partial reproduction of this manual without the Manufacturer's consent is prohibited.
- Page 28 www.gruppotreesse.it GRUPPO TRE S s.p.a. 01036 Nepi (VT) - Italy S.S. Cassia km. 36.400 Settevene industrial area tel. (+39) 0761 527242 fax (+39) 0761 527223 info@gruppotres.it...
