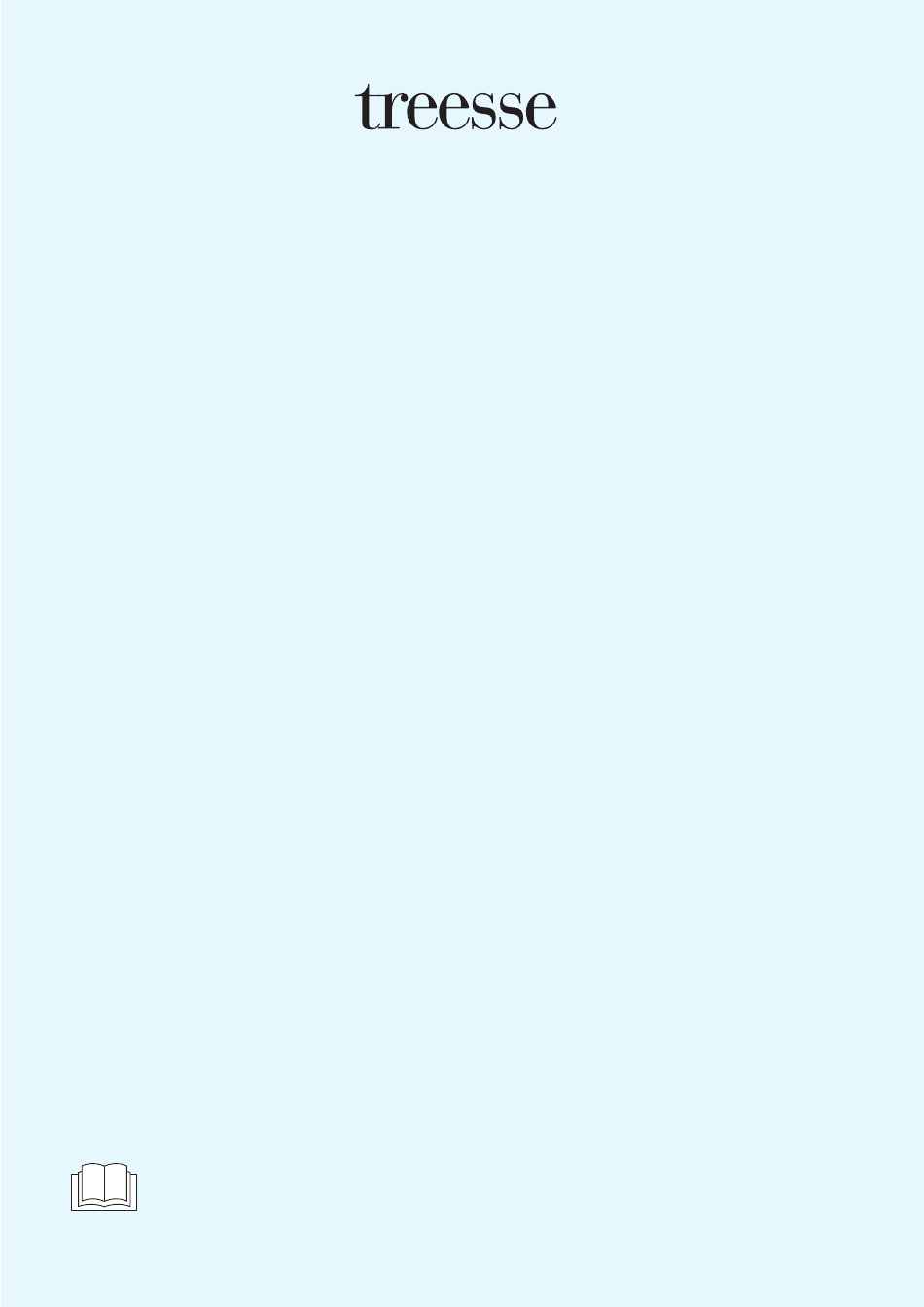

- Page 1 Muse GP Installation manual READ AND FOLLOW ALL INSTRUCTIONS...
- Page 2 The installation of this spa is simple and immediate, however we advise you to read this manual carefully before installing it. If you have problems, contact your authorised dealer.
-
Page 3: Table Of Contents
Contents Safety instructions __________________________________________4 _________________________________________________7 EXPLANATION OF PICTOGRAMS Preliminary operations ______________________________________8 PREPARATIONS AND CHOICE OF POSITION _________________________________________ 8 CHECKING SPA INTEGRITY _________________________________________________________ 8 OUTDOOR INSTALLATION __________________________________________________________________ 8 INDOOR INSTALLATION ____________________________________________________________________ 8 Transport and position ______________________________________9 MOVING _________________________________________________________________________ 9 POSITIONING _____________________________________________________________________ 10 TEMPORARY POSITIONING _________________________________________________________________ 10 POSITIONING IN THE PLANNED LOCATION __________________________________________________ 10 Installation _________________________________________________11... -
Page 4: Safety Instructions
Safety instructions Muse GP IMPORTANT SAFETY 7. DANGER – Risk of Electric Shock. Do not permit any electric appliance, such as a light, INSTRUCTIONS telephone, radio, or television, within 5 feet (1.5 m) of a spa. 8. WARNING – To reduce the risk of injury: READ AND FOLLOW ALL INSTRUCTIONS. - Page 5 Safety instructions Muse GP WARNING: CHILDREN SHOULD NOT USE AV E R T I S S E M E N T : P O U R É V I T E R L’ÉVANOUISSEMENT ET LA NOYADE SPAS OR HOT TUBS WITHOUT ADULT SU- ÉVENTUELLE, NE PRENDRE NI DROGUE NI...
-
Page 6: Read And Follow All Instructions
Safety instructions Muse GP D’APPAREIL ÉLECTRIQUE (LUMINAIRE, symbol* is located inside the supply terminal TÉLÉPHONE, RADIO, TÉLÉVISEUR, ETC) À box or compartment. To reduce the risk of MOINS DE 1.5 M DE CETTE CUVE DE RE- electric shock, this terminal must be con-... -
Page 7: Explanation Of Pictograms
Unauthorised actions, tampering or Treesse invites you to protect the environ- modifications that do not follow the ment by disposing of the material in special information provided in this manual can cause separate collection bins. -
Page 8: Preliminary Operations
Preliminary operations Muse GP PREPARATIONS AND CHOICE More information OF POSITION OUTDOOR INSTALLATION The pre-installation sheet supplied at the time of purchase provides all the information neces- Preparations: sary for a correct preparation of the installation To run the electric cables from the main electrical panel environments. -
Page 9: Transport And Position
Transport and position Muse GP MOVING To move the spa to the place of installation a suitable lifting device (e.g., pallet jack) is required. As an alternative, provide for the availability of eight people. If the installation is indoor, before moving the spa make sure that it can easily pass through the doors and hall- ways to reach the desired place of installation. -
Page 10: Positioning
Transport and position Muse GP POSITIONING TEMPORARY POSITIONING The installation of the spa should be done im- mediately upon receipt. In any case, once unpacked, if it is necessary to temporarily place it on a surface awaiting the installation, it will be necessary to place level concrete slabs having a minimum thickness of 5 cm under the entire bottom of the spa. -
Page 11: Installation
Installation Muse GP DESCRIPTION OF COMPONENTS 1 Control Panel 2 2-speed pump (water + recirculation) 2a Hydromassage pump 3 Skimmer with paper filters 4 Skimmer cover panel 5 Electronic control unit 6 Heater (integrated with the control unit) 7 Chromotherapy control unit... -
Page 12: Connections Required
Installation Muse GP CONNECTIONS REQUIRED To be used, the spa only requires an electrical connection (power supply). Room for the electrical Also prepare an electrical and plumbing connections connection to an exchanger (optional - if provided) - see following page. - Page 13 Installation Muse GP PREPARATION OF CONNECTION TO AN OPTIONAL EXTERNAL EXCHANGER (NOT SUPPLIED) Room for the electrical connections The exchanger means the Inlet connection: device that heats water (in 1”1/4 female this manual, it is Outlet connection: represented by a 1”1/4 female...
-
Page 14: Water Supply
Installation Muse GP WATER SUPPLY More information WATER HARDNESS It is recommended to use ONLY tap water. Water hardness (TH) is determined by the total content If this is not possible refer to the “more informa- of calcium and magnesium present in the water, coming tion”... -
Page 15: Cleaning The Paper Filter
Installation Muse GP CLEANING THE PAPER FILTER Cleaning/replacing the paper filter depends on how often the spa is used. In general, rinse the cartridge every 2-3 weeks with clean water to remove hair and other foreign substances. Be careful to clean well between the folds of the filter. -
Page 16: Electrical Connections
Installation Muse GP ELECTRICAL CONNECTIONS The Treesse spas are built in compliance with UL laws (XXXXXXXX) and are tested during production to ensure the safety of the installer and user. The connection must be made by an experienced, qualified electrician. - Page 17 Installation Muse GP WARNING – This product is provided with a ground-fault circuit-interrupter (give location). The GFCI must be tested before each use. With the product operating, open the service door. When the product stops operating, this merely indicates that the door is equipped with an electrical interlock.
- Page 18 Installation Muse GP THE IMAGE SHOWN HERE IS REPRESENTATIVE ONLY: MAKE THE ELECTRICAL CONNECTIONS FOLLOWING EXCLUSIVELY THE DIAGRAM (elec- trical diagram) SHOWN UNDER THE COVER OF YOUR CONTROL UNIT. MOVE WIRE TO CONNECT J2O TO J13 J5 (A1-A4) FOR BLOWER IN SETUPS 3 & 4 CONNECT ONLY TO CIRCUITS PROTECTED BY A CLASS A GFCI.
-
Page 19: Safety Zone
Installation Muse GP SAFETY ZONE Local regulations prohibit any electrical installation (plug sockets, switches, lamps, etc.) in the area surround- ing the spa for a distance of at least 60 cm and a height of 230 cm. TESTING AFTER INSTALLATION √... -
Page 20: First Run
First run Muse GP FILLING THE SPA Perform a preliminary cleaning of the spa using a bit of Manual filling with a garden hose water and a mild detergent. Do not use cloths or cleaners that are abrasive, aggressive or that contain solvents because they could irreparably damage the surface of the spa. -
Page 21: First Run Touch Control Panel
Muse GP First run FIRST RUN TOUCH CONTROL PANEL PREPARATION AND FILLING Fill the spa to its correct operating level. Be sure to open all valves and jets in the plumbing system before filling to allow as much air as possible to escape from the plumbing and the control system during the filling process. - Page 22 Muse GP Alarms If any alarms appear during initial startup, read the instructions provided in the following table. If the solution is not possible, immediately contact the Manufacturer to request technical support. In the meantime, do not try to repair or use the spa but rather disconnect it from the electricity and water supplies.
- Page 23 Muse GP Alarms MESSAGES CONNECTED DESCRIPTION OF SIGNALS AND POSSIBLE SOLUTIONS TO WATER HEATING Problem description: there may not be enough water flow through the heater to carry the heat away from the heating element. The heater will restart in about 1 minute. See the "Water Reduced flow in flow problems"...
- Page 24 Muse GP Alarms MESSAGES CONNECTED DESCRIPTION OF SIGNALS AND POSSIBLE SOLUTIONS TO THE SEN- SORS Problem description: the sensors connected to the temperature measurement could be out of calibration by 3 °F. Call technical service if the message does not disappear within a few minutes.
- Page 25 Alarms Muse GP SYSTEM MES- DESCRIPTION OF SIGNALS AND POSSIBLE SOLUTIONS SAGES Problem description: at power-up, the system has failed the program checksum test. This indicates a problem with the firmware (operation program) and requires a service call. Memory fault -...
-
Page 26: First Run Digital Control Panel
Muse GP FIRST RUN DIGITAL CONTROL PANEL PRIMING THE PUMPS FILL IT UP! There are two ways to prime the pumps (and other water devices). PREPARATION AND FILLING #1 - Prime pumps by pressing the Spa Device buttons Fill the spa to its correct operating level. Be sure to open... - Page 27 Muse GP The heater pump is the most important pump When Priming Mode ends (automatically or manually) to prime. the panel will display dashes . Once the control system cycles water through the heater for one minute, IMPORTANT: A pump should not be allowed to run the dashes will be replaced by the water temperature.
-
Page 28: Panel Messages
Muse GP PANEL MESSAGES HEATER-RELATED MESSAGES This chapter lists all of the Panel Messages and explains each one. Some Panel Messages have corresponding Message Codes. If so, the Message Code appears below The water flow is low the Panel Message. -
Page 29: Sensor-Related Messages
Muse GP The heater is too hot** SENSOR-RELATED MESSAGES Message Code: M030 * Sensors are out of sync One of the water temp sensors has detected 118°F (about 48°C) in the heater and the spa is shut down. You must Message Code: M015 * reset the message* when water is below 108°F (about... -
Page 30: Reminder Messages
Muse GP The GFCI test failed REMINDER MESSAGES (System Could Not Test the GFCI) Reminder messages can be reset from the panel. Press Message Code: M036 * the Clear Icon to reset the Reminder message. (North America Only) May indicate an unsafe installation. -
Page 31: Miscellaneous Messages
Muse GP Clean the filter MISCELLANEOUS MESSAGES Set the Time-of-Day May appear on a regular schedule, i.e. every 30 days. Clean the filter media as instructed by the manufacturer. When a control system that displays this message is powered On, its time-of-day is initialized to 12:00 PM. -
Page 32: Decorative Panels
Decorative panels Muse GP Mount the wood or laminate resin panels as shown in the figures below. -
Page 33: Covering
Under these conditions or when not used, advise the owner to use a fixed or mobile cover to protect the spa (we recommend the optional Treesse covers). In addition to preserving the surfaces, the cover will keep the water hot and protected against falling leaves and other outdoor debris. - Page 34 Notes Note Muse GP...
- Page 35 Maximum care has been paid to guarantee the accuracy of this manual. The Manufacturer reserves the right to modify the equipment or the documentation at any time, without notice. Therefore, there might be small differences between this manual and the product you have received: we apologise in advance for any inconvenience. The total or partial reproduction of this manual without the Manufacturer's consent is prohibited.
- Page 36 www.gruppotreesse.it GRUPPO TRE S s.p.a. 01036 Nepi (VT) - Italy S.S. Cassia km. 36.400 Settevene industrial area tel. (+39) 0761 527242 fax (+39) 0761 527223 info@gruppotres.it...
