To access the RCM-Sprayer operation features and functions, a profile must be created the first time which the

ECU is powered up after installation.

NOTE:

Refer to the RCM-Sprayer and Hawkeye® 2 Calibration and Operation Manual (P/N 016-0171-638) for

additional assistance with available RCM-Sprayer settings and options.

1. Open the working set menu on the ISO VT.

2. Select the RCM-Sprayer working set icon.

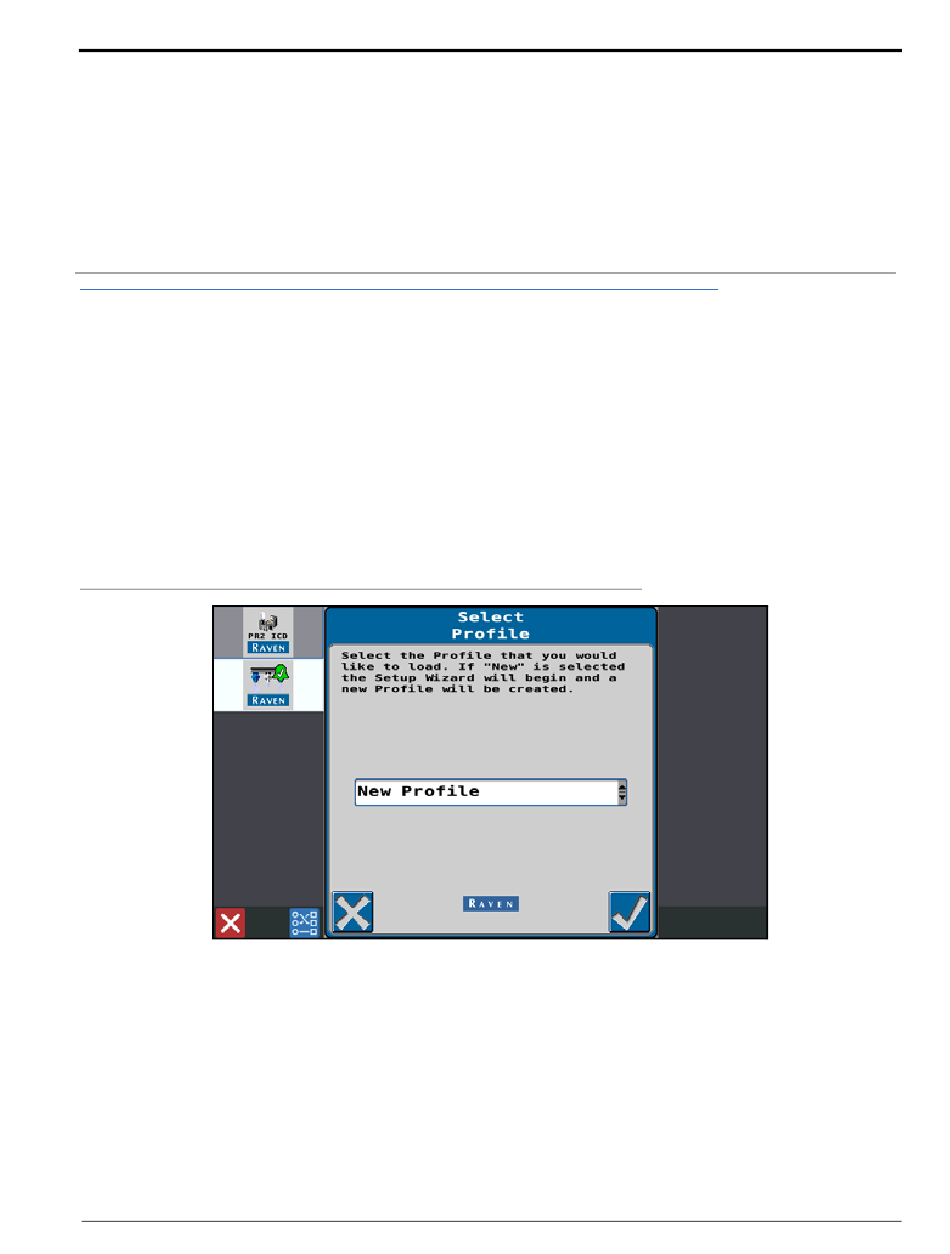

FIGURE 1. RCM-Sprayer Create New Profile Page

3. Use the drop-down list to select New Profile.

4. Touch the Accept icon in the lower, right corner of the page to proceed with the Setup Wizard.

5. Use the on-screen keyboard to name the profile. For example, the name of the machine or current

configuration of the system which the RCM-Sprayer will be used to control.

Initial Calibration: Create Profile Setup Wizard
