CHAPTER 3

RATE PRESET SETUP

30. In a Ratio Rate application mode, the RCM-Sprayer will not use product application rates for product 1 or the

main tank. Enter a non-zero value in the Preset 1 field and touch the Next Page button to skip the remaining

settings.

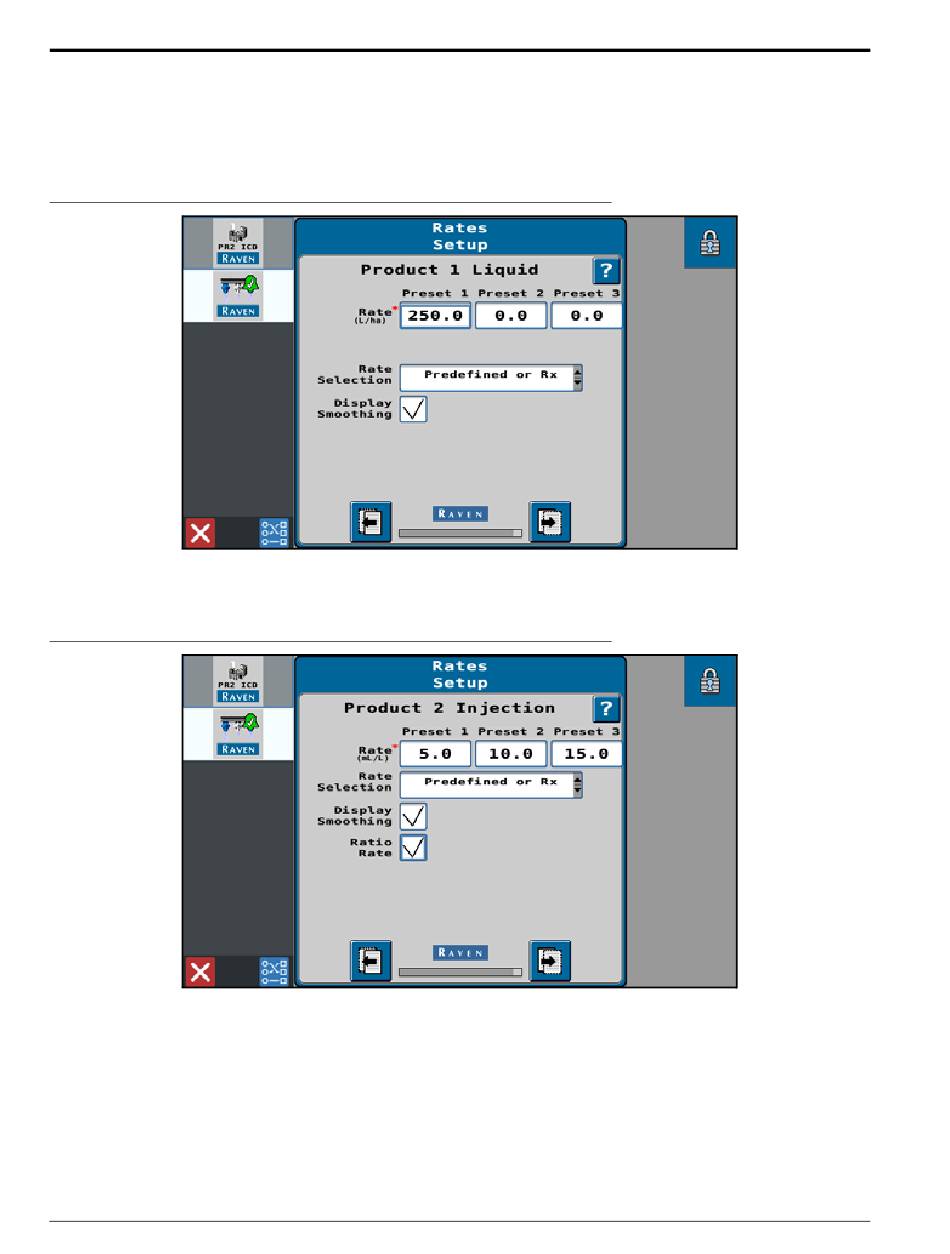

FIGURE 13. Product 1 Rate Presets Page

31. On the Product 2 Injection page, enable the Ratio Rate option at the bottom of the page.

FIGURE 14. Product 2 Rate Presets Page

32. Enter rate presets in the Preset 1, Preset 2, and Preset 3 fields. These values allow the machine operator to

quickly adjust the target rate of the injected chemical during field operations.

NOTE:

For the Squall brand chemical, it is recommended to set rate presets in increments of 5 mL/L.

33. Touch the Next Page button.

RCM-Sprayer Ratio Rate (without Boom Control) Calibration and Operation Manual
