CHAPTER 3

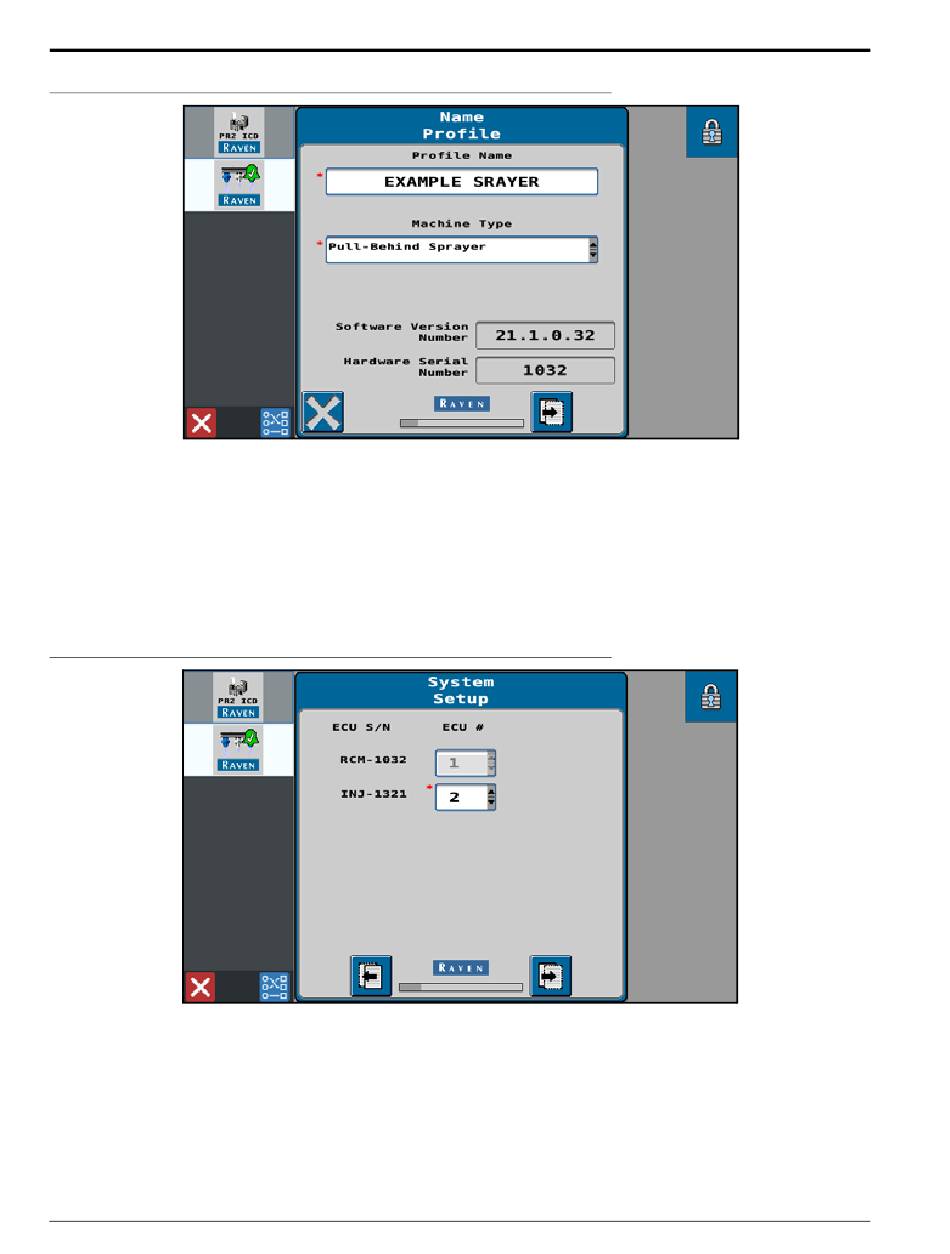

FIGURE 2. Profile Name Page
6. Use the Machine Type drop-down list to select the type of equipment, tractor, or vehicle on which the RCM-
Sprayer is installed. For example, a pull-type or a self-propelled sprayer.
7. Touch the Next Page button to proceed with the profile wizard.

ECU SETUP

8. The RCM-Sprayer ECU is hard-coded to product number 1. Set the Sidekick Pro™ injection pump as product 2.
FIGURE 3. ECU Product Assignment Page
NOTE: Any additional injection pumps connected to the ISOBUS network will be assigned to product 3 and
higher.
9. Touch the Next Page button.
8 RCM-Sprayer Ratio Rate (without Boom Control) Calibration and Operation Manual
