LEDS:

HD67718-IP-A1

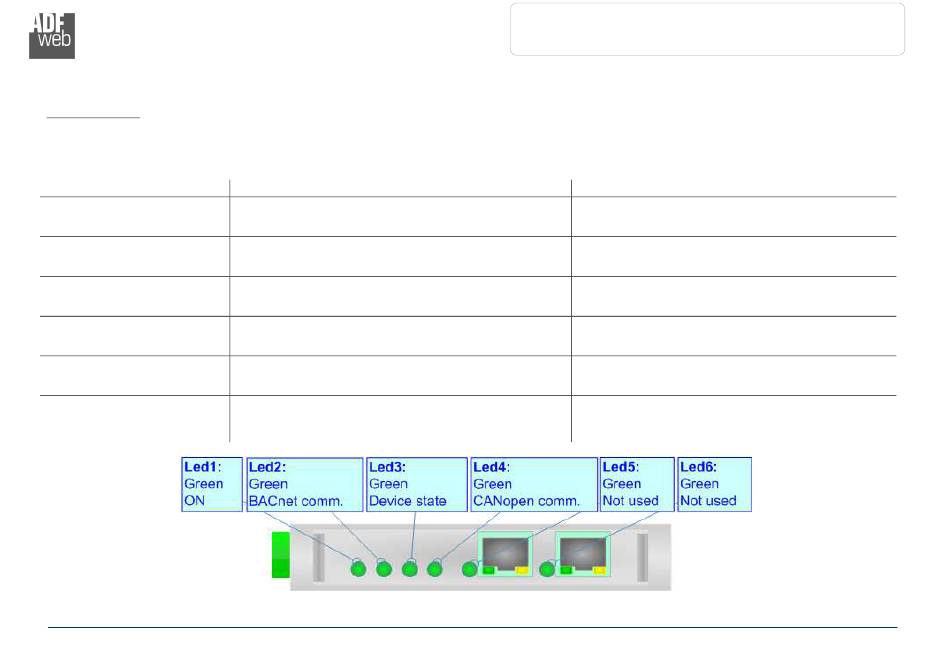

The device has got six LEDs that are used to give information about the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: ON [supply
voltage](green)
3: BACnet comm. (green)
3: Device State (green)
4: CANopen comm. (green)
5: Not used (green)
6: Not used (green)
ADFweb.com S.r.l.
Normal Mode
ON: Device powered
OFF: Device not powered
It blinks when a BACnet response is received
Blinks slowly (~1Hz)
Blinks quickly when receives CANopen frames
/
/
User Manual BACnet Master / CANopen
Document code: MN67718_ENG Revision 1.000
Boot Mode
ON: Device powered
OFF: Device not powered
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
