SET COMMUNICATION:

This section define the fundamental communication parameters of two buses, CANopen and BACnet
Slave.
By Pressing the "Set Communication" button from the main window for SW67718 (Fig. 2) the
window "Set Communication" appears (Fig. 3).
In the section "BACnet Master" it is possible to select the type of BACnet to use from:
BACnet/IP (it uses Ethernet);
BACnet MS/TP (it uses RS485).
If selected "BACnet/IP" the means of the fields for "BACnet" are:
In the fields "IP ADDRESS" the IP address of BACnet/IP side of the converter is defined;
In the fields "SUBNET
In the fields "GATEWAY" the default gateway of the network is defined. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of the net;
In the field "Port" the port used for BACnet communication is defined. The default port used
for BACnet communication is 47808, but is possible to insert any value;
In the field "BACnet Device
In the field "Device Identifier" the device instance of BACnet/IP side of the converter is
defined;
In the field "TimeOut Polling
If selected "BACnet MS/TP" the means of the fields for "BACnet" are:
In the field "Baudrate" the baudrate of BACnet MS/TP side of the converter is defined;
In the field "Parity" the parity of BACnet MS/TP side of the converter is defined;
In the field "BACnet Device
defined;
In the field "MAC Address" the MAC of BACnet MS/TP side of the converter is defined;
The field "Max Masters" specifies the highest allowable address for master nodes. The value
shall be less than or equal to 127;
ADFweb.com S.r.l.
Mask" the SubNet Mask of BACnet/IP side of the converter is defined;
Name" the name of BACnet/IP side of the converter is defined;
(ms)" the timeout for the BACnet requests is defined.
Name" the name of BACnet MS/TP side of the converter is
User Manual BACnet Master / CANopen
Document code: MN67718_ENG Revision 1.000

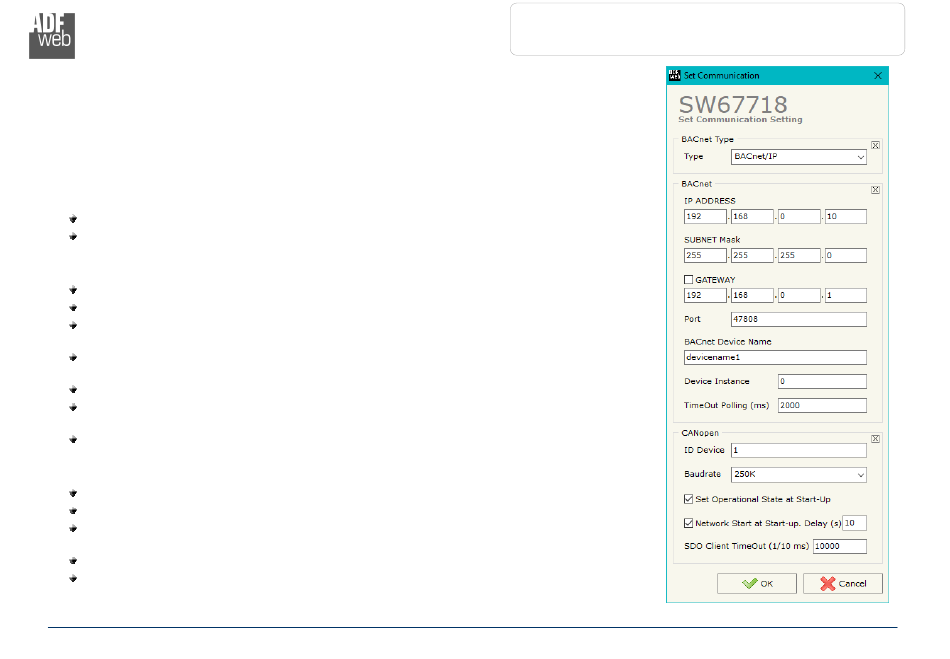

Figure 3: "Set Communication" window
