HD67718-MSTP-A1/B2

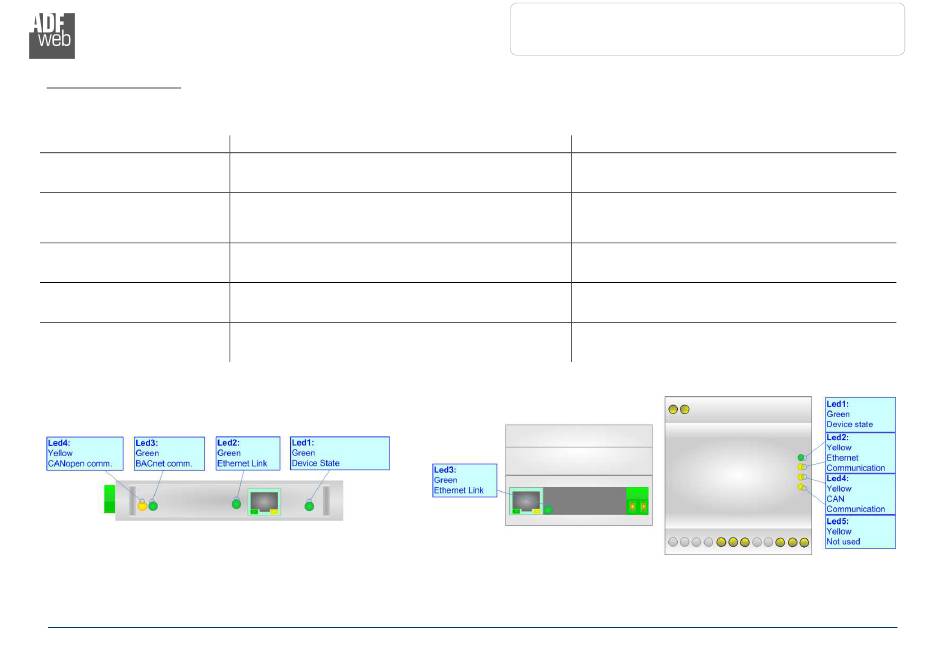

The device has four LEDs (five for the B2 version) that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: Device State (green)
2: Link Ethernet (yellow)
3: BACnet communication
(yellow)
4: CAN Communication
(yellow)
5: Not used (green)
ADFweb.com S.r.l.
Normal Mode
Blinks slowly (~1Hz)
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
Blinks quickly when a BACnet response is received
Blinks quickly when a CAN frame is received
OFF
User Manual BACnet Master / CANopen
Document code: MN67718_ENG Revision 1.000
Boot Mode
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
