Mounting

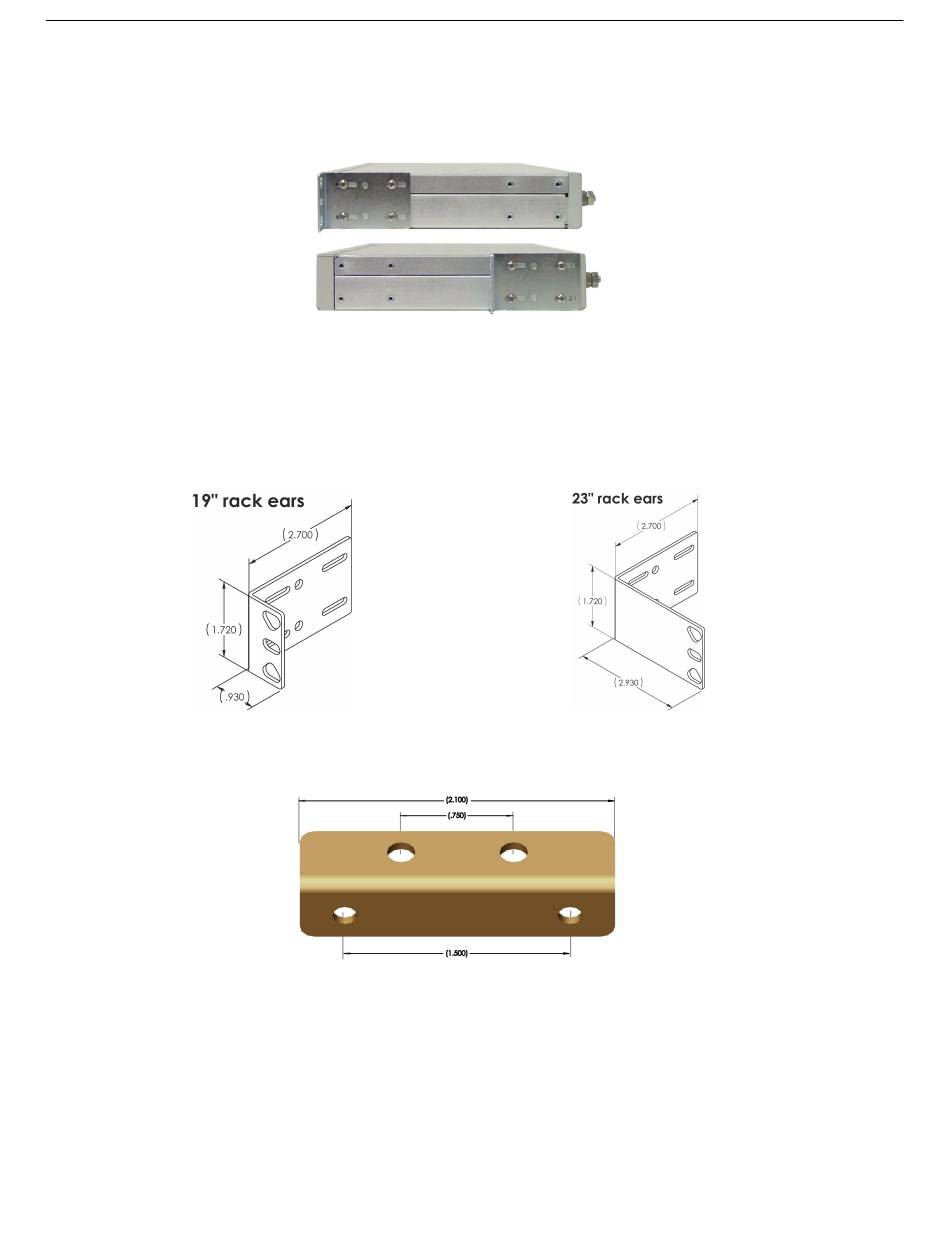

Fig. 4.1 The BVM 48 can be flush or rear-mounted
The compact BVM 48 occupies only half the width of a standard rack unit. Only one rack ear is supplied
with the BVM 48, and the rack ear can be mounted on the left or right side of the unit. The BVM 48
mounts in a 19" or 23" rack, and can be mounted on the right or left, in the flush-mount or rear mount
locations, as shown in Fig. 4.1.
The rack ears can be rotated 90° for wall mounting or 180º for other mounting options.
Fig. 4.2 Fig. 4.3
Use the included wall mount bracket to mount the BVM 48 vertically on the wall.
Fig. 4.4
