DPS Telecom BVM 48 User Manual page 28

24
Fig. 10.20
7. Log back into the unit and click User Analogs from the (blue) Monitor menu. Now you should be
able to view the live voltage reading.

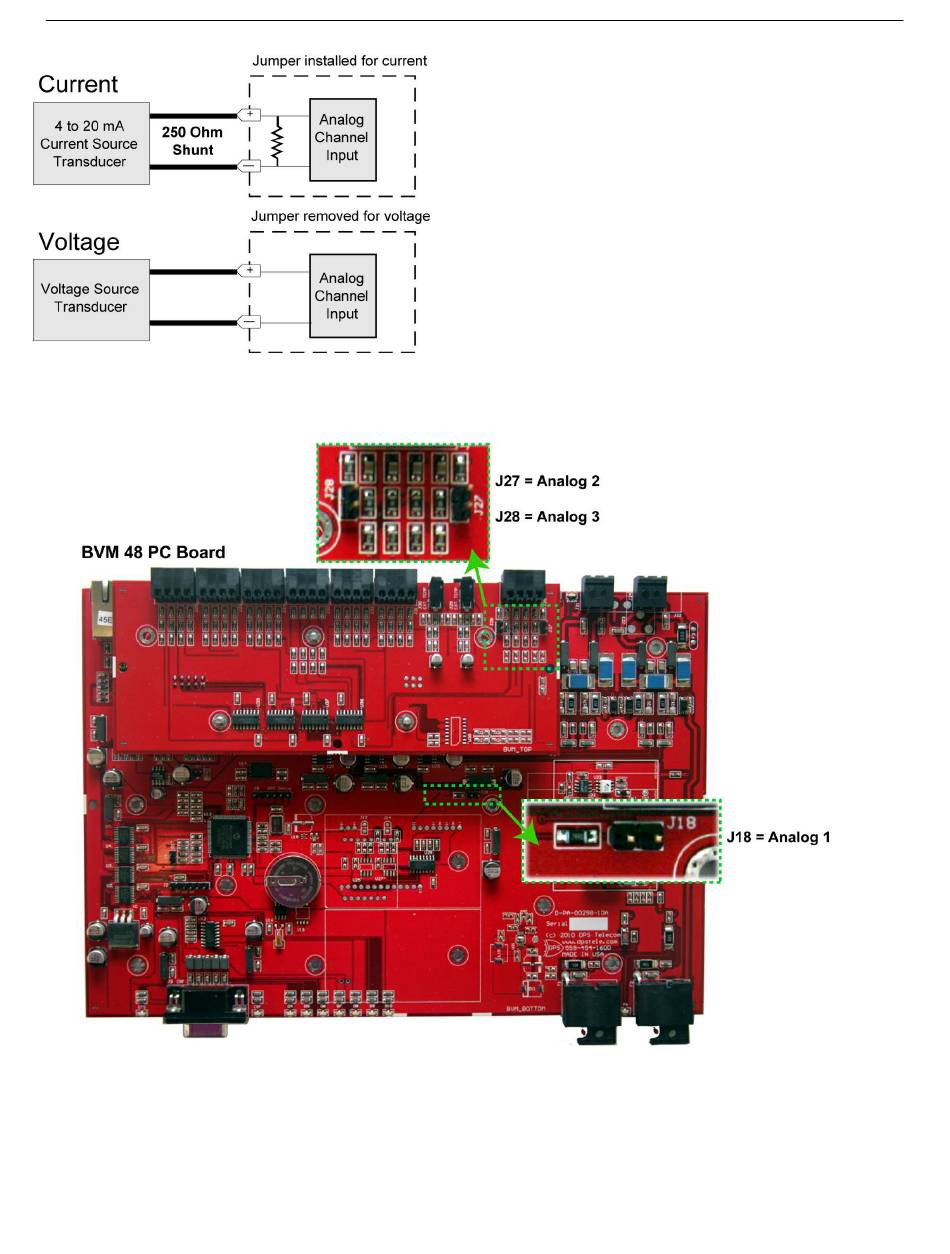

6. High/Low Ref: Example, this temperature sensor
is a current loop sensor that outputs 4-20mA. The
BVM uses a 250 Ohm resistor to convert current to
voltage measurement. Ohms law says:
4mA X 250 Ohms = (0.004 X 250) = 1VDC
20mA X 250 Ohms = (0.020 X 250) = 5VDC
The documentation that came with this sensor
explains how 4 - 20 mA translates temperature. In
this case:
4mA (or 1VDC) = 32º F
20mA (or 5VDC) = 131º F
Therefore, my reference values are 1 = 32 and 5 =
131.
Fig. 10.21
AND
AND
