OVERVIEW
1.0
This board interface is used for the connection between C82, C76, M16D and
Loop Steppers
DRIVE.
FEATURES
2.0
• RJ45 Driver Input Connector
• Select Jumper for Hard Enable or Soft Enable.
• Alarm terminal
• Select jumper for signal differentials.
• Select Jumper active Low and active High
•
Adjustable resistor to allow adjusting the fault sensibility

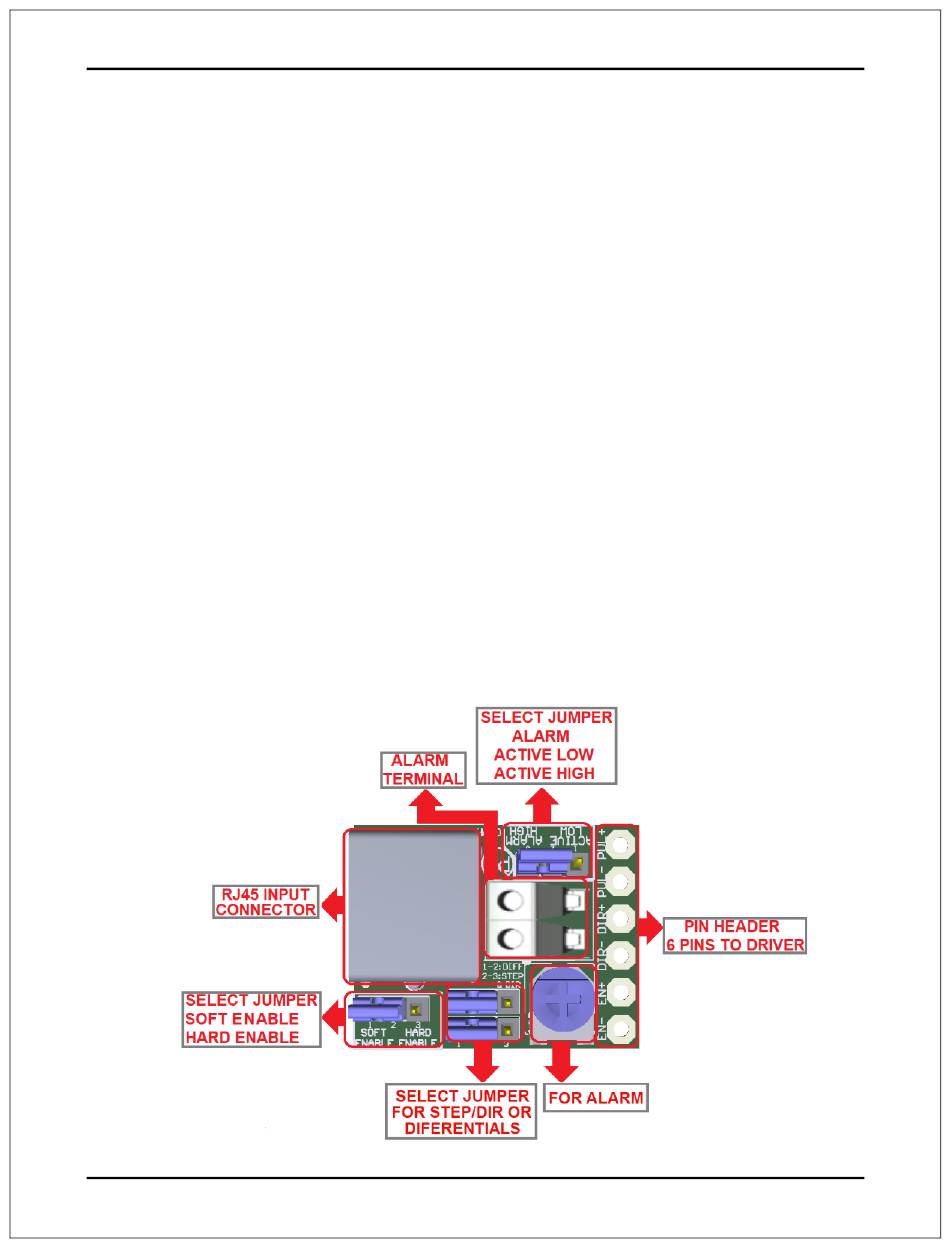

BOARD DESCRIPTION
3.0
User's Manual
Closed
Page 1
