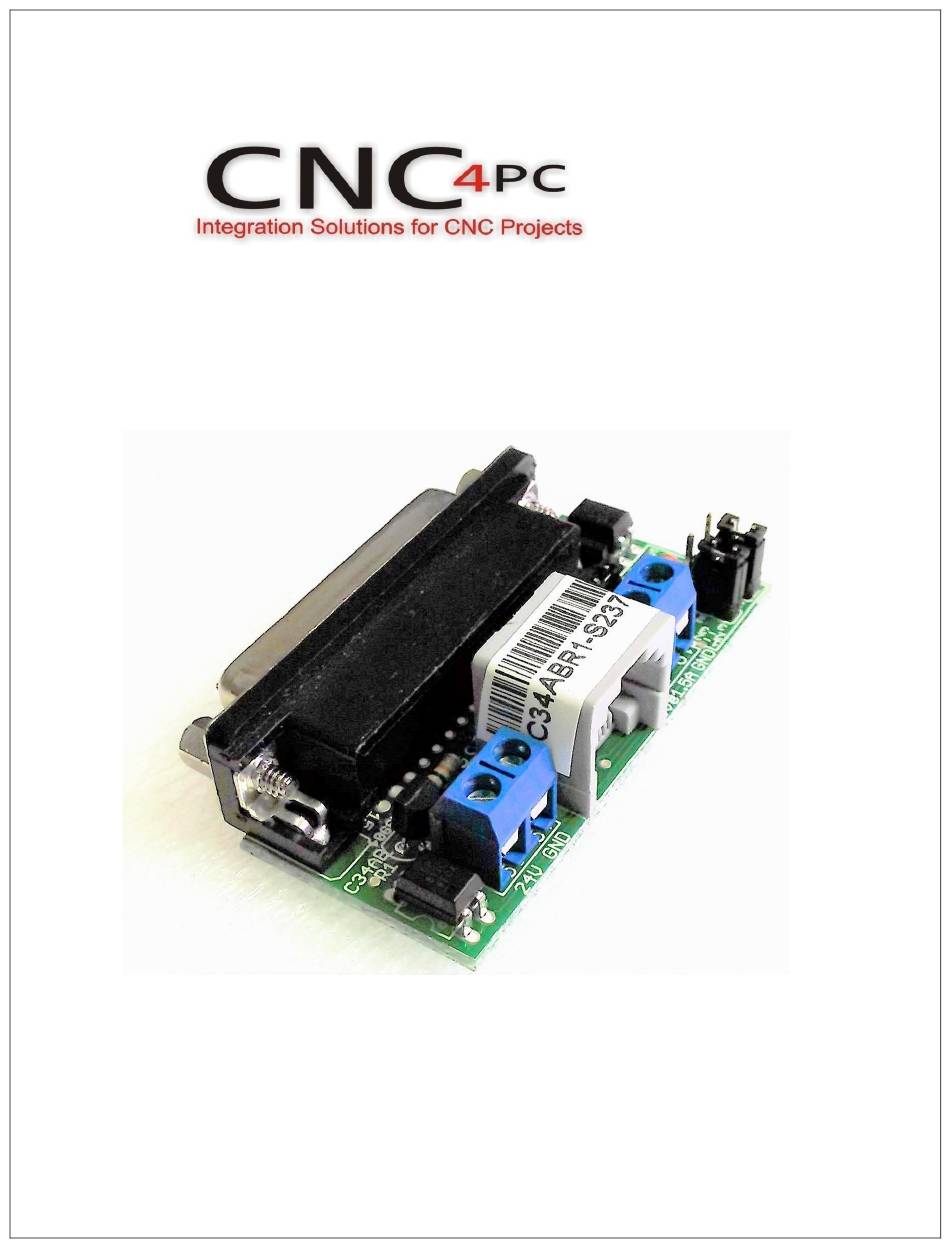

- Page 1 USER’S MANUAL VER.1.1 C34AB BOARD Rev. 1 JANUARY, 2022...
-
Page 2: Table Of Contents
USER'S MANUAL TABLE OF CONTENTS Page # Contents OVERVIEW ........................1 FEATURES ........................1 BOARD DESCRIPTION ....................1 JUMPER TO SELECT THE ENABLE ................2 JUMPER TO SELECT THE DIFFERENTIAL OUTPUT ........... 2 WIRING SAMPLE ......................3 Diagram of connection with output signals not Differentials and C32 ..... 3 Diagram of connection with output signals Differentials, C74 and C32. -
Page 3: Overview
OVERVIEW This interfaces board is used for the connection between C35, C32, C62 or C74 and the ALLEN BRADLY ULTRA 3000 SERVO DRIVE. FEATURES • HDM44D connector for Connection of Driver. • RJ45 Connector for Axis. • Select Jumper for Hard Enable or Soft Enable. •... -
Page 4: Jumper To Select The Enable
JUMPER TO SELECT THE ENABLE Use Software Enable to keep the driver active only while the system is active. Set of jumper as shown in the image. SOFT ENABLE Use Hardware Enable to keep the driver enabled all the time. Set of jumper as shown in the image. -
Page 5: Wiring Sample
If not use the differential signal for outputs of STEP and DIR, set jumper as shown in the image NOT DIFFENTIAL WIRING SAMPLE Diagram of connection with output signals not Differentials and C32. User’s Manual Page 3... -
Page 6: Diagram Of Connection With Output Signals Differentials, C74 And C32
Diagram of connection with output signals Differentials, C74 and C32. Diagram of connection with output signals not differentials and C62. User’s Manual Page 4... -
Page 7: Diagram Of Connection With Output Signals Differential, C74 And C62
Note: This wiring is just to illustrate a sample product application. Specific wiring may vary from system to system. It is the user’s responsibility to implement it correctly. PINOUT ULTRA 3000 AC SERVO DRIVE AND C34AB CONNECTION HDM44D PIN FUNCTION... -
Page 8: Dimension
DIMENSION All dimensions are in Millimeters. DISCLAIMER Use caution. CNC machines can be dangerous machines. Neither DUNCAN USA, LLC nor Arturo Duncan are liable for any accidents resulting from the improper use of these devices. This board is not a fail-safe device and it should not be used in life support systems or in other devices where its failure or possible erratic operation could cause property damage, bodily injury or loss of life.
