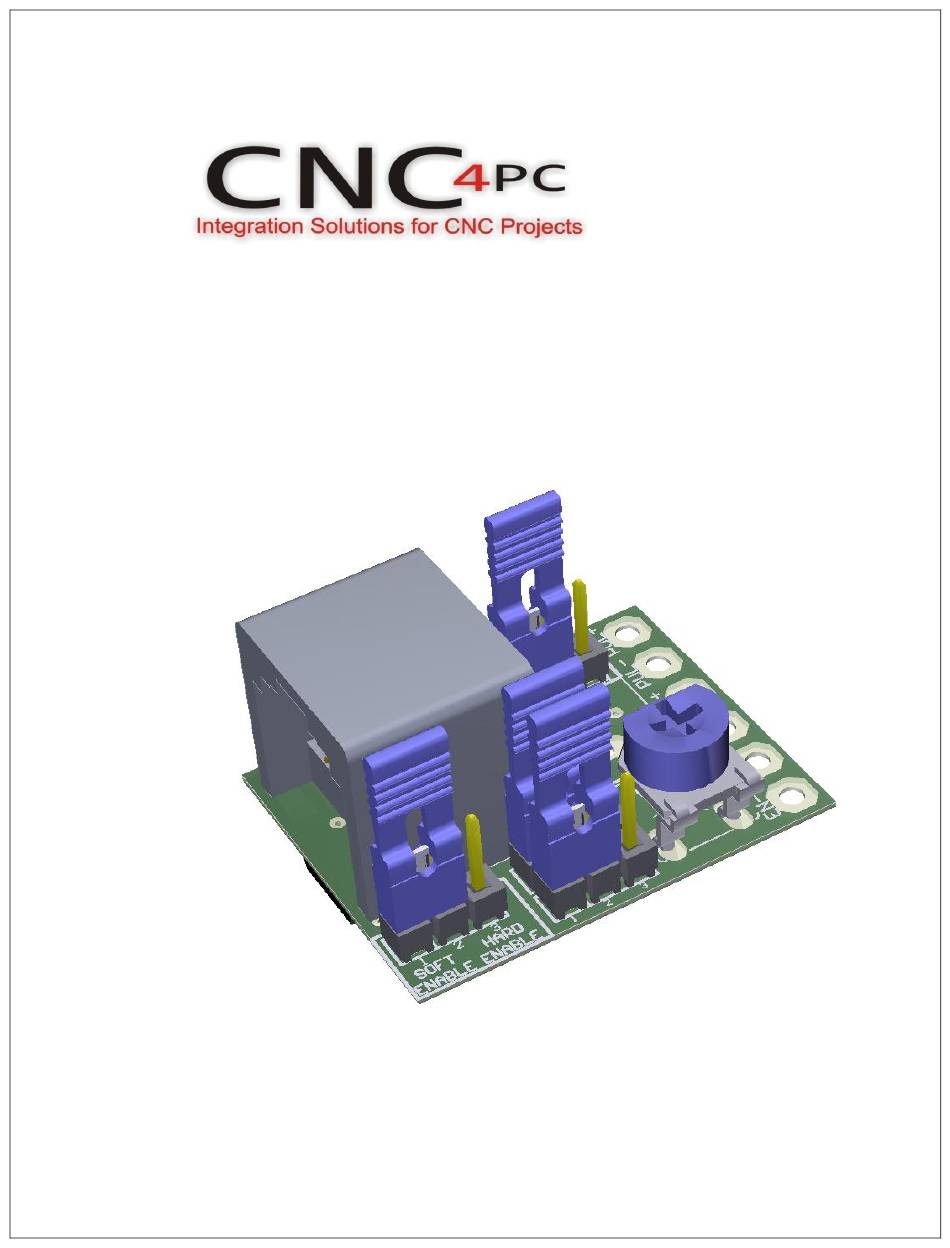

- Page 1 USER’S MANUAL VER. 1 C34HS2 BOARD Rev. 1 OCTOBER, 2020...
- Page 2 USER'S MANUAL TABLE OF CONTENTS Page # Contents OVERVIEW ........................1 FEATURES ........................1 BOARD DESCRIPTION ....................1 JUMPER TO SELECT THE ENABLE ................2 ALARM TERMINAL ......................4 WIRING SAMPLE ......................4 PINOUT ........................... 5 DIMENSIONS ........................6 User’s Manual Page i...

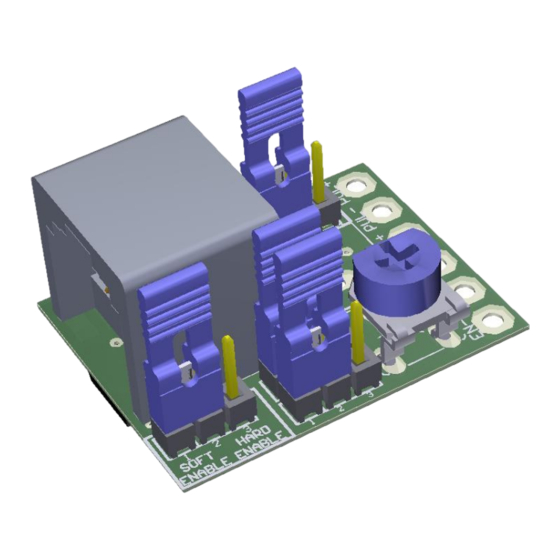

- Page 3 OVERVIEW This board interface is used for the connection between C82, C76, M16D and Closed Loop Steppers DRIVE. FEATURES • RJ45 Driver Input Connector • Select Jumper for Hard Enable or Soft Enable. • Alarm terminal • Select jumper for signal differentials. •...
- Page 4 JUMPER TO SELECT THE ENABLE Use Software Enable to keep the driver active only while the system is active. Set of jumpers as shown in the image. SOFT ENABLE Use Hardware Enable to keep the driver enabled all the time. Set of jumpers as shown in the image.
- Page 5 If not use the differential signal for STEP & DIR, set jumper as show in the image. STEP & DIR JUMPER TO SELECT ACTIVE LOW AND ACTIVE HIGH 1-2: ACTIVE LOW 2-3: ACTIVE HIGH User’s Manual Page 3...
- Page 6 ALARM TERMINAL WIRING SAMPLE User’s Manual Page 4...
- Page 7 PINOUT C34HS CONNECTOR RJ45 RJ45 Pins Function NOT USED PUL+ NOT USED DIR+ NOT USED 8 (5V) User’s Manual Page 5...
- Page 8 DIMENSIONS All dimensions are in Millimeters. DISCLAIMER Use caution. CNC machines can be dangerous machines. Neither DUNCAN USA, LLC nor Arturo Duncan are liable for any accidents resulting from the improper use of these devices. This product is not a fail-safe device and it should not be used in life support systems or in other devices where its failure or possible erratic operation could cause property damage, bodily injury or loss of life.
