JUMPER TO SELECT THE ENABLE

4.0
Use Software Enable to keep the driver active only while the system is active.

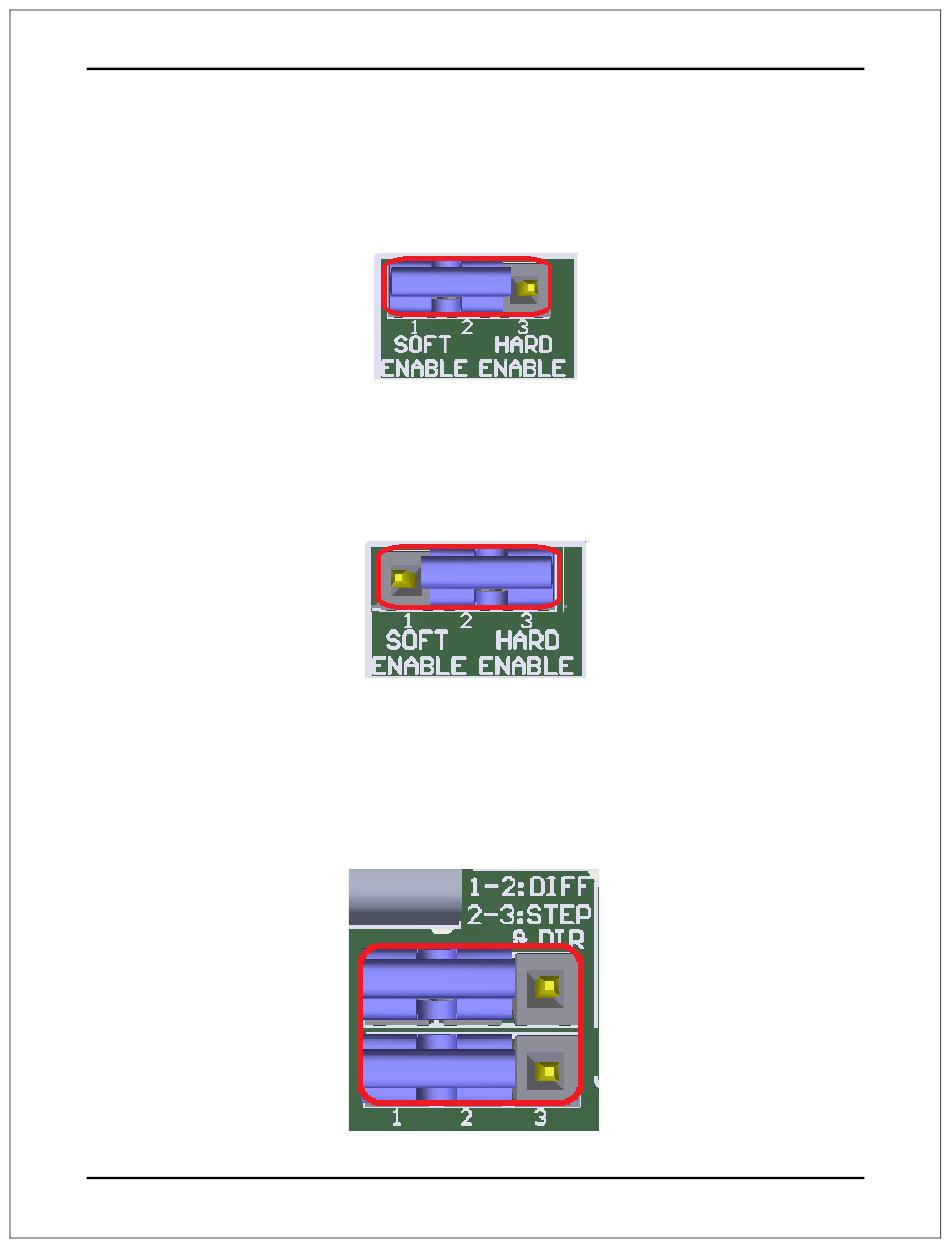

Set of jumpers as shown in the image.
SOFT ENABLE
Use Hardware Enable to keep the driver enabled all the time.
Set of jumpers as shown in the image.
HARD ENABLE
JUMPER TO SELECT THE DIFFERENTIAL
If working the inputs of STEP and DIR as differentials signals, you have to use the board, set
jumper as shown in the image.
DIFERENTIAL
