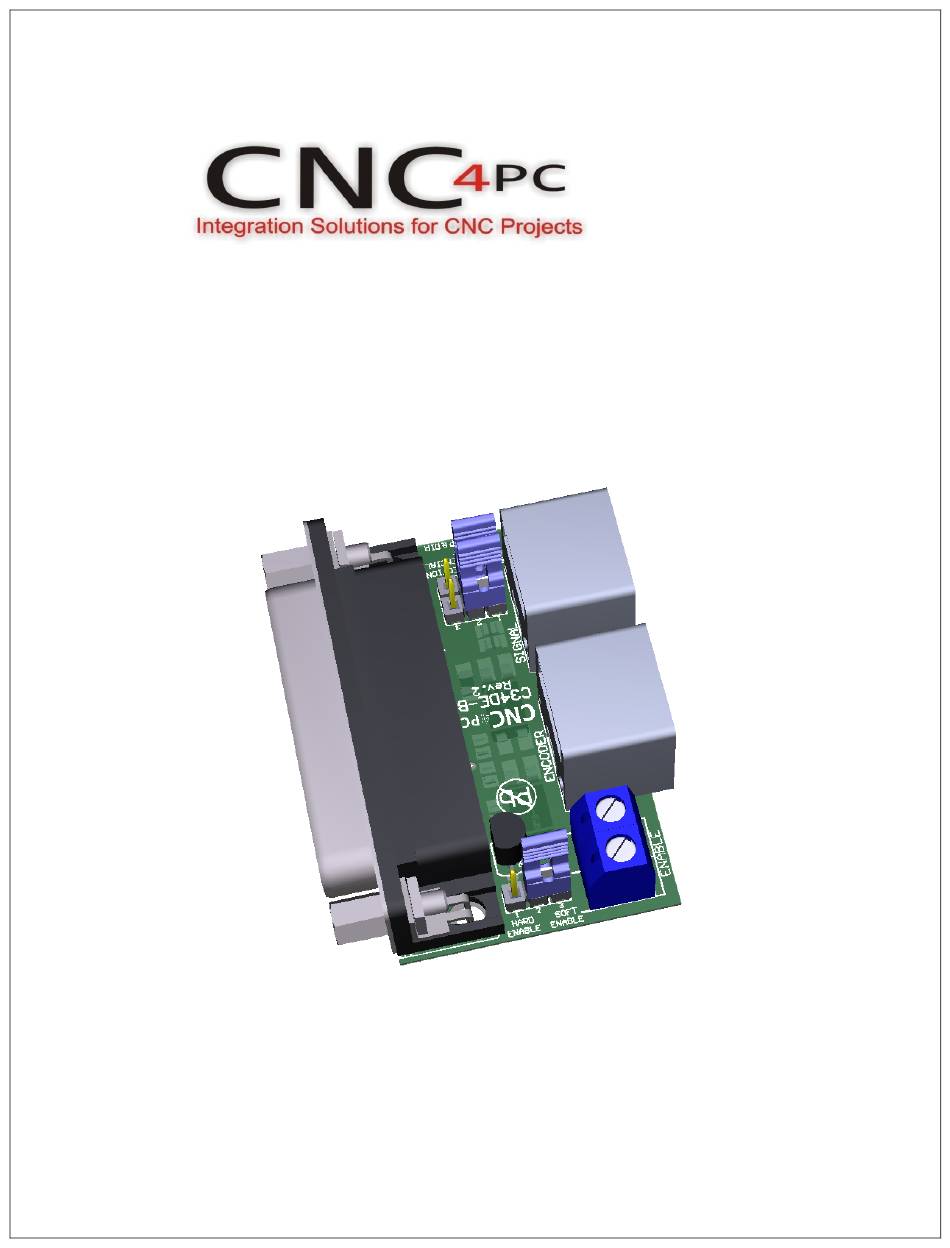

- Page 1 USER’S MANUAL VER. 1 C34DE-B BOARD Rev. 3 OCTOBER 2020...
-
Page 2: Table Of Contents
USER'S MANUAL TABLE OF CONTENTS Page # Contents OVERVIEW ........................1 FEATURES ........................1 BOARD DESCRIPTION ....................2 JUMPER TO SELECT THE ENABLE ................2 WIRING SAMPLE ......................4 Diagram of connection with input signals Step & Dir and C76......4 Diagram of connection with input signals Differentials C74 and C76. -
Page 3: Overview

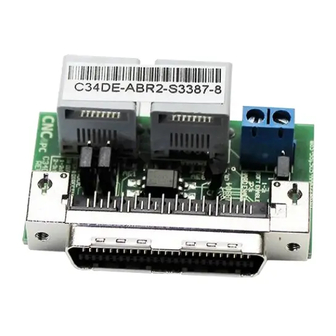

OVERVIEW This board interface is used for the connection between C82, C76, M16D, C35S, C62 and ASDA – B2 AC SERVO DRIVE FEATURES • DB25 connector for Connection of Driver. • RJ45 Connector for Axis. • Encoder Output. *NEW • Select Jumper for Hard Enable or Soft Enable. •... -
Page 4: Board Description
BOARD DESCRIPTION JUMPER TO SELECT THE ENABLE Use Software Enable to keep the driver active only while the system is active. Set of jumpers as shown in the image. SOFT ENABLE Use Hardware Enable to keep the driver enabled all the time. Set of jumpers as shown in the image. - Page 5 HARD ENABLE JUMPER TO SELECT THE DIFFERENTIAL If working the inputs of STEP and DIR as differentials signals, you have to use the board, set jumper as shown in the image. DIFERENTIAL. If not use the differential signal for STEP & DIR, set jumper as show in the image. STEP &...
-
Page 6: Wiring Sample
WIRING SAMPLE Diagram of connection with input signals Step & Dir and C76. Diagram of connection with input signals Differentials C74 and C76. User’s Manual Page 4... -
Page 7: Pinout
PINOUT ASDA AC SERVO DRIVE AND C34DE - B CONNECTION HDM44D PIN FUNCTION RJ45 PIN ALARM Internally routed COM+ Internally routed 24VDC FROM DRIVE Internally routed COM- Internally routed SERVO ON DIR- Internally routed DIR+ STEP- Internally routed STEP+ COMPATIBLE DRIVER ASD –... -
Page 8: Dimension
DIMENSION All dimensions are in Millimeters. DISCLAIMER Use caution. CNC machines can be dangerous machines. Neither DUNCAN USA, LLC nor Arturo Duncan are liable for any accidents resulting from the improper use of these devices. This product is not a fail-safe device and it should not be used in life support systems or in other devices where its failure or possible erratic operation could cause property damage, bodily injury or loss of life.
