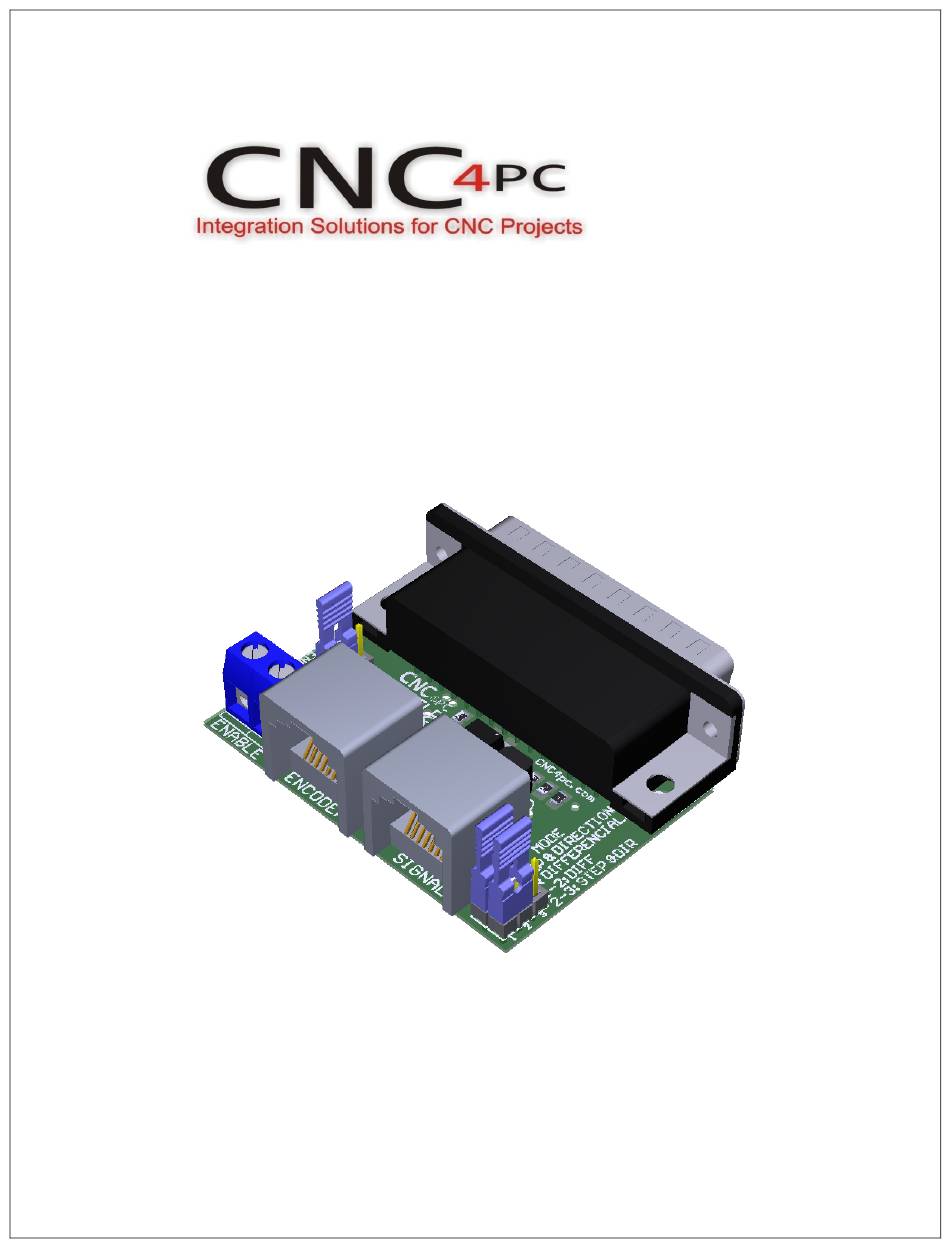

- Page 1 USER’S MANUAL C34ELP BOARD Rev. 1 MARCH 2020...
- Page 2 USER'S MANUAL TABLE OF CONTENTS Contents Page # OVERVIEW ........................1 FEATURES ........................1 BOARD DESCRIPTION ....................1 JUMPER TO SELECT THE ENABLE ................2 JUMPER TO SELECT THE DIFFERENTIAL INPUT ............2 WIRING SAMPLE ......................3 PINOUT ........................... 5 DIMENSION ........................

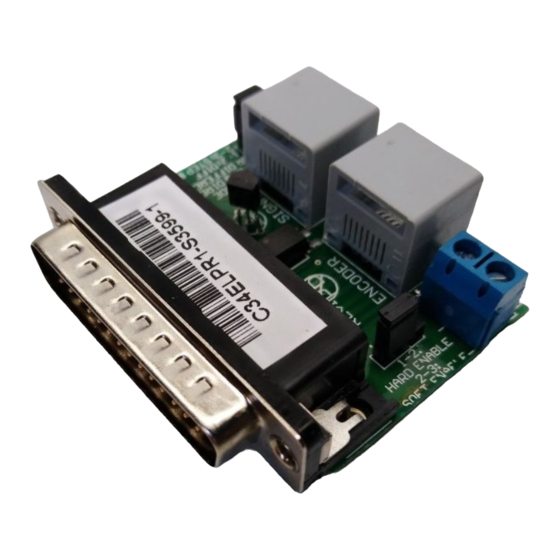

- Page 3 OVERVIEW This interfaces board is used for the connection between C35S, C62, C76, C82 or M16D and the Leadshine ELP AC SERVO DRIVE. FEATURES • HDM44D Connector for Connecting Driver. • RJ45 Connector for Axis. • Encoder Output. • Select Jumper for Hardware Enable or Software Enable. •...
- Page 4 JUMPER TO SELECT THE ENABLE Use Software Enable to keep the driver active only while the system is active. SOFT ENABLE Use Hardware Enable to keep the driver enabled all the time. HARD ENABLE JUMPER TO SELECT THE DIFFERENTIAL INPUT If working the inputs of STEP and DIR as differentials signals, you have to use the board C74, set jumper as shown in the image.
- Page 5 WIRING SAMPLE Diagram of connection with input signals Step & Dir C35S, C62, C76, C82 and M16D. User’s Manual Page 3...
- Page 6 Diagram of connection with input signals Differentials, C74 and C35S, C62, C76, C82, M16D. User’s Manual Page 4...
- Page 7 STEP- STEP+ DIR- ALARM DIR+ Note: * Servo ENABLE and Alarm signals are related to the RJ45 pin 5 of the C34ELP board, but they are not connected directly to this pin. RJ45 FOR ENCODER HDM44D RJ45 PIN FUNTION User’s Manual...
- Page 8 DIMENSION All dimensions are in Millimeters. DISCLAIMER Use caution. CNC machines can be dangerous machines. Neither DUNCAN USA, LLC nor Arturo Duncan are liable for any accidents resulting from the improper use of these devices. This board is not a fail-safe device and it should not be used in life support systems or in other devices where its failure or possible erratic operation could cause property damage, bodily injury or loss of life.
