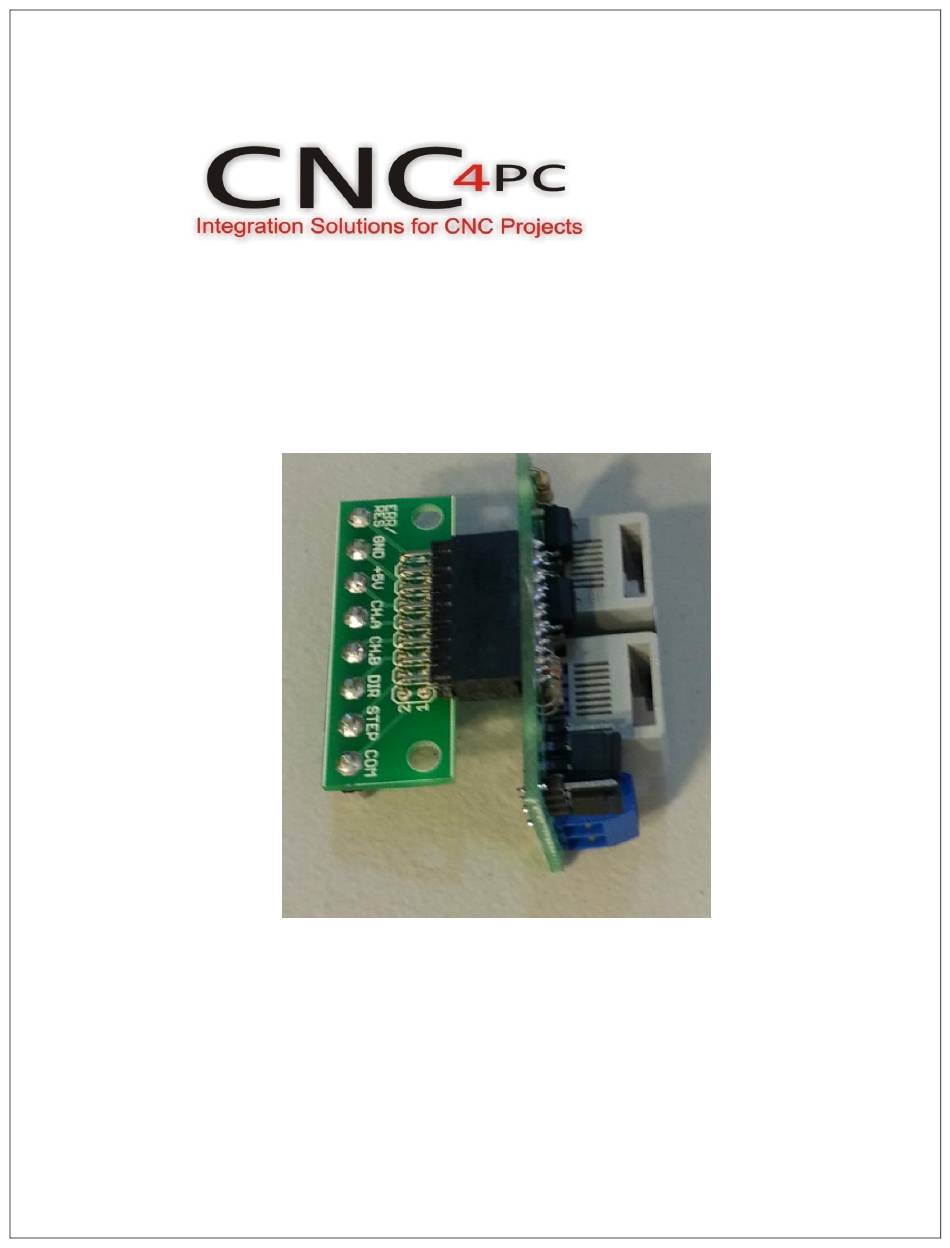

  • Page 1 USER’S MANUAL VER. 2 C34G320X BOARD Rev. 6 JUNE 2018...
  • Page 2 USER'S MANUAL TABLE OF CONTENTS Contents page# OVERVIEW ........................1 FEATURES ........................1 BOARD DESCRIPTION ....................1 JUMPER TO SELECT (REQ OR NOT REQ) ..............2 JUMPER TO SELECT THE ENABLE ................3 PINOUT ........................... 4 DIMENSION ........................5 User’s Manual Page i...

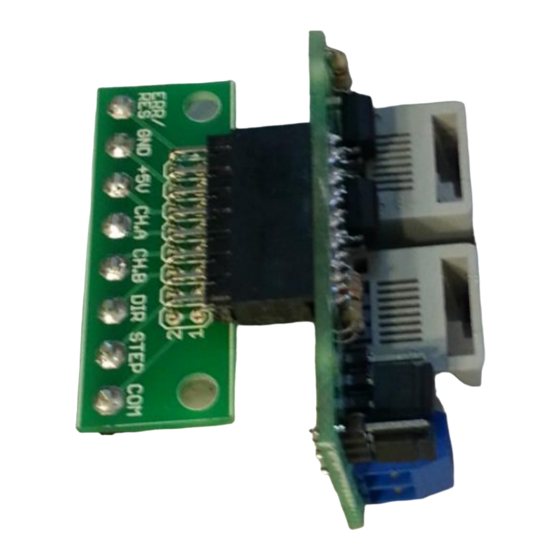

  • Page 3 OVERVIEW This board simplifies connecting Gecko G320/340, and G320X Stepper Drivers to RJ45 connector boards, such as the C32, C62, C76, M16 and C82 boards. As just a regular twisted pair RJ45 cable needs to be used. FEATURES • Pin Header of 8 pins for Connection of Driver. •...
  • Page 4 JUMPER TO SELECT (REQ OR NOT REQ) If using an encoder that demands less of 50mA and external power supply is not required, set jumper to the not required position. NOT REQ Otherwise, add and external power supply and set the jumper to REQUIRED. User’s Manual Page 2...
  • Page 5 Hardware Enable will keep the driver enabled all the time. HARD ENABLE WIRING SAMPLE http://cnc4pc.com/Tech_Docs/WS_37.pdf Note: This wiring is just to illustrate a sample product application. Specific wiring may vary from system to system. It is the user’s responsibility to implement it correctly.
  • Page 6 PINOUT STEP and DIR RJ45 PIN RJ45 FUNCTION NOT USED STEP NOT USED ERR/RES NOT USED ENCODER RJ45 PIN RJ45 FUNCTION NOT USED NOT USED NOT USED NOT USED User’s Manual Page 4...
  • Page 7 DIMENSION All dimensions are in Millimeters. DISCLAIMER Use caution. CNC machines can be dangerous machines. Neither DUNCAN USA, LLC nor Arturo Duncan are liable for any accidents resulting from the improper use of these devices. This board is not a fail-safe device and it should not be used in life support systems or in other devices where its failure or possible erratic operation could cause property damage, bodily injury or loss of life.
