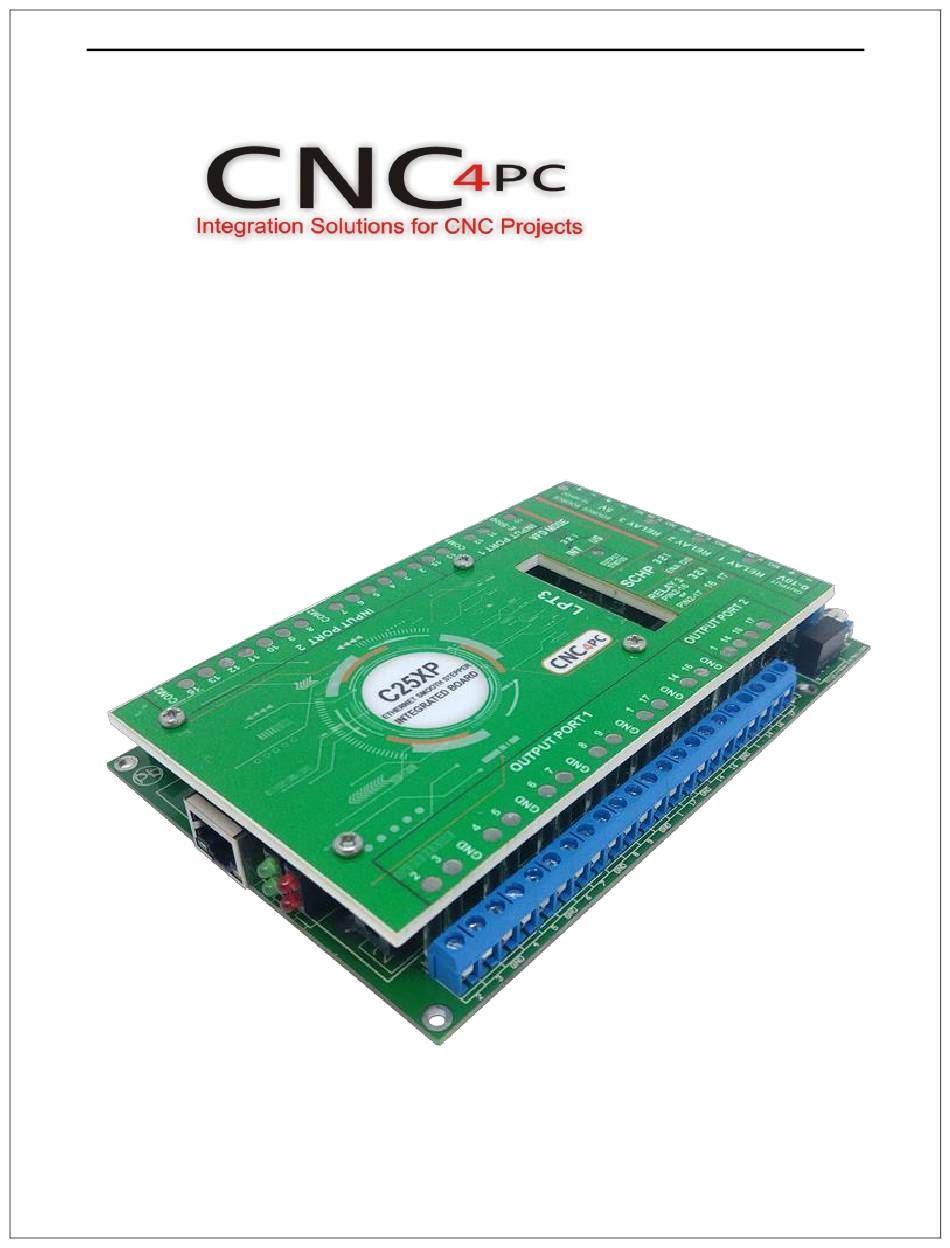

- Page 1 USER’S MANUAL VER.1.2 C25XP- MULTIFUNCTION CNC BOARD Rev. 3 MARCH 2021 ___________________________________________________________________________ User’s Manual Page i...
-
Page 2: Table Of Contents
USER'S MANUAL TABLE OF CONTENTS Contents Page # FEATURES ........................1 I/O SPECIFICATIONS ..................... 2 BOARD DESCRIPTION ....................3 POWER TERMINALS AND CONFIGURATION .............. 4 Power terminal ......................4 Source Output 5VDC ....................4 Source Output 10-30VDC ..................5 PORT_3 ESS ........................5 E-STOP TERMINAL (24V) .................... -
Page 3: Features
____________________________________________________________________________ FEATURES • Can ships with the Ethernet Smoot Stepper Motion Controller installed when purchased as a bundle. • Built-in PWM-Based Speed Control and Two Built-in Electromechanical Relays with NO and NC positions for spindle control. • The system monitors: - E-Stop - Safety Charge Pump. -
Page 4: I/O Specifications
____________________________________________________________________________ I/O SPECIFICATIONS PINS PORT1 PORT2 PORT3 TOTAL INPUT OUTPUT TOTAL OPTOISOLATED DIGITAL INPUT TTL SPECIFICATIONS On-state voltage range 5 to 24VDC Maximum off-state voltage 0.8V Typical signal delay 2.8uS DIGITAL OUTPUT TTL SPECIFICATIONS Maximum output voltage 5VDC Maximum output current 24mA Maximum off-state voltage 0.44 V... -
Page 5: Board Description
____________________________________________________________________________ BOARD DESCRIPTION ___________________________________________________________________________ User’s Manual Page 3... -
Page 6: Power Terminals And Configuration
____________________________________________________________________________ POWER TERMINALS AND CONFIGURATION Power terminal The board can typically be powered with regulated +24vdc, but it can also work with anything between +10VDC and +30VDC. The board itself will draw about 1 Amp, but we recommend using a 2A and up so it can power external devices. WARNING Overvoltage or reverse-polarity power applied to these terminals can cause damage to the board, and/or the power source. -
Page 7: Source Output 10-30Vdc
____________________________________________________________________________ Source Output 10-30VDC The same voltage that is used to power the board can be used to power external devices. PORT_3 ESS PORT_3 ESS Function OUTPUT IN/OUT IN/OUT IN/OUT IN/OUT IN/OUT IN/OUT IN/OUT IN/OUT P_10 INPUT P_11 INPUT P_12 INPUT P_13 INPUT... -
Page 8: E-Stop Terminal (24V)
____________________________________________________________________________ E-STOP TERMINAL (24V) Connect an E-STOP push button as is shown in the below images. Pin 10 port 1 is used for E-Stop. Since this board controls the enable line, and the enable line is the one responsible for notifying the controller of the e-stop condition, the user does not have a direct access to the pin itself, just to the e-stop terminal on the board. -
Page 9: Configuration Jumper Mode Us Or Int
DC servos or to handle servo brakes. Or enable/disable any other feature that is associated to the system been active. Configuration jumper mode US or INT For the Variable speed control go to http://cnc4pc.com/Tech_Docs/VARIABLE_SPEED_CONTROL.pdf For Configure the control software go to http://cnc4pc.com/Tech_Docs/CONFIGURATION_OF_CONTROL_SOFWARE.pdf For Replacing Potentiometer go to http://cnc4pc.com/Tech_Docs/Replacing%20a%20Potentiometer.pdf... -
Page 10: General Purpose Output Terminals
____________________________________________________________________________ GENERAL PURPOSE OUTPUT TERMINALS Open Collector Outputs Sample Wiring LEDs ___________________________________________________________________________ User’s Manual Page 8... -
Page 11: Wiring Sample Input Port_1 And Port_2
____________________________________________________________________________ 10.0 WIRING SAMPLE INPUT PORT_1 AND PORT_2 ___________________________________________________________________________ User’s Manual Page 9... -
Page 12: Wiring Sample Axi
____________________________________________________________________________ 11.0 AXIS WIRING SAMPLE ___________________________________________________________________________ User’s Manual Page 10... -
Page 13: Wiring Sample Vfd
____________________________________________________________________________ 12.0 WIRING SAMPLE VFD ___________________________________________________________________________ User’s Manual Page 11... -
Page 14: Dimensions
____________________________________________________________________________ 13.0 DIMENSIONS All dimensions are in Millimeters. Disclaimer: Use caution. CNC machines can be dangerous machines. Neither DUNCAN USA, LLC nor Arturo Duncan are liable for any accidents resulting from the improper use of these devices. This product is not a fail-safe device and it should not be used in life support systems or in other devices where its failure or possible erratic operation could cause property damage, bodily injury or loss of life.
